Product Description

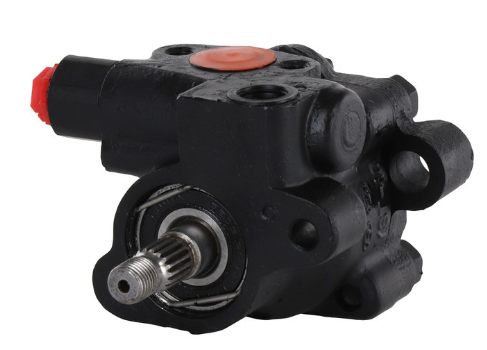

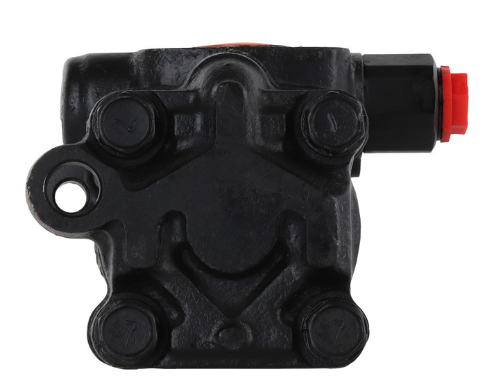

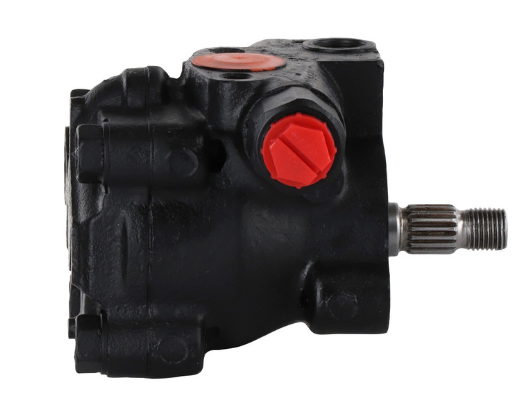

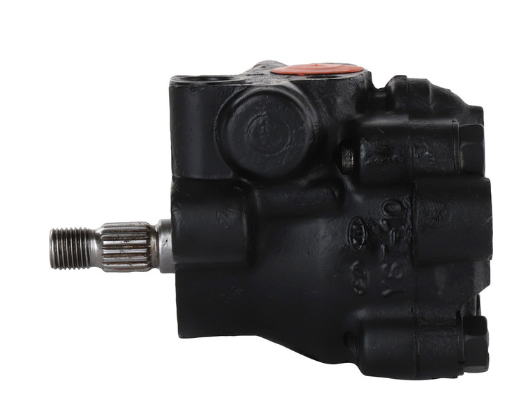

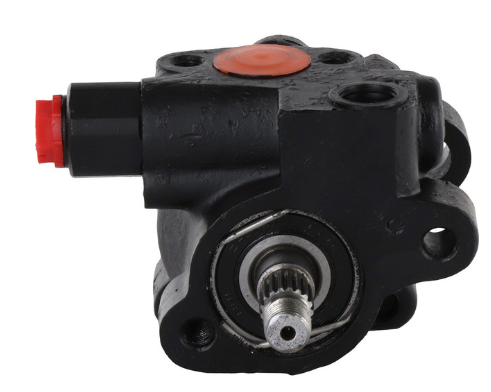

The CARDONE 21-5473 Remanufactured Power Steering Pump is engineered to restore original steering performance while exceeding OE durability requirements. Each OE design is carefully reviewed for opportunities to improve reliability, and enhancements are integrated where beneficial to ensure superior long-term performance.
Critical internal components—including campacs and spool valves—are triple-tested to ensure consistent function and dependable operation. Every pump is assembled using 100% new O-rings and premium HNBR seals, providing exceptional resistance to heat-related degradation and preventing fluid leaks. Precision-surfaced shafts eliminate premature seal wear, further extending the life of the pump.
Each unit undergoes a complete hydraulic efficiency test to validate proper pressure, bypass operation, fluid flow, valve response, steering effort, and noise output. As an OE-remanufactured component, it guarantees a perfect vehicle fit and straightforward installation.
Through CARDONE’s environmentally friendly remanufacturing process, material consumption and energy usage are reduced by up to 80%, supporting sustainable production.
Key Features
-
Triple-tested internal components, including campacs and spool valves, for maximum reliability
-

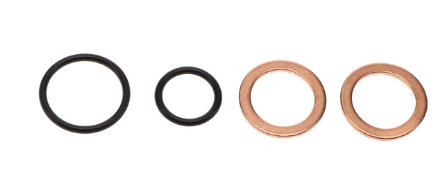

Constructed with 100% new O-rings and premium-grade HNBR seals that resist high-temperature deterioration
-
Precision-machined shafts reduce early seal wear and extend pump service life
-
Fully tested and calibrated pressure relief valves
-
Computer-tested for pressure, flow, bypass function, steering effort, and noise output
-
OE remanufactured to ensure proper fit and trouble-free installation
-
Eco-friendly production reduces raw material consumption and energy usage
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron/Aluminum |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.562 IN (14.2748 MM) |
| Inlet Quantity |
1 |
| Mounting Hardware Included |
No |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Bolt-On |
| Pulley Belt Type |
V-Belt |
| Pulley Included |
No |
| Remote Reservoir |
Yes |
| Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Shaft Type |
Splined |
| Type |
Hydraulic |
OE Cross References
Dodge:
571001E000
Hyundai:
571001E000
Kia:
571001G000
Vehicle Compatibility
| Year Range |
Make |
Model |
Engine |
Notes |
| 2006–2009 |
Dodge |
Attitude |
1.6L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
| 2006–2009 |
Hyundai |
Accent |
1.6L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
| 2010 |
Kia |
Rio |
1.6L |
Before 12/16/2009; Reservoir Not Included; 16 mm Sensor Port; Use OE Fluid; Install Filter; Flush System |
| 2006–2009, 2011 |
Kia |
Rio |
1.6L |
Reservoir Not Included; 16 mm Sensor Port; Use OE Fluid; Install Filter; Flush System |
| 2010 |
Kia |
Rio5 |
1.6L |
Before 12/16/2009; Reservoir Not Included; 16 mm Sensor Port; Use OE Fluid; Install Filter; Flush System |
| 2006–2009, 2011 |
Kia |
Rio5 |
1.6L |
Reservoir Not Included; 16 mm Sensor Port; Use OE Fluid; Install Filter; Flush System |
Installation & Warranty Notes
-
Always use OE-specified power steering fluid—incorrect fluid may cause noise, reduced performance, or pump failure
-
A complete system flush is recommended prior to installation
-
Install an in-line power steering filter to extend pump life and maintain warranty coverage
-
Inspect hoses, reservoir, and lines for contamination or wear before installation
-
Do not reuse old or contaminated fluid
