Product Description

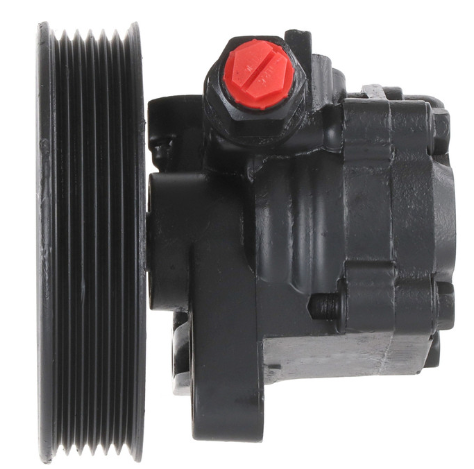

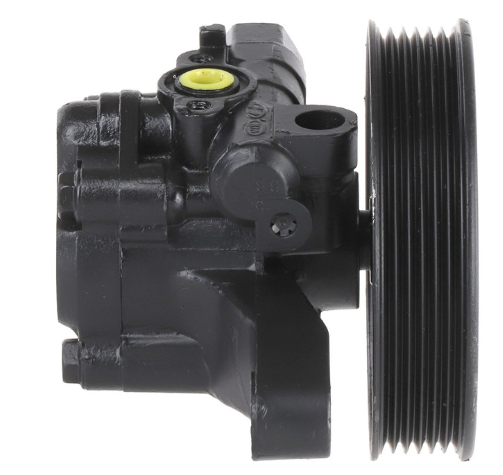

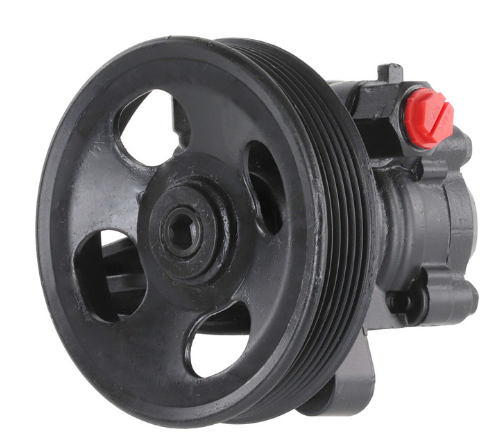

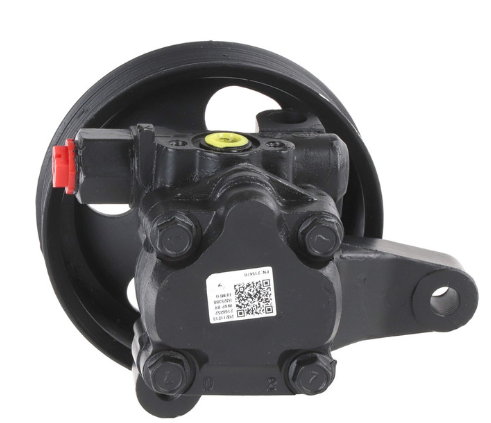

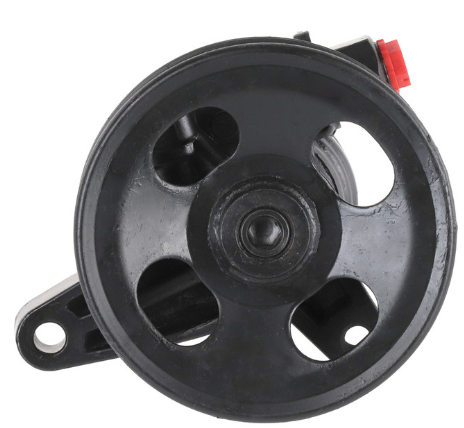

The CARDONE 21-5470 Remanufactured Power Steering Pump is designed to restore precise steering performance while exceeding OE durability standards. Each original design is thoroughly evaluated for potential enhancement, and improvements are incorporated where beneficial to increase the longevity and reliability of the unit.
Critical components—including campacs and spool valves—are triple-tested to ensure optimal operation under real-world conditions. The pump is assembled using 100% new O-rings and premium-grade HNBR seals, providing exceptional resistance to heat, fluid deterioration, and leakage. Precision-surfaced shafts prevent premature seal wear, extending pump service life.
Each unit undergoes a comprehensive hydraulic efficiency test to validate pressure output, bypass operation, fluid flow, valve response, steering effort, and noise characteristics. As a remanufactured OE component, it guarantees an exact vehicle fit for simple, trouble-free installation.
CARDONE’s eco-friendly remanufacturing process reduces material waste and energy consumption by up to 80%, delivering both performance and sustainability.
Key Features
-
Triple-tested campacs, spool valves, and internal components for maximum reliability
-

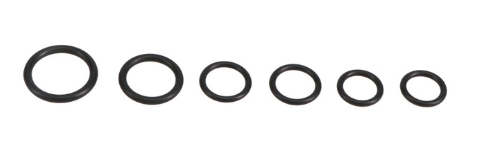

Built with 100% new O-rings and premium HNBR seals that resist high-temperature breakdown
-
Precision-machined shafts prevent early seal wear and extend pump longevity
-
Relief valves are 100% calibrated and tested
-
Computer-tested for pressure, flow, valve function, steering effort, and noise output
-
OE remanufactured for perfect fitment and dependable installation
-
Environmentally friendly remanufacturing reduces energy and raw material usage
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron/Aluminum |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.398 IN (10.1092 MM) |
| Inlet Quantity |
1 |
| Mounting Hardware Included |
No |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
Yes |
| Remote Reservoir |
Yes |
| Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Kia:
571003F210
Hyundai:
571003K100, 571003L100
Vehicle Compatibility
| Year Range |
Make |
Model |
Engine |
Notes |
| 2007–2011 |
Hyundai |
Azera |
3.3L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
| 2006–2011 |
Hyundai |
Azera |
3.8L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
| 2006 |
Hyundai |
Sonata |
3.3L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
| 2007–2009 |
Kia |
Amanti |
3.8L |
Reservoir Not Included; Use OE Fluid; Install Filter; Flush System; In-Line Filter Available |
Installation & Warranty Notes
-
Use only OE-specified power steering fluid to avoid noise, performance issues, or premature failure
-
A complete system flush is strongly recommended prior to installation
-
Install an in-line power steering filter to protect pump longevity and warranty
-
Inspect hoses, reservoir, and lines for contamination or deterioration
-
Avoid reusing contaminated or degraded fluid
