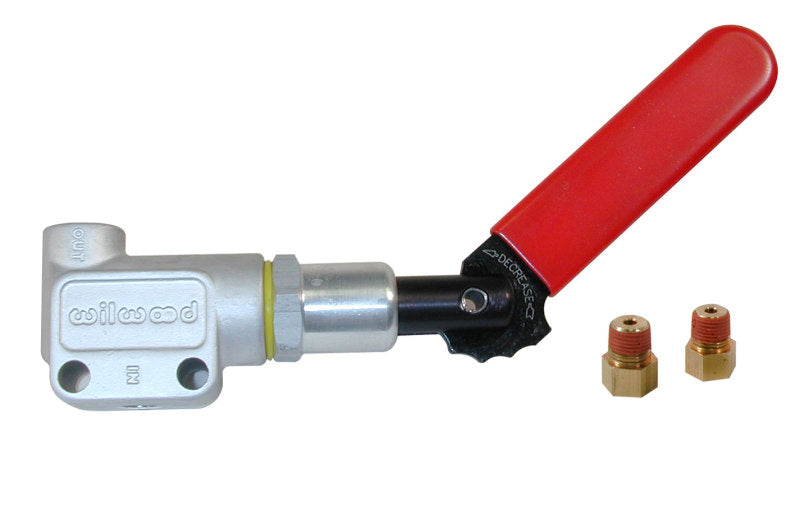

The Wilwood Proportioning Valve (Part No. WIL260-8420) is engineered for precise brake bias control in high-performance automotive applications. Featuring a compact forged billet design, this valve offers durability and strength while maintaining a lightweight profile, weighing only about 6 ounces with the lever. Its adjustable pressure range from 100 to 1000 PSI allows for tailored brake system tuning, ensuring optimal performance under various driving conditions.
One of the key features of this proportioning valve is its six preset adjustment points, which can be quickly selected by moving a click-activated lever. This design enables racers to swiftly modify brake bias during a race, providing critical control without sacrificing safety or response time. The lever's positive click feedback ensures each position is securely engaged, preventing accidental adjustments during intense driving scenarios.
Constructed with high-quality components, the valve includes inlet and outlet ports with 1/8-27 NPT threads and is supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings, compatible with most domestic 3/16-inch hard brake lines. The valve's side mounting holes are spaced 1 inch apart, facilitating easy installation in various vehicle configurations. Whether you're upgrading a race car or customizing a high-performance street vehicle, this valve provides reliable pressure regulation and quick adjustment capabilities to enhance braking performance and safety.
Features:
- Adjustable pressure from 100 to 1000 PSI for versatile brake bias tuning
- Six preset positions with a click-activated lever for quick adjustments during racing
- Compact forged billet construction for strength and durability
- Lightweight design weighing only 6.1 ounces with lever
- Inlet and outlet ports with 1/8-27 NPT threads, supplied with fittings for compatibility with common brake lines
- Side mounting holes spaced 1 inch apart for flexible installation
