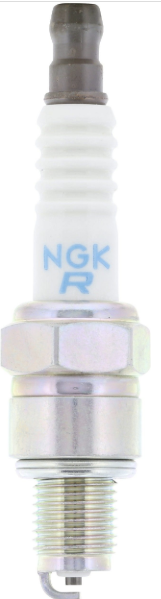

NGK 6535 CR5HSB Nickel Spark Plug (Solid Terminal)

NGK
ELE2188
In stock
$2.94 $2.75
Description The NGK CR5HSB (Stock #6535) is a compact, resistor-type nickel spark plug designed primarily for...
$2.75
NGK 6535 CR5HSB Nickel Spark Plug (Solid Terminal)
Description

Description

The NGK CR5HSB (Stock #6535) is a compact, resistor-type nickel spark plug designed primarily for small engines and power equipment. Built with NGK’s proven materials and construction, it delivers reliable ignition, durability, and consistent performance in demanding environments like generators, trimmers, and small Honda engines.

Key Features

  • OEM-quality nickel electrode for dependable ignition
  • 5kΩ resistor reduces electrical interference (RFI/EMI)
  • Copper core improves heat dissipation and conductivity
  • Trivalent plating resists corrosion and prevents seizing
  • Compact design ideal for small engine applications
  • Triple gasket sealing prevents combustion leakage

Specifications

General

  • Part Number: CR5HSB
  • Stock Number: 6535
  • Heat Range: 5
  • Resistor: Yes (5k Ohm)
  • Gap: 0.7 mm (.028")

Shell

  • Thread Size: M10 x 1.0
  • Reach: 12.7 mm (1/2")
  • Seat Type: Gasket
  • Hex Size: 5/8" (16 mm)
  • Terminal Type: Solid
  • Overall Height: ISO

Electrodes

  • Center Electrode: Nickel (2.5 mm)
  • Ground Electrode: Standard nickel
  • Projection: Non-projected
  • Configuration: J-gap

Common Applications

Honda Small Engines

  • GX22, GX31, GX50, GXH50, GX100U
  • GXV50 / GXV57U

Generators

  • Honda EU1000i, EB2000i, EX700C
  • Generac iX2000

Outdoor Power Equipment

  • Tillers: Honda FG100, Solo 501/502
  • Trimmers/Brush Cutters: Honda HHT22S, UMK422/431
  • Edgers: Honda HHE31CA

Water Pumps

  • Honda WX10, WX15

Marine

  • Honda BF2D outboard

Performance Notes

  • Ideal for small displacement engines requiring compact plugs
  • Designed for ~30,000-mile (or equivalent hours) service life
  • Always verify gap and torque specs before installation
  • Best used where resistor plugs are required to protect electronics
