Description

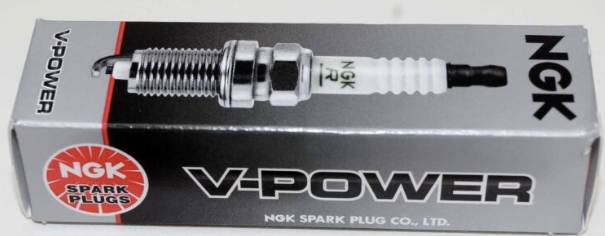

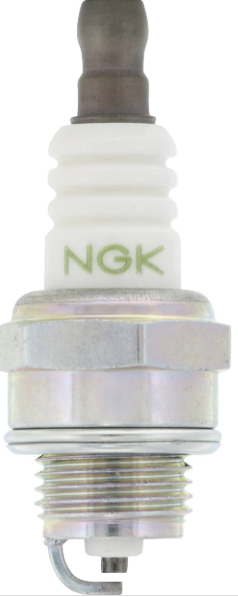

The NGK BPM8Y V-Power spark plug is designed for small engines and outdoor power equipment, delivering improved ignition performance through its V-cut center electrode. This design helps the spark form more efficiently, resulting in quicker starts, smoother operation, and reduced fouling—ideal for chainsaws, trimmers, and other lawn equipment.
Key Features
-
V-Power design: V-cut electrode improves spark exposure and ignitability
-
Solid terminal for secure connection in small engine applications
-
Copper core enhances heat dissipation and engine efficiency
-
Non-resistor design for strong spark output
-
Trivalent plating resists corrosion and seizing
- Built for lawn & garden and small engine equipment
Specifications
General
- Part Number: BPM8Y
- Stock Number: 5574
- Heat Range: 8
- Resistor: No (~1k Ohm noted)
- Pre-Gap: 0.7 mm (.028")
Shell
- Thread Size: M14 x 1.25
- Reach: 9.5 mm (3/8")
- Seat Type: Gasket
- Hex Size: 3/4" (19 mm)
- Terminal Type: Solid
Electrodes
- Center Electrode: Nickel (V-cut, copper core)
- Ground Electrode: Nickel
- Configuration: Standard (J-gap)
- Projection: Projected tip
Fitment Highlights
Echo Equipment (common applications)
- Chainsaws: CS-300, CS-590 Timber Wolf, CS-600P, CS-6700
- Trimmers/Brush Cutters: SRM series, GT series, HC series
- Blowers: PB series (handheld & backpack)
- Edgers, drills, sprayers, and multi-tool systems
Shindaiwa
- Various trimmers and blowers
Other
- Go-karts (Comer C51)
- Additional small engine / outdoor equipment
Performance Notes
-
Heat range 8: suited for high-revving, air-cooled small engines
-
Short reach (9.5 mm): specific to compact engine designs
- Typical service life: ~20,000–30,000 cycles/use intervals depending on equipment
- Designed for 2-stroke and small 4-stroke engines, not automotive use
