Mahle MS Piston Set for GM LS 408ci with 4.030-inch Bore and 6.125-inch Rod

Mahle
mhl930223230
Out of stock
Engine
$765.97
The Mahle MS Piston Set designed for GM LS engines offers a reliable solution for high-performance...
Mahle MS Piston Set for GM LS 408ci with 4.030-inch Bore and 6.125-inch Rod
Description

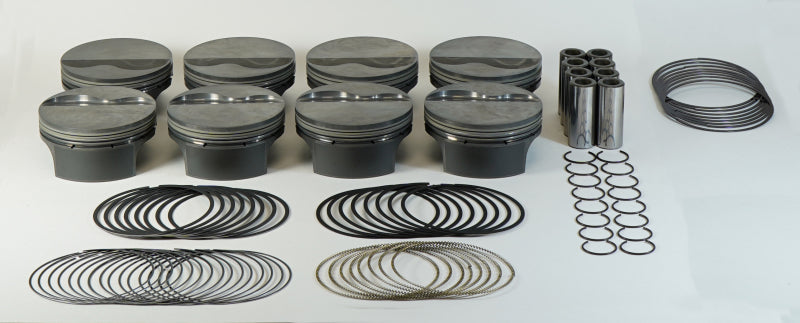

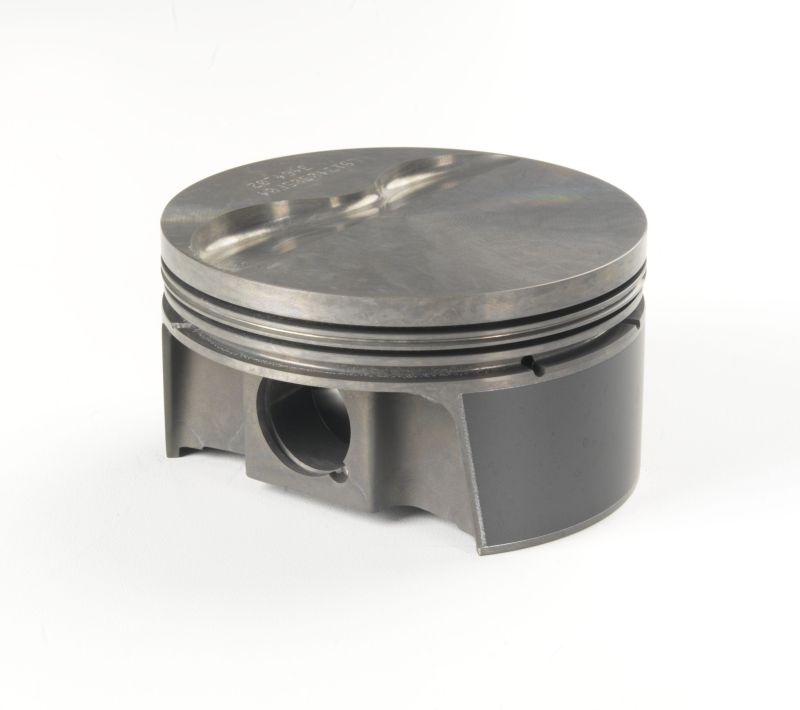

The Mahle MS Piston Set designed for GM LS engines offers a reliable solution for high-performance builds. This set is compatible with LS3 and L92 style rectangular port heads, making it suitable for 408 cubic inch applications. The pistons feature a 4.030-inch bore diameter, providing a precise fit for performance engines. Featuring a flat top design, these pistons are optimized for maximum compression and power output. The set includes eight pistons, each weighing approximately 413 grams, with a compression ratio of 11.1:1, ideal for street and strip applications. Constructed from high-quality 4032 aluminum, these pistons are engineered for durability and consistent performance under demanding conditions.

Features:

  • Bore Diameter: 4.030 inches for precise fit and optimal performance
  • Flat Top Design: Maximizes compression ratio for improved power
  • Material: High-quality 4032 aluminum for durability and heat resistance
  • Compression Ratio: 11.1:1 suitable for high-performance applications
  • Connecting Rod: 6.125 inches for increased stroke and torque
  • Piston Pin: .927 inches diameter for secure attachment
  • Displacement: Designed for 408 cubic inch LS engine builds
  • Compatibility: Suitable for LS3 / L92 style rectangular port heads
  • Set Includes: Eight pistons for complete engine assembly
