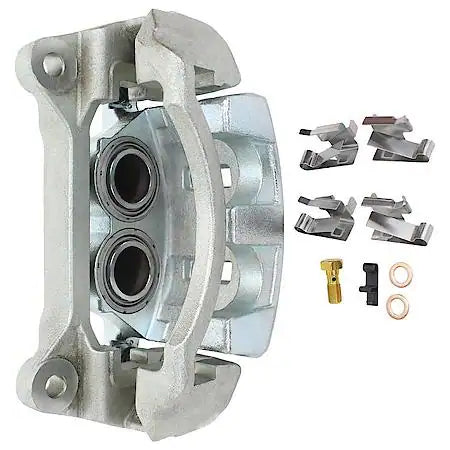

Upgrade your braking system with the CQ Premium Disc Brake Caliper with Bracket, engineered for Chevrolet, GMC, and Isuzu medium-duty trucks. This remanufactured caliper meets or exceeds OE specifications for durability and performance. Constructed from high-strength cast iron and finished with OE-style zinc-dichromate, it offers superior rust resistance. The caliper includes two steel pistons, EPDM rubber seals, dust boots, caliper slides, abutment clips, and all necessary mounting hardware for a complete repair. Every unit is 100% pressure and fit-tested for reliability, ensuring smooth braking right out of the box.
Features:
Durable cast iron caliper with zinc-dichromate coating for rust protection
Complete installation kit: brackets, caliper slides, and abutment clips
Two steel pistons with new EPDM seals and dust boots resist heat and leaks
Floating caliper design ensures proper pad alignment and smooth operation
Includes bleeder screws, banjo bolts, crush washers, and stainless steel pad hardware
Specifications:
Abutment Clips Included: Yes
Anti-Rattle Spring Included: No
Caliper Color: Silver
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Cast Iron
Disc Brake Caliper Casting Material: Cast Iron
Finish: Coated
Grade Type: Standard Replacement
Grease Included: Yes
Inlet Thread Diameter: 10.0 mm
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter: 16.0 mm
Pads Included: No
Piston 1 Diameter: 57 mm
Piston Material: Steel
Piston Quantity: 2
Fitment:
Chevrolet: LCF 4500, LCF 4500XD, LCF 5500HD, LCF 5500XD, W3500 Tiltmaster, W4500 Tiltmaster, W5500 Tiltmaster (2016–2004)
GMC: W3500 Forward, W4500 Forward, W5500 Forward, W5500HD Forward (2004–2010)
Isuzu: NPR Base, NPR-HD Base, NPR-XD Base, NQR Base, NRR Base (2004–2018)
