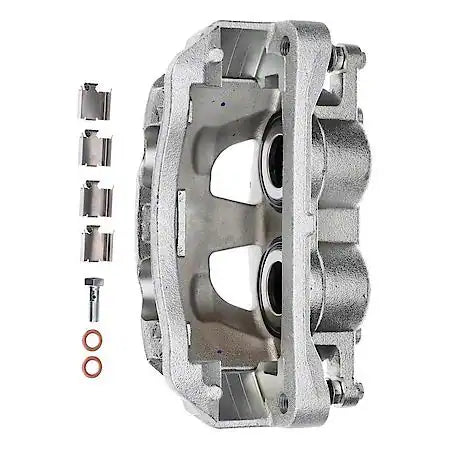

This CQ premium disc brake caliper with bracket is a remanufactured replacement designed to match original equipment specifications for fit and function. The caliper is constructed from cast iron and includes an application-specific mounting bracket for proper installation and alignment within the braking system.
The assembly includes new elastomer sealing components, dust boots, and installation hardware. Each unit is pressure-tested and verified for dimensional accuracy, ensuring proper operation for standard replacement applications where a full caliper and bracket assembly is required.
Features
Remanufactured to original equipment specifications for consistent fit
Includes mounting bracket for direct replacement applications
Factory-style plated finish on iron components
New elastomer seals and dust boots installed
Includes bleeder screws, banjo bolts, crush washers, and stainless steel pad abutment hardware where applicable
Specifications
Abutment Clips Included: Yes
Anti-Rattle Spring Included: No
Caliper Color: Silver
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Cast Iron
Disc Brake Caliper Casting Material: Cast Iron
E-Waste: No
Finish: Coated
Grade Type: Standard Replacement
Grease Included: Yes
Inlet Thread Diameter: 9.53 mm
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter: 16.0 mm
Pads Included: No
Piston 1 Diameter: 59.89 mm
Piston Material: Phenolic
Piston Quantity: 2
Fitment
Ford:
E-150 (2008–2014, various trims and engines)
E-250 (2008–2014, various trims and engines)
E-350 Super Duty (2008–2019, various trims and engines)
E-350 Super Duty (2021–2023, select trims and engines)
