Description

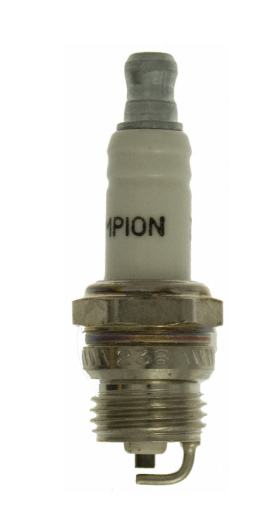

The Champion Copper Plus Spark Plug RDJ7Y is a dependable OE-type replacement spark plug engineered for consistent ignition performance in small engine and outdoor power equipment applications. Designed with Champion’s proven Copper Plus construction, this plug supports reliable starts, accurate heat control, and durable everyday operation.
Built to deliver dependable performance and long service life, the RDJ7Y helps resist fouling while maintaining the ignition stability needed for handheld and compact engine equipment. Its resistor design, tapered seat, and standard electrode configuration make it a solid replacement choice for a wide range of trimmers, blowers, chainsaws, brush cutters, hedge trimmers, and related power equipment. Manufactured to ISO and SAE standards, it offers the fit, function, and durability expected from a trusted replacement plug.
Features
- Part number: 872
- Plug type: RDJ7Y
- OE-type replacement spark plug
- Champion Copper Plus design for dependable performance and durability
- Helps resist fouling for reliable operation
- Copper Plus construction supports heat control and service life
- Superior corrosion resistance
- Built to ISO and SAE standards for proven performance
- Center electrode tip material: Nickel
- Ground electrode tip material: Nickel
- Ground electrode core material: Nickel
- Ground electrode material: Nickel Copper Alloy
- Ground electrode quantity: 1
- Pre-gap size: 0.020 in / 0.50 mm
- Hex size: 0.625 in / 15.880 mm
- Insulator height: 0.06 in
- Manufacturer heat range: 7
- Seat type: Tapered
- Reach: 0.307 in
- Thread diameter: 14.000 mm / 0.551 in
- Resistor type: Yes
- Washer included: No
- Classification: Champion Copper Plus Small Engine
- Grade type: Standard Replacement
- Electrical terminal type: Non-Removable Nut
- Ground electrode tip material: Nickel
- Hex type: Hex
- Center electrode design: Standard
- Indexed: No
- Part description: Spark Plug
- Center electrode diameter: 0.094 in
- Installed height: 1.45 in
- Insulator projection: 0.06 in
- Taper diameter: 0.25 in
- Subject to Prop 65: No
Vehicle / Equipment Fitment
Bolens
- YM320BV
- YM2BV
- YM2BP
- Base
- Base
- Base
- Remington RM5520R
- RM2599
- Remington RM5118R
Briggs & Stratton
Craftsman
- 316.791880 Weedwacker
- 358.796160 Weedwacker
- 316.794970
- 51718
- 316.791860 Weedwacker
- 517.799580 Weedwacker
- 316.791890
- 316.292620
- 79822
- 316.791920 Weedwacker
- 316.794400 Weedwacker
- 358.796121 Weedwacker
- 358.796120 Weedwacker
- 79503
- 79500
- 51716
- 79608
- 316.74520 Brushwacker
- 316.791900 Weedwacker
- 316.791920
- 316.791870
- 79010
- 79607
- 358.796122 Weedwacker
- 316.292640
- 316.292621
- 316.74556
- 358.796110 Weedwacker
- 79011
- CCC25HT 41AQ25HG950
- 316.791810 Weedwacker
- 79501
- 316.797210
- 316.292561
Cub Cadet
- CC2020 41ADC20C709
- CC2090 41ADC90C709
- CCC3075 41ADC75C950
Cub Cadet Commercial
Dolmar
- MS2501
- 102
- 110
- 120
- 100
- LT27
- LT250
- HT2162E
- PS401
- HT2145D
- BC330
- MS20C
- PS341
- PS340
- PE250
- PS400
- BC25
Green Machine
Hoffco
Homelite
- MB-1000
- AP120
- 410
- 245 HG
- 252
- 540
- 180
- Little Red XL
- LX30
- CS40
- 192
- DM40
- DM54
- 245 SL
- 200
Homelite-Jacobsen
- D30MHV
- PBP3000
- HB180VGK
- 290
- 180V
- BX90
- HV390V
- 680
- HB100
- BP250
- D30MHA
- HB280
- HB390
- 480
- 180
- 380
- D25MHV
- ZR Series: Z725CA
- D830SB
- D730CDV
- PHP3000
- 40
- D830CD
- Z25EHV
- E200
- Z830SBA
- 16
- 155
- PLT3400
- PSE3000
- HBC28
- 21
- D830SD
- 160A
- HTC12
- ZR Series: Z625CD
- Z725CB
- HX16
- Z725CDV
- Z725CEA
- Z625SD
- 165
- D630CD
- PLT3200
- 28
- 30
- HT17
- ST175G
- D830CB
- Z625CDV
- 310
- 260
- 38
- 22
- Z830SB
- Z725SE
- Z885SD
- PBC3600
- SX135
- D830CA
- ZR Series: Z825SD
- D830SBA
- ST160
- 18
- 19
- ZR Series: Z725CE
- HBC18
- HLT15
John Deere
- BH30
- BH40
- T30S
- T30SB
- T30C
Jonsered
- 510M
- 410
- 510
- 490
- 520SP
- 420
Lawn-Boy
- 61638
- 61620
- 61653
- Base
- Base
- Base
McCulloch
- Pro Mac PB250
- GLE2580AV
- Pro Mac 2560
- 2360
- Mac 3200 Series
- Mac 3500AV Series
- 2045
- Titan 2100
- 2030
- Pro Mac 2025
- Silver Eagle SE2318
- Mac Cat 16
- Mac 3800 Series
- MS1432
- GHT30
- Titan 2030
- Titan 2250
- Super 18AV
- Silver Eagle SE2116
- GLE2500
- Titan 2360
- MS1838AV
- Pro Mac 2510
- Silver Eagle SE2012B
- Mac 3516
- MS1635AV
- Eager Beaver 2100AV
- 2035
- Titan GLE2380
- Pro Mac 3205AV-14
- Titan 2310
- Pro Mac 380
- Titan 2560AV
- Silver Eagle SE2016
- GLE3000
- Titan 2000
- GLE2380
- Eager Beaver 2100AV Series
- Silver Eagle SE2012
- Eager Beaver 2000
- 2560HD
- MS1635
- Pro Mac 8200AV
- Mac 3800AV Series
- Mac 3818
- 2565AV
- Mac Cat 18
- Silver Eagle SE2014K
- 2100
- Eager Beaver 2000 Series
- Super 16AV
- Pro Mac 3505AV-16
- 2500
- Mac 3214
- Silver Eagle SE2014
- GLE3900
- Silver Eagle SE2316
- Pro Mac 2500
- Eager Beaver Super 2300AV
- 2250
Partner
Pektra
Power Pruner
Ryobi
- 790Pr
- 780r
- 750r
- 725rE
- 975r
- 775r
- 920Er
- 725r
- 768r
- 970r
- 925r
- 960r
- 990r
- 920r
- 790r
Sarlo
Singer
- GBC2818
- GTS2816
- GT2815
- GC31
- GTE2818
Solo
Tanaka
- 2400
- THB-2100
- TPE-2410
- TBC-2400
- TBC-210
- TBC-2210
- TBC-2410
- TPE-2110
- TBC-250
Toro
- 62901
- Base
- 51903
- 51918
- 51906
- 51909
- 53040
- 53041
- 51911
- 51916
- 51908
Troy-Bilt
- TB75SS
- TB70FH
- TB250B
- TB65SS
- TB25ET
- TB20DC
- TB10CS
- TB90BC
- TB25BP
- TB80EC
- TB20CS
- TB70SS
- TB70CS
- TB25CS
- TB15CS
- TB22EC
- TB25GHT
- TB32EC
Trim-A-Lawn
Yard Machines
Additional Catalog Entry
- Base — Spark Plug — Quantity 1 — 1 application
