Product Description

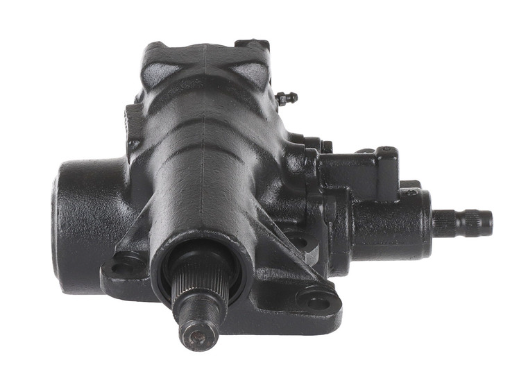

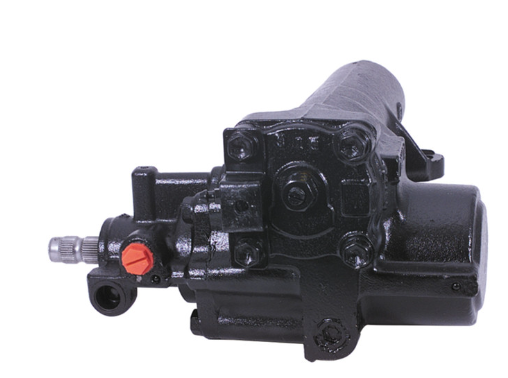

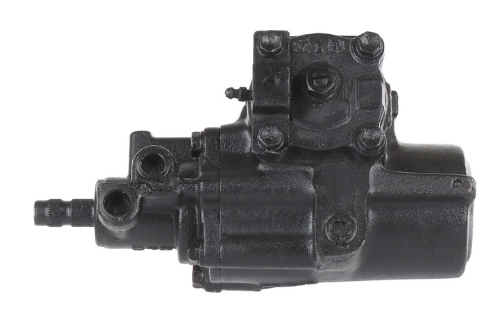

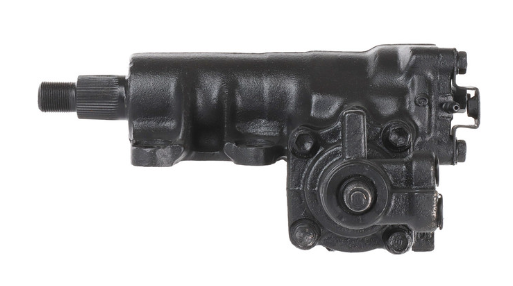

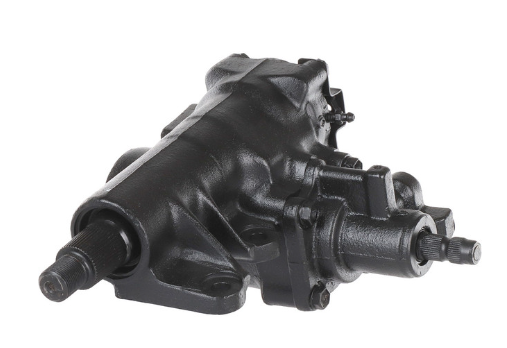

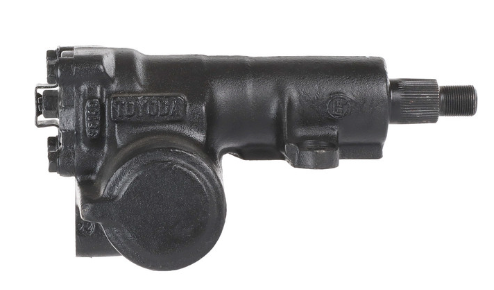

The steering gear box is the heart of the vehicle’s steering system. It guides wheel movement based on steering-wheel input, ensuring optimal steering response and overall driving efficiency. CARDONE Remanufactured Steering Gear Boxes are fully re-engineered, built, and tested to meet or exceed original equipment performance. Each unit includes 100% new O-rings and lip seals for leak-free durability, while shafts are refinished to precise specifications to prevent early seal wear and extend service life. Every unit undergoes 100% hydraulic testing to confirm perfect fit, function, and reliability.
Key Features
-
100% hydraulically tested for proper flow, leakage, and performance
-
100% new O-rings and lip seals for long-lasting, leak-free operation
-
Critical components tested to ensure OE-level reliability
-
Precisely resurfaced shafts prevent premature seal wear
-
Rust-inhibiting “Cool Dip” finish for full-coverage, crack-free protection
-
OE remanufactured unit ensures perfect vehicle fit
-
Eco-friendly reman process reduces energy and material use by 80%
General Information
-
Part Type: Steering Gear
-
Condition: Remanufactured
-
Life Cycle Status: Available to Order
-
Package Contents: Gear, Instruction Sheet, Instruction Tag
-
Package Weight: 31.60 lb
-
UPC: 00082617184083
-
E-Waste: No
OE Cross-Reference Numbers
Toyota: 4411035070, 4411035190
Technical Specifications
| Specification |
Value |
| Hose Port Type |
Seat |
| Input Shaft Diameter |
18.9738 mm / 0.747 in |
| Input Shaft Spline Count |
36 |
| Output Shaft Diameter |
36.07 mm / 1.42 in |
| Output Shaft Spline Count |
48 |
| Output Shaft Thread Diameter |
22.38 mm / 0.881 in |
| Power Assisted |
Yes |
| Pressure Port Thread Size |
16x1.5 |
| Return Port Thread Size |
17x1.5 |
| Total Turns Lock-to-Lock |
2.5 |
| Splined Input Shaft |
Yes |
| Type |
Power |
| Mounting Hardware Included |
No |
Vehicle Fitment
Toyota 4Runner
-
1989 2.4L (From 03/1989)
-
1990–1991 2.4L
-
1989 3.0L (From 03/1989)
-
1990–1991 3.0L
Toyota Pickup
-
1985–1988 2.4L (1 Ton Chassis, RWD)
-
1989–1991 2.4L (4WD)
-
1988 3.0L (1 Ton Chassis, RWD)
-
1989–1991 3.0L (4WD)
Installation & Warranty Requirements
-
Always install an in-line power steering filter to protect the steering system
-
Use only the OE-recommended power steering fluid
-
Flush the entire power steering system before installing the new unit
-
Failure to follow these requirements may void the warranty
