Product Overview

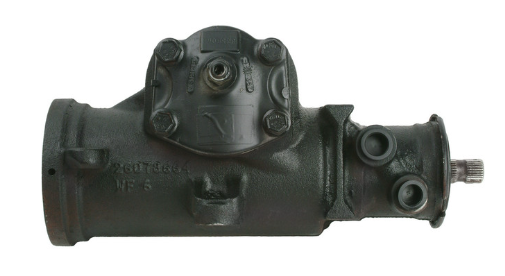

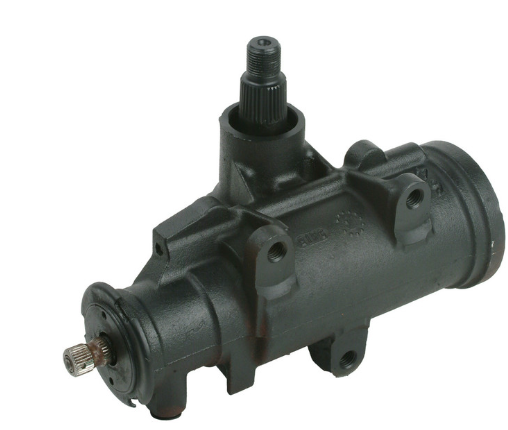

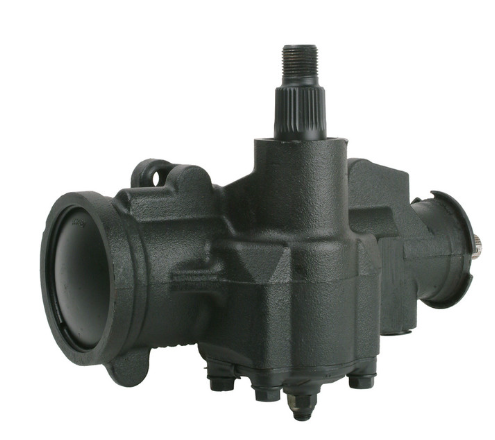

The CARDONE 27-7627 Remanufactured Steering Gear restores precise steering response and OE handling performance for select 1999–2003 Dodge Ram Van models (1500, 2500, 3500). The steering gear box is central to the vehicle’s steering system—converting the driver’s steering wheel input into controlled movement of the front wheels.
CARDONE remanufactures each steering gear to OE specifications using original cores and strict dimensional tolerances. All units undergo 100% hydraulic testing to verify correct internal sealing, pressure response, fluid flow, and steering effort.
All wear components are replaced with 100% new premium seals and O-rings, while shafts are resurfaced to precise OE standards to maximize seal life and eliminate premature wear. The housing is finished with CARDONE’s long-lasting Cool Dip corrosion-inhibitive coating, ensuring consistent protection against rust and flaking.
As with all CARDONE remanufactured components, the process reduces raw material usage and energy consumption by up to 80%, making it both cost-efficient and environmentally responsible.
Key Features
-
100% hydraulic testing validates pressure, flow, leakage, and overall steering performance
-
100% new O-rings and lip seals to ensure a leak-free service life
-
All critical components tested individually prior to assembly
-
Input and output shafts resurfaced to OE tolerances for maximum durability
-
Rust-resistant “Cool Dip” finish covers all exposed surfaces for uniform protection
-
OE-based remanufacturing ensures exact fitment and factory steering feel
-
Eco-friendly remanufacturing process conserves 80% more energy/resources versus new production
OE Cross Reference Numbers
Compatible with OEM part numbers:
-
52039231AC
-
52039231AE
-
R2039231AD
Technical Specifications
| Specification |
Detail |
| Type |
Power Steering Gear |
| Hose Port Type |
O-Ring |
| Input Shaft Diameter |
0.787 in (19.9898 mm) |
| Input Shaft Spline Count |
25 |
| Splined Input Shaft |
Yes |
| Output Shaft Diameter |
1.25 in (31.75 mm) |
| Output Shaft Spline Count |
32 |
| Output Shaft Thread Diameter |
0.864 in (21.95 mm) |
| Power Assisted |
Yes |
| Pressure Port Thread Size |
18x1.5 |
| Pressure Port Thread Diameter |
0.698 in (17.73 mm) |
| Return Port Thread Size |
16x1.5 |
| Return Port Thread Diameter |
0.62 in (15.75 mm) |
| Mounting Hardware Included |
No |
| Turns Lock-to-Lock |
2.75 |
Installation & Warranty Requirements
For proper operation and warranty compliance:
-
Always flush the power steering system prior to installation
-
Install an in-line power steering filter
-
Use only OE-specified power steering fluid
-
Failure to follow these steps may cause noise, poor performance, or premature failure
Vehicle Fitment
Compatible with the following vehicles with Power Steering Gear:
Dodge Ram Van 1500
| Years |
Engine |
| 1999–2003 |
3.9L |
| 1999–2003 |
5.2L |
| 1999–2003 |
5.9L |
Dodge Ram Van 2500
| Years |
Engine |
| 2001 |
3.9L |
| 1999–2001 |
5.2L |
| 1999–2001 |
5.9L |
Dodge Ram Van 3500
| Years |
Engine |
| 1999–2001 |
5.2L |
| 1999–2001 |
5.9L |
