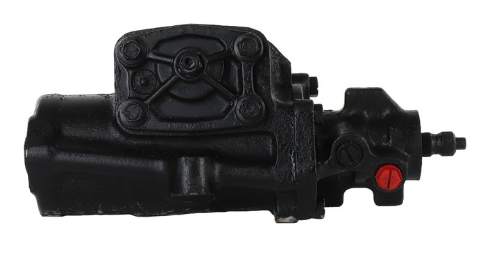

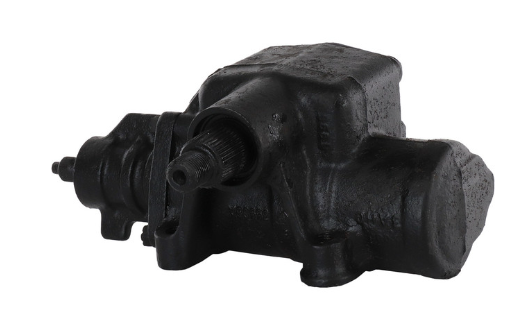

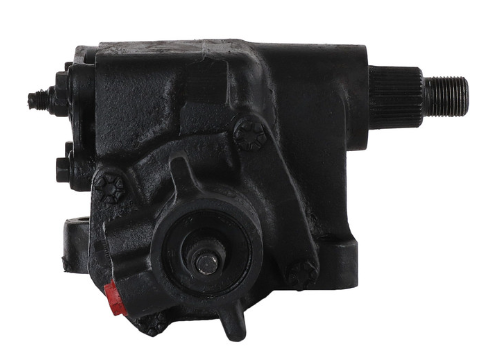

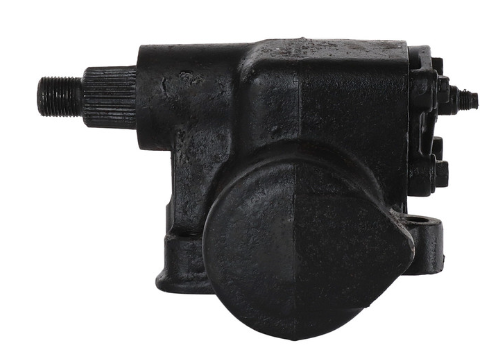

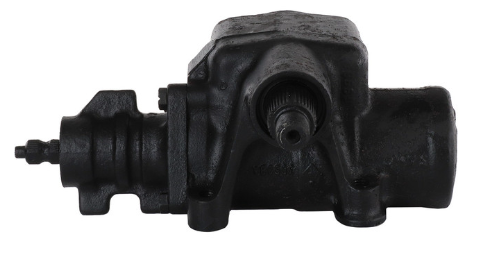

The CARDONE 27-7620 Remanufactured Power Steering Gear is engineered as a direct-fit replacement for select Ford E-Series vans and cutaway chassis (E-150, E-250, E-350, E-450, Econoline). As the core of the steering system, it converts steering wheel input into precise front wheel movement for stable, predictable handling—critical on heavily loaded vans, shuttle buses and RV conversions.
Each unit is fully remanufactured to OE standards using original-equipment cores, then hydraulically tested 100% to verify proper flow, pressure and internal sealing. All O-rings and lip seals are replaced with brand new components for leak-free operation, while shafts are refinished to exact OE tolerances to minimize friction and premature seal wear.
A durable “Cool Dip” rust-inhibitive finish protects the housing from corrosion and prevents cracking, flaking, or peeling over time. This particular part number is a conversion-style unit for specific E-Series applications:
Correct mounting bolts are supplied and must be used when noted.
On models with M14x2.0 mounting holes, this gear is designed to bolt directly in when used per the instructions.
100% hydraulic testing for proper flow, internal leakage and steering performance
100% new O-rings and lip seals for long-lasting, leak-free service
Critical internal components individually tested for durability and reliability
Resurfaced input and output shafts to OE specs for reduced friction and extended seal life
“Cool Dip” rust-inhibitive finish on all exposed surfaces
OE-based remanufacturing ensures correct port locations, mounting, and sector-shaft dimensions
Environmentally friendly process reduces raw material and energy use by up to 80% versus new production
Ford OE Numbers:
4C2Z-3504-FA
5C2Z-3504-FA
6C2Z-3504-AA
6C2Z-3504-AARM
| Category | Specification |
|---|---|
| Type | Power Steering Gear |
| Hose Port Type | O-Ring |
| Input Shaft Diameter | 0.812 in (20.6248 mm) |
| Input Shaft Spline Quantity | 29 |
| Splined Input Shaft | Yes |
| Output Shaft Diameter | 1.38 in (34.93 mm) |
| Output Shaft Spline Quantity | 36 |
| Output Shaft Thread Diameter | 0.881 in (22.38 mm) |
| Power Assisted | Yes |
| Pressure Port Thread Diameter | 0.486 in (12.34 mm) |
| Pressure Port Thread Size | 1/2-20 |
| Return Port Thread Diameter | 0.618 in (15.7 mm) |
| Return Port Thread Size | 5/8-18 |
| Mounting Hardware Included | No (conversion units include correct bolts as noted) |
| Total Turns Lock-to-Lock | 4 |
Many applications explicitly state:
“Correct mounting bolts are provided with conversion unit and must be used. If mounting bolts are not supplied, this is not a conversion unit, and the old bolts must be used.”
and for some 2004 applications:
“with M14x2.0 Mounting Holes” and/or “with Front Axle Rating Over 4200 lb”
Make sure to:
Confirm build date on 2008 models (some are “Before 09/30/2007” or “Before 10/01/2007”).
Check whether your vehicle has M14x2.0 mounting holes or older-style hardware.
Use the supplied bolts where the catalog calls this a conversion unit.
For warranty compliance:
Flush the power steering system thoroughly
Install a new in-line power steering filter
Use OE-specified power steering fluid only
All applications below are with Power Steering Gear and follow the bolt/mounting notes above.
E-150 (Van) – 4.6L & 5.4L
2004 – 4.6L, 5.4L (with M14x2.0 mounting holes)
2005–2007 – 4.6L, 5.4L
2008 – 4.6L, 5.4L (build date before 10/01/2007)
E-150 Club Wagon
2004 – 4.6L, 5.4L (with M14x2.0 mounting holes)
2005 – 4.6L, 5.4L
E-150 Econoline
2007 – 5.4L
2008 – 5.4L (build date as specified in catalog; matches E-150/E-250/E-350 patterns)
E-250 (Van) – 4.6L & 5.4L
2004 – 4.6L, 5.4L (with M14x2.0 mounting holes)
2005–2007 – 4.6L, 5.4L
2008 – 4.6L, 5.4L (build date before 10/01/2007)
E-350 Club Wagon – Heavy front axle applications
2004 – 5.4L, 6.0L, 6.8L, 7.3L
With Front Axle Rating Over 4200 lb and M14x2.0 mounting holes
2005 – 5.4L, 6.0L, 6.8L
E-350 Super Duty (Van / Cutaway)
2004 – 5.4L, 6.0L, 6.8L
With Front Axle Rating Over 4200 lb and M14x2.0 mounting holes
2005–2007 – 5.4L, 6.0L, 6.8L
2008 – 5.4L, 6.0L, 6.8L (Before 10/01/2007)
E-450 Super Duty (Cutaway / Strip Chassis)
2004 – 5.4L, 6.0L, 6.8L (with M14x2.0 mounting holes)
2005–2007 – 5.4L, 6.0L, 6.8L
2008 – 5.4L, 6.0L, 6.8L (Before 09/30/2007)
These catalog lines mirror the E-Series van applications above:
Econoline – 4.6L & 5.4L
2004 – 4.6L, 5.4L (with M14x2.0 mounting holes)
2005–2006 – 4.6L, 5.4L
