Product Description

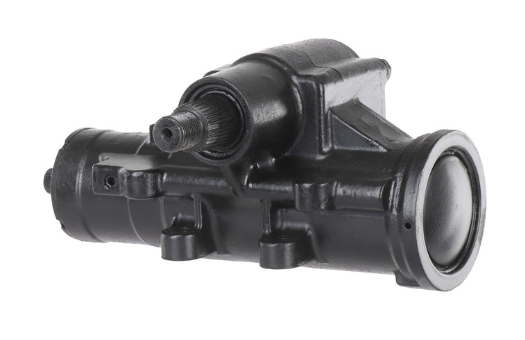

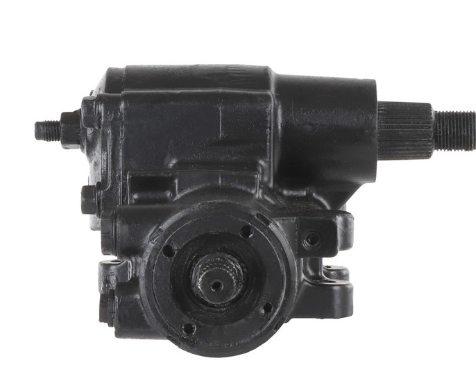

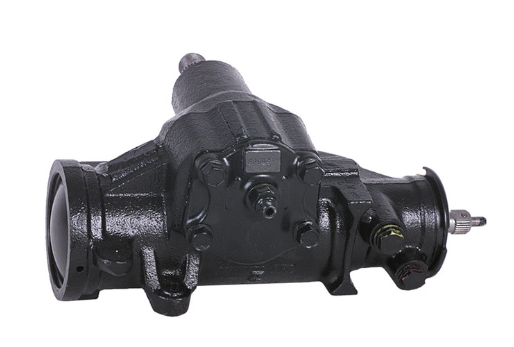

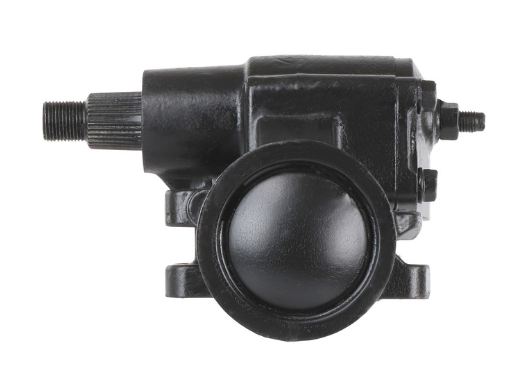

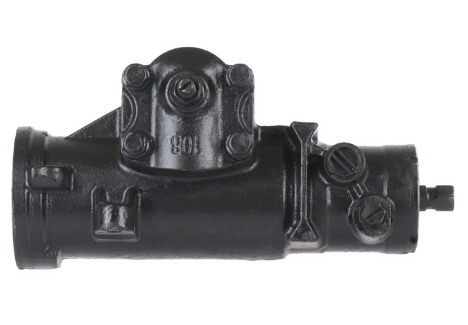

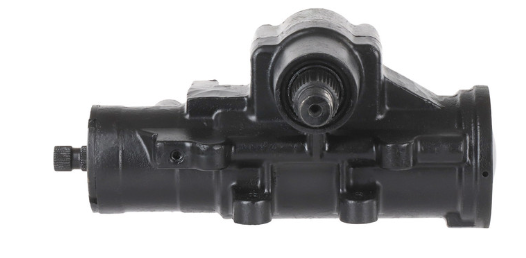

The CARDONE 27-7560 Remanufactured Steering Gear is built to restore precise, OE-style steering feel on popular GM compact trucks/SUVs and Jeep SUVs, as well as select Buick Roadmaster and Chevrolet B-body models. As the core of the steering system, this gear box translates steering wheel input into accurate front-wheel movement, delivering confident, predictable handling on the street or highway.
Each 27-7560 unit is fully remanufactured and 100% hydraulically tested to verify proper fluid flow, internal pressure, leakage control, and steering effort. All O-rings and lip seals are replaced with brand-new components to ensure long-lasting, leak-free performance. The input and output shafts are resurfaced to precise specifications to help prevent premature seal wear and extend service life.
The housing is finished with CARDONE’s rust-inhibitive Cool Dip coating, a penetrating dye that evenly covers all exposed surfaces and resists cracking, flaking, and peeling. Built as a remanufactured OE steering gear, the 27-7560 is a direct bolt-on replacement for specified Chevrolet S10/Blazer, GMC Sonoma/Jimmy, Isuzu Hombre, Jeep Cherokee/Grand Cherokee/Wrangler/TJ, and select Buick and Chevrolet passenger cars.
CARDONE’s environmentally conscious remanufacturing process can reduce energy use and raw material consumption by up to 80% compared to producing a brand-new steering gear.
Key Features
-
100% hydraulic testing confirms proper fluid flow, pressure, leakage control, and steering performance
-
All-new O-rings and lip seals ensure durable, leak-free operation over the life of the unit
-
Critical internal components tested for consistent reliability and steering feel
-
Precision-machined shafts minimize premature seal wear and help extend gear life
-
Cool Dip anti-rust finish evenly protects exposed surfaces against corrosion, cracking, and peeling
-
OE-based remanufactured design provides a direct, bolt-on fit for specified GM, Jeep, Isuzu, and Buick applications
-
Eco-friendly remanufacturing significantly reduces material waste and energy usage versus new production
Technical Specifications
| Specification |
Detail |
| Hose Port Type |
O-Ring |
| Input Shaft Diameter |
0.787 in (19.9898 mm) |
| Input Shaft Spline Quantity |
25 |
| Mounting Hardware Included |
No |
| Output Shaft Diameter |
1.25 in (31.75 mm) |
| Output Shaft Spline Quantity |
32 |
| Output Shaft Thread Diameter |
0.864 in (21.95 mm) |
| Power Assisted |
Yes |
| Pressure Port Thread Diameter |
0.698 in (17.73 mm) |
| Pressure Port Thread Size |
18x1.5 |
| Return Port Thread Diameter |
0.62 in (15.75 mm) |
| Return Port Thread Size |
16x1.5 |
| Splined Input Shaft |
Yes |
| Total Turns Lock to Lock |
3 |
| Type |
Power |
OE Cross References
Chevrolet: 26044624, 26048653
Buick: 26048655
Jeep: 52088386, 52088386AB, 52088389, 52088488, 52089046, 52089046AB, 52089046AC, 52089046AD
Isuzu: 8-26071-291-0, 8-26077-898-0
Vehicle Compatibility
All applications listed are with Power Steering Gear. For warranty protection, install an in-line filter, use OE-recommended fluid, and fully flush the system.
Buick
Roadmaster
Chevrolet
Blazer (S-Blazer, RWD)
-
4.3L:
-
1995–1999 – RWD, with Power Steering Gear
-
2001, 2004–2005 – RWD, with Power Steering Gear, with Low Rider Package (2-door where noted)
Caprice
Impala
S10 (RWD)
GMC
Jimmy (RWD)
-
4.3L:
-
1995–1999 – RWD, with Power Steering Gear
-
2001 – RWD, with Power Steering Gear, with Low Rider Package
-
2004 – RWD, with Power Steering Gear, with Low Rider Package
Sonoma (RWD)
-
2.2L:
-
1995 – RWD, with Power Steering Gear
-
1996–2003 – RWD, with Power Steering Gear, without Sport Chassis Package (ZQ8)
-
4.3L:
-
1995 – RWD, with Power Steering Gear
-
1996–2003 – RWD, with Power Steering Gear, without Sport Chassis Package (ZQ8)
Isuzu
Hombre (RWD)
Jeep
Cherokee
Grand Cherokee
-
4.0L: 1996–1998 – with Power Steering Gear
-
5.2L: 1996–1998 – with Power Steering Gear
-
5.9L: 1998 – with Power Steering Gear
TJ
-
2.5L: 1997–2002 – with Power Steering Gear, Left Hand Drive
-
4.0L: 1997–2002 – with Power Steering Gear, Left Hand Drive
Wrangler
-
2.5L: 1997–2002 – with Power Steering Gear, Left Hand Drive
-
4.0L: 1997–2002 – with Power Steering Gear, Left Hand Drive
Installation & Warranty Notes
-
Always use OE-specified power steering fluid
-
Perform a complete power steering system flush before installing the steering gear
-
Install an in-line power steering filter to protect the gear and maintain warranty coverage
-
Inspect the power steering pump, reservoir, and hoses for contamination, leaks, or deterioration
-
Do not reuse old or contaminated fluid
