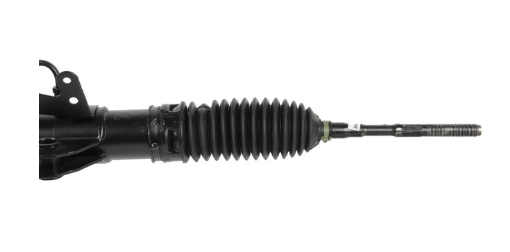

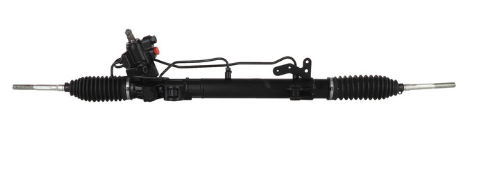

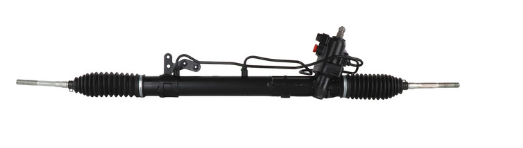

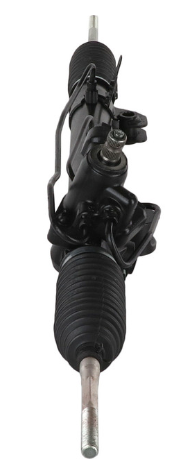

The CARDONE 26-3083 Remanufactured Rack & Pinion Assembly is engineered to restore original steering precision, performance, and reliability. Every unit is completely re-engineered, remanufactured, and tested to meet or exceed O.E. standards.
All internal seals, O-rings, and valve components are replaced with 100% new, O.E.-style materials to ensure leak-free, long-term operation. Each rack is subjected to rigorous hydraulic testing for proper pressure, flow, and steering feel.
A protective corrosion-resistant coating safeguards against harsh conditions, while precision-polished valve housings deliver smooth and consistent performance. Additionally, CARDONE’s remanufacturing process is environmentally responsible, conserving up to 80% of the raw materials and energy required for new part production.
100% new O.E.-style O-rings and lip seals ensure long-lasting, leak-free performance.
Fully hydraulic tested for proper pressure, flow, and smooth operation.
Machined and polished surfaces eliminate internal leakage and improve service life.
Protective anti-corrosion coating extends part longevity.
Valve housings feature micro-finish sleeves for consistent steering control.
Direct O.E. replacement for guaranteed fit and reliable function.
Eco-friendly remanufacturing process reduces energy use and waste.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Electronic Variable Orifice (EVO) | Supplied without EVO Component |
| Total Turns (Lock-to-Lock) | 2.5 |
| End-to-End Length | 43.625 in / 1108.08 mm |
| Bellows Color | Black |
| Input Shaft Type | Grooved |
| Steering Input Shaft Diameter | 0.75 in / 19.05 mm |
| Steering Input Shaft Splines | 36 |
| Inlet Line Fitting | 0.546 in / 13.87 mm, Male |
| Outlet Line Fitting | 0.459 in / 11.66 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Not Included |
| Grade Type | Regular |
Nissan: 490019N00A, 490019N00B
Hydraulic Power Steering | Includes Inner Tie Rods | Supplied Without Electronic Variable Orifice (EVO) Component
Installation Note:
For best performance and warranty compliance, always install a power steering filter, flush the system, and use the OE-recommended hydraulic fluid.
| Year | Make | Model | Engine | Qualifier / Notes |
|---|---|---|---|---|
| 2009–2014 | Nissan | Maxima | 3.5L | Supplied Without EVO; With Hydraulic Power Steering; Includes Inner Tie Rods |
