Product Description

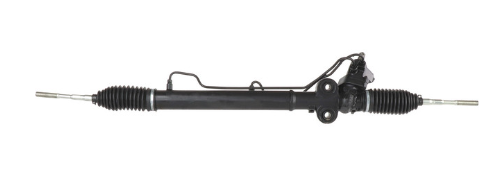

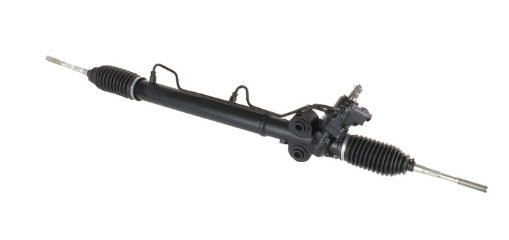

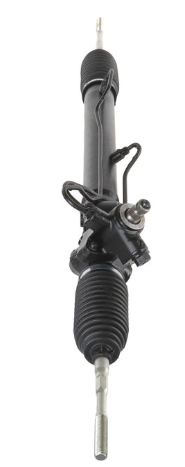

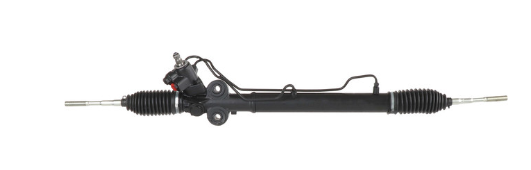

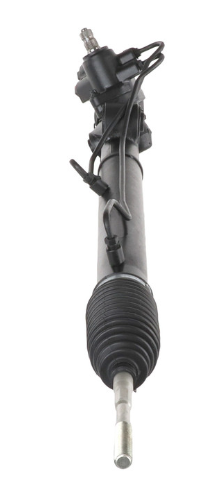

The CARDONE 26-3032 Remanufactured Rack and Pinion Assembly is engineered to restore OE steering precision and durability for Infiniti G35 and Nissan 350Z models. Each unit is fully remanufactured using stringent quality controls, with all critical wear components—including OE-style O-rings, lip seals, spool valve seals, and rack donut seals—replaced to ensure long-lasting, leak-free performance.
Rack surfaces are precision-machined to strict tolerances to prevent chamber cross-leakage, providing consistent hydraulic assist and steering response. Polished micro-finish valve sleeves (where applicable) enhance durability and reduce internal friction. Every rack undergoes 100% hydraulic and performance testing to verify pressure, flow, steering effort, and leak integrity.
A protective coating is applied to shield the housing from corrosion and environmental exposure. As a remanufactured OE unit, the 26-3032 ensures exact fitment, proper steering geometry, and dependable operation. CARDONE’s sustainable remanufacturing process reduces energy and raw material usage by up to 80%.
Key Features
-
Protective anti-corrosion coating applied to all remanufactured units
-
100% performance testing ensures proper steering effort, fit, and reliability
-
100% hydraulic flow and leak testing verifies pressure and operational integrity
-
Precision-machined rack surfaces prevent internal hydraulic bypass
-

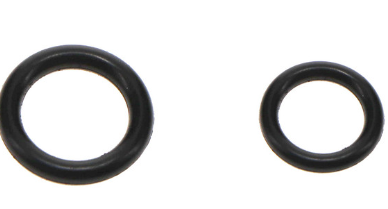

New OE-style seals, O-rings, spool valve seals, and rack donut seals
-
Polished micro-finish valve sleeves enhance longevity (where applicable)
-
OE remanufactured unit ensures exact fit and maintains factory steering geometry
-
Eco-friendly manufacturing reduces energy and material use by up to 80%
Technical Specifications
| Specification |
Detail |
| Bellows Color |
Black |
| End to End Length |
1117.6 mm / 44 in |
| Gasket or Seal Included |
Yes |
| Grade Type |
Regular |
| Inlet Line Fitting Diameter |
13.87 mm / 0.546 in |
| Inlet Line Fitting Gender |
Male |
| Inner Tie Rods Included |
Yes |
| Input Shaft Type |
Grooved |
| Mounting Brackets Included |
No |
| Mounting Hardware Included |
No |
| Mounting Hole Quantity |
2 |
| Outer Tie Rods Included |
No |
| Outlet Line Fitting Diameter |
11.66 mm / 0.459 in |
| Outlet Line Fitting Gender |
Male |
| Steering Input Shaft Diameter |
18.99 mm / 0.748 in |
| Steering Input Shaft Spline Quantity |
36 |
| Total Turns Lock to Lock |
2.5 |
| Type |
Hydraulic |
OE Cross References
INFINITI:
49001AM600, 49001AM800, 49001AM805
Nissan:
49001AM800, 49001CD005
Vehicle Compatibility
(All applications listed include Inner Tie Rods and use Hydraulic Power Steering. For warranty compliance, install an in-line filter, flush the system thoroughly, and use OE-specified fluid.)
INFINITI – G35 (RWD)
3.5L
Nissan – 350Z
3.5L
Installation & Warranty Notes
-
Always use OE-approved hydraulic power steering fluid
-
Perform a complete power steering system flush prior to installation
-
Install an in-line filter to maintain warranty protection
-
Inspect the pump, reservoir, hoses, and lines for contamination or wear
-
Do not reuse any contaminated or old fluid
-
Confirm application details such as Active Steering Control on Infiniti G35 models
