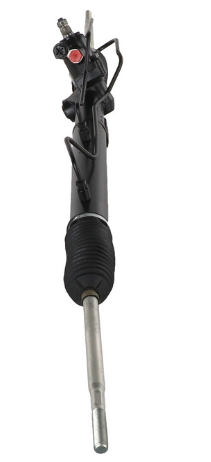

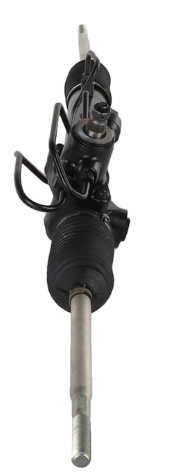

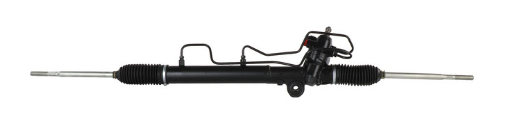

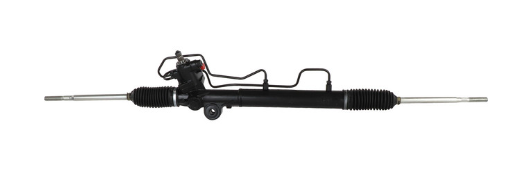

The CARDONE 26-3014 Remanufactured Rack & Pinion Assembly restores your vehicle’s steering performance to like-new condition. Each unit is re-engineered, precision-built, and 100% tested to meet or exceed Original Equipment (O.E.) standards.
All components feature brand new O.E.-style seals, O-rings, and spool valve parts, ensuring leak-free operation and long service life. Every assembly undergoes extensive hydraulic and performance testing to confirm proper flow, pressure, and smooth steering response.
To enhance durability, each rack is finished with a protective anti-corrosion coating, and the internal valve housings receive a polished micro-finish for smooth and consistent operation. The CARDONE remanufacturing process also supports sustainability—reducing energy and material consumption by up to 80% compared to new production.
100% new O.E.-style O-rings and seals guarantee long-lasting, leak-free performance.
Fully tested hydraulically for flow, pressure, and steering precision.
Precision-machined rack surfaces prevent internal leakage and extend life.
Protective coating enhances corrosion resistance and durability.
Polished micro-finish valve housings ensure smooth steering control.
Direct O.E. replacement — engineered for perfect fit and function.
Environmentally friendly remanufacturing process reduces waste and energy use.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 2.625 |
| End-to-End Length | 49.625 in / 1260.47 mm |
| Bellows Color | Black |
| Input Shaft Type | Grooved |
| Steering Input Shaft Diameter | 0.752 in / 19.1 mm |
| Steering Input Shaft Splines | 36 |
| Inlet Line Fitting | 0.546 in / 13.87 mm, Male |
| Outlet Line Fitting | 0.459 in / 11.66 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Not Included |
| Grade Type | Regular |
Nissan: 485217Y000, 490017Y000, 490018J010, 49001ZA000, 49001ZB010, 49001ZK30A, 49001ZK40A, 49521N
Hydraulic Power Steering | Includes Inner Tie Rods
Installation Note:
For best performance and warranty coverage, always install a power steering filter, flush the system completely, and use O.E.-recommended power steering fluid.
| Year | Make | Model | Engine | Qualifier / Notes |
|---|---|---|---|---|
| 2002–2006 | Nissan | Altima | 3.5L | With Hydraulic Power Steering; Includes Inner Tie Rods |
| 2004–2008 | Nissan | Maxima | 3.5L | With Hydraulic Power Steering; Includes Inner Tie Rods |
