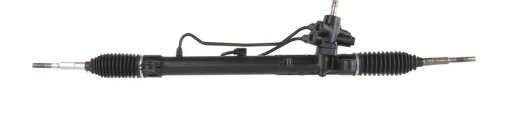

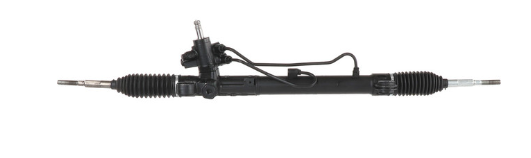

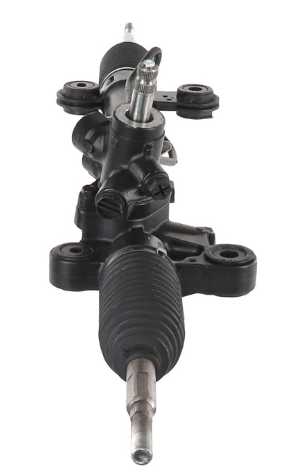

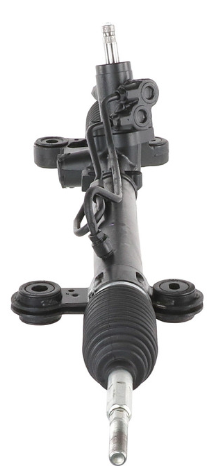

The CARDONE 26-2749 Remanufactured Rack & Pinion Assembly restores original steering performance and vehicle handling precision through meticulous remanufacturing and testing. Each unit is re-engineered, built, and validated to meet or exceed O.E. performance standards.
All internal wear components—including O.E.-style O-rings, seals, spool valves, and rack donuts—are replaced with new, high-quality materials to guarantee long-lasting, leak-free performance. Every unit undergoes extensive hydraulic and performance testing to ensure proper flow, pressure balance, and responsiveness.
A durable protective coating enhances corrosion resistance, extending the service life of the assembly. The CARDONE remanufacturing process is environmentally conscious, reducing energy and raw material usage by up to 80% compared to manufacturing new components.
100% new O.E.-style seals and O-rings ensure leak-free performance.
Fully hydraulic-tested to verify flow, pressure, and function.
Precision-machined to exact tolerances to prevent internal leaks.
Anti-corrosion protective coating extends part longevity.
Polished micro-finish valve housings improve steering smoothness and reliability.
Direct-fit O.E. replacement guarantees easy installation and perfect alignment.
Eco-friendly remanufacturing process reduces waste and resource consumption.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 2.9375 |
| End-to-End Length | 45.25 in / 1149.35 mm |
| Bellows Color | Black |
| Input Shaft Type | Grooved |
| Steering Input Shaft Diameter | 0.686 in / 17.42 mm |
| Steering Input Shaft Splines | 36 |
| Inlet Line Fitting | 0.702 in / 17.83 mm, Male |
| Outlet Line Fitting | 0.459 in / 11.66 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 4 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Not Included |
| Grade Type | Regular |
Honda: 53010SXSA01, 53601SXSA01, 53601SXSA03
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty validation and optimal performance, always install a power steering filter, flush the system, and use manufacturer-recommended OE hydraulic fluid.
| Year | Make | Model | Engine | Qualifier / Notes |
|---|---|---|---|---|
| 2007–2011 | Honda | CR-V | 2.4L | North American Built; With Hydraulic Power Steering; Includes Inner Tie Rods |
