Product Description

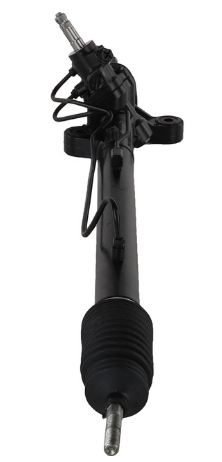

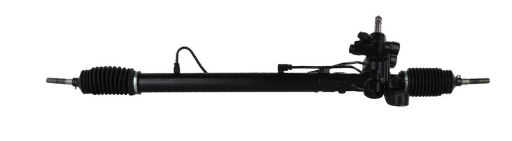

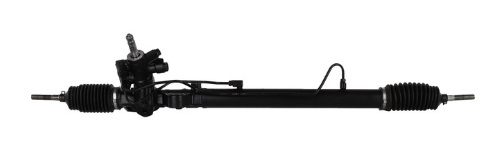

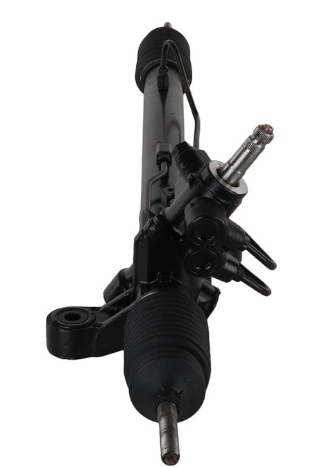

The CARDONE 26-2746 Remanufactured Rack & Pinion Assembly restores precise steering control and O.E. performance while offering an eco-friendly, cost-effective solution. Each unit is re-engineered, built, and rigorously tested to meet or exceed original equipment (O.E.) specifications for fit, reliability, and function.
All internal components—including spool valve seals, rack donut seals, and O.E.-style O-rings—are replaced with brand-new materials to ensure leak-free, long-lasting performance. Every rack undergoes full hydraulic testing to verify proper flow, pressure, and steering response.
A protective anti-corrosion coating is applied to safeguard against rust and extend the lifespan of the unit. CARDONE’s environmentally responsible remanufacturing process conserves up to 80% of energy and raw materials compared to manufacturing new parts.
Key Features and Benefits
-
100% new O.E.-style O-rings, seals, and valve components for superior reliability.
-
Pressure and hydraulic performance tested to guarantee smooth steering.
-
Precision-machined surfaces reduce internal friction and prevent leaks.
-
Protective coating enhances corrosion resistance and durability.
-
Polished micro-finish valve housings ensure smooth, responsive steering feel.
-
Direct O.E. fitment for quick, hassle-free installation.
-
Sustainable remanufacturing process reduces waste and energy use by up to 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.5 |
| End-to-End Length |
43.375 in / 1101.72 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.737 in / 18.71 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Honda: 53010TA0A01, 53601TA0A02, 53601TA5A02, 53601TA6A02, 53601TE0A02, 53601TE1A02
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty purposes and optimal steering performance, always install a power steering filter, flush the system thoroughly, and use manufacturer-recommended OE hydraulic fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2008–2012 |
Honda |
Accord |
2.4L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
| 2008–2012 |
Honda |
Accord |
3.5L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
