Product Description

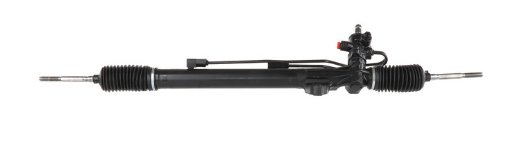

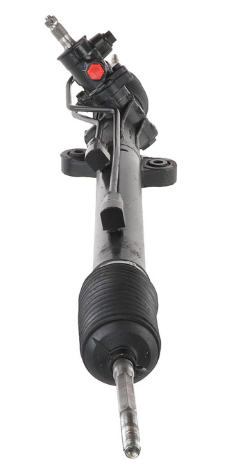

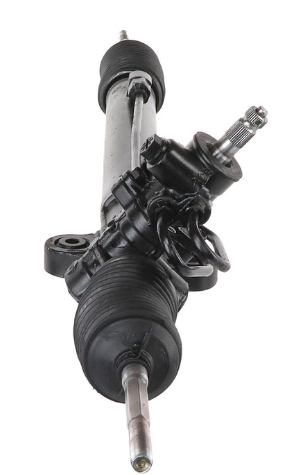

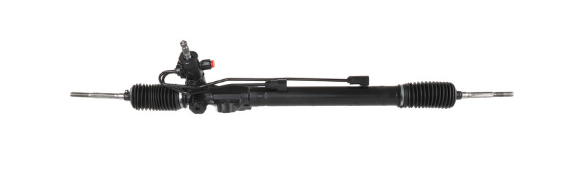

The CARDONE 26-2724 Remanufactured Rack & Pinion Assembly is engineered to restore original steering performance, responsiveness, and reliability. Each unit is re-engineered, built, and rigorously tested to meet or exceed O.E. fit and performance standards.
All internal components—including O.E.-style O-rings, seals, spool valves, and rack donut seals—are replaced with 100% new parts to ensure a leak-free, long-lasting steering system. Each rack undergoes full hydraulic performance testing for flow, pressure, and operation, guaranteeing smooth steering feel and precise control.
A protective anti-corrosion coating enhances durability and longevity, while CARDONE’s remanufacturing process conserves up to 80% of the energy and raw materials compared to producing new units, offering a performance-driven and eco-friendly solution.
Key Features and Benefits
-
100% new O.E.-style O-rings and seals ensure leak-free and consistent operation.
-
Fully tested under hydraulic pressure to guarantee precise steering performance.
-
Polished valve housings and machined rack surfaces improve durability and reliability.
-
Anti-corrosion protective coating extends service life.
-
Direct-fit design ensures O.E. quality, function, and easy installation.
-
Remanufactured process conserves energy and raw materials by up to 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.437 |
| End-to-End Length |
46.688 in / 1185.87 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.75 in / 19.05 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.546 in / 13.87 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Honda: 53010SHJA02, 53601SHJA02, 53601SHJA03, 53601SHJA05, 53601SHJA06, 53601SHJA51, 53601SHJA52, 53601SHJA81, 53601SHJA82, 53601SHJA84
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty validation and optimal performance, always install a power steering filter, flush the system completely, and refill with manufacturer-recommended OE hydraulic fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2005–2006 |
Honda |
Odyssey |
3.5L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
