Product Description

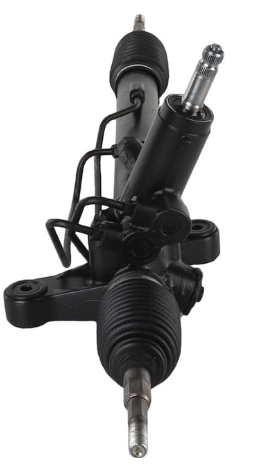

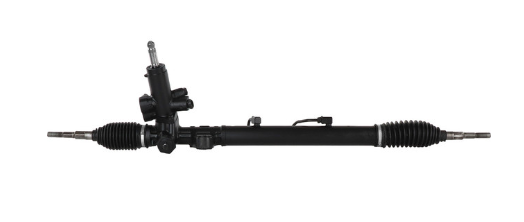

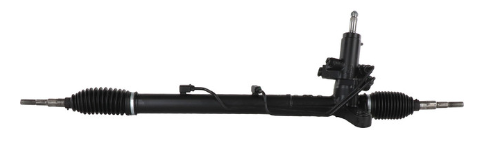

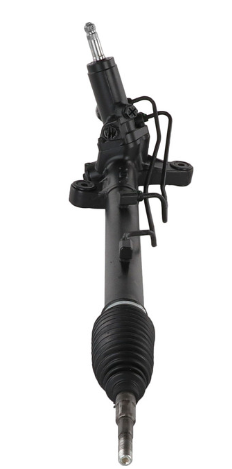

The CARDONE 26-2718 Remanufactured Rack & Pinion Assembly restores original steering performance and reliability through precision re-engineering and testing. Each unit is built to meet or exceed O.E. specifications, ensuring an exact fit, smooth operation, and long-lasting durability.
All internal seals, O-rings, and valve components are 100% new and O.E.-style, preventing leaks and maintaining consistent hydraulic pressure. Each assembly undergoes comprehensive hydraulic testing to ensure proper flow, performance, and reliability.
A protective corrosion-resistant coating is applied to each unit to prolong lifespan and withstand harsh driving conditions. The environmentally friendly remanufacturing process reduces waste and saves up to 80% of the energy and raw materials used in producing new components.
Key Features and Benefits
-
100% new O.E.-style seals and O-rings ensure leak-free performance.
-
Fully tested under hydraulic pressure for flow accuracy and reliability.
-
Precision-machined surfaces prevent internal leaks and improve durability.
-
Polished micro-finish valve housings enhance steering smoothness.
-
Anti-corrosion coating increases longevity and resistance to rust.
-
Direct-fit design for seamless O.E. installation.
-
Eco-friendly remanufacturing conserves up to 80% of materials and energy.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.6875 |
| End-to-End Length |
41.063 in / 1043 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.686 in / 17.42 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Honda: 53010SNEA01, 53601SNAA02, 53601SNAA12, 53601SNAA51, 53601SNAA61
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty validity and long-term reliability, always install an in-line power steering filter, flush the system, and use the recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2006–2010 |
Honda |
Civic |
1.3L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
| 2006–2010 |
Honda |
Civic |
1.8L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
| 2006–2010 |
Honda |
Civic |
2.0L |
With Hydraulic Power Steering; Includes Inner Tie Rods |
