Product Description

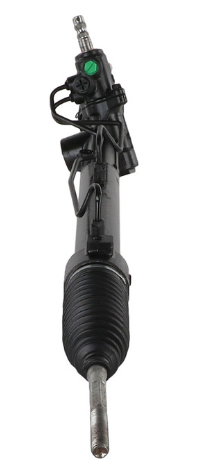

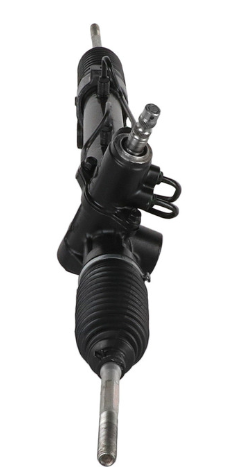

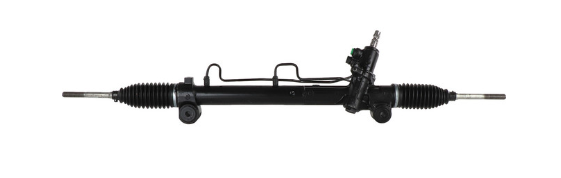

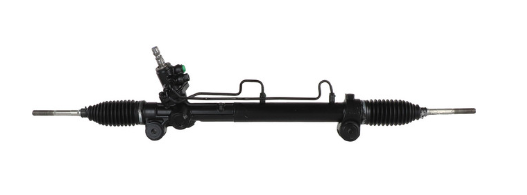

The CARDONE 26-2630 Remanufactured Rack & Pinion Assembly delivers the precision, durability, and performance of an OEM component — at a fraction of the cost. Every unit is engineered and built to meet or exceed original factory specifications, ensuring excellent steering feel and long-term reliability.
All internal components are 100% new and O.E.-style, including seals, O-rings, and valve elements to eliminate hydraulic leaks. Each rack undergoes extensive hydraulic testing for pressure, flow, and leakage to guarantee a perfect fit and function. A protective anti-corrosion coating is applied to safeguard against rust and environmental wear, extending the life of the unit.
With CARDONE’s eco-conscious remanufacturing process, up to 80% of the energy and raw materials required for new parts are conserved — making this an environmentally responsible choice.
Key Features and Benefits
-
100% new O.E.-style seals, O-rings, and valve components ensure leak-free, reliable performance.
-
Fully hydraulically tested to meet or exceed original flow, pressure, and performance specs.
-
Precision-machined rack surfaces prevent internal leaks and enhance steering response.
-
Polished micro-finish valve housings improve durability and smooth operation.
-
Protective coating extends component life and resists corrosion.
-
Direct-fit design ensures perfect vehicle compatibility and easy installation.
-
Sustainable remanufacturing saves 80% of the material and energy used in new part production.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.1875 |
| End-to-End Length |
44.75 in / 1136.65 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.748 in / 18.99 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Outlet Line Fitting |
0.663 in / 16.84 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Toyota: 4420033480, 4425006330, 4425006340, 4550309420, 4550339275
Lexus: 4420033530, 4550339275
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance and optimal performance, always install a power steering filter, flush the hydraulic system, and use manufacturer-recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2007–2012 |
Lexus |
ES350 |
3.5L |
With Hydraulic Power Steering |
| 2007–2011 |
Toyota |
Camry |
2.4L |
With Hydraulic Power Steering |
| 2010–2011 |
Toyota |
Camry |
2.5L |
With Hydraulic Power Steering |
| 2007–2011 |
Toyota |
Camry |
3.5L |
With Hydraulic Power Steering |
