Product Description

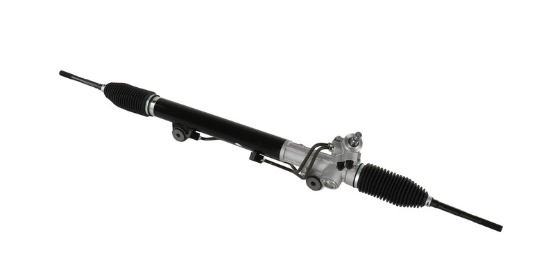

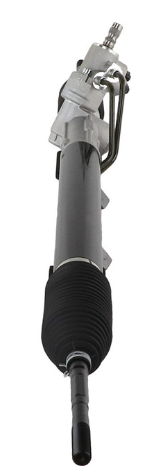

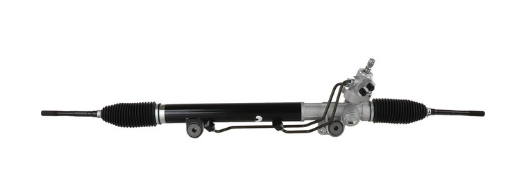

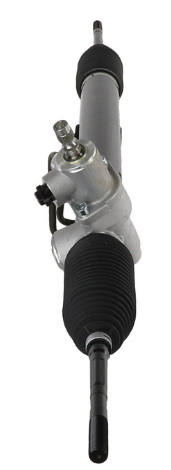

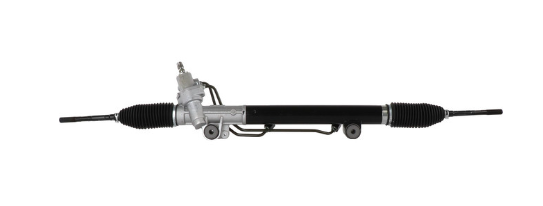

The CARDONE 26-2629 Remanufactured Rack and Pinion Assembly is engineered to deliver OE-level steering response and long-term reliability for a broad range of Toyota Tacoma applications. Each unit is completely remanufactured using new OE-style O-rings, lip seals, spool valve seals, and rack donut seals—ensuring leak-free performance and consistent hydraulic assist.
Precision surfacing of the rack guarantees proper chamber sealing, preventing internal hydraulic leakage and extending service life. Valve housings receive polished micro-finish sleeves (where applicable), enhancing durability and reducing internal friction. Every unit is fully performance-tested and hydraulically validated to verify proper flow, pressure, steering feel, and leak integrity.
A protective final coating is applied to resist corrosion and environmental wear. As a remanufactured OE component, the 26-2629 maintains exact fitment, steering geometry, and bolt-on installation. CARDONE’s eco-friendly remanufacturing process also reduces energy and raw material use by up to 80%.
Key Features
-
Corrosion-resistant protective coating applied to all exposed surfaces
-
100% performance and hydraulic testing ensures proper function and leak-free operation
-
Precision-surfaced rack prevents chamber cross-leaks and enhances longevity
-
Brand-new OE-style O-rings, lip seals, spool valve seals, and rack donut seals
-
Polished micro-finish valve sleeves (where applicable) for improved durability
-
OE-remanufactured unit provides direct-fit installation and factory-correct steering geometry
-
Environmentally friendly remanufacturing process reduces raw material and energy consumption by up to 80%
Technical Specifications
| Specification |
Detail |
| Bellows Color |
Black |
| End to End Length |
1263.65 mm / 49.75 in |
| Gasket or Seal Included |
Yes |
| Grade Type |
Regular |
| Inlet Line Fitting Diameter |
11.66 mm / 0.459 in |
| Inlet Line Fitting Gender |
Male |
| Inner Tie Rods Included |
Yes |
| Input Shaft Type |
Grooved |
| Mounting Brackets Included |
No |
| Mounting Hardware Included |
No |
| Mounting Hole Quantity |
2 |
| Outer Tie Rods Included |
No |
| Outlet Line Fitting Diameter |
16.84 mm / 0.663 in |
| Outlet Line Fitting Gender |
Male |
| Steering Input Shaft Diameter |
19.05 mm / 0.75 in |
| Steering Input Shaft Spline Quantity |
36 |
| Total Turns Lock to Lock |
3.625 |
| Type |
Hydraulic |
OE Cross References
Toyota:
4425004030, 4425004040
Vehicle Compatibility
(All applications listed include Inner Tie Rods and use Hydraulic Power Steering. For warranty protection, always install an in-line filter, use OE-specified fluid, and perform a complete power steering system flush.)
Toyota – Tacoma
2.7L
-
2005–2011
-
2012–2014 — RWD
-
2005–2015 — 4WD
-
2016–2023
3.5L
4.0L
Installation & Warranty Notes
-
Always use OE-approved power steering fluid
-
Perform a complete system flush before installing the new rack
-
Install an in-line power steering filter to maintain warranty coverage
-
Inspect pump, reservoir, hoses, fittings, and lines for contamination or damage
-
Do not reuse old or contaminated fluid
-
Confirm vehicle drivetrain configuration (RWD / 4WD) before installation
