Product Description

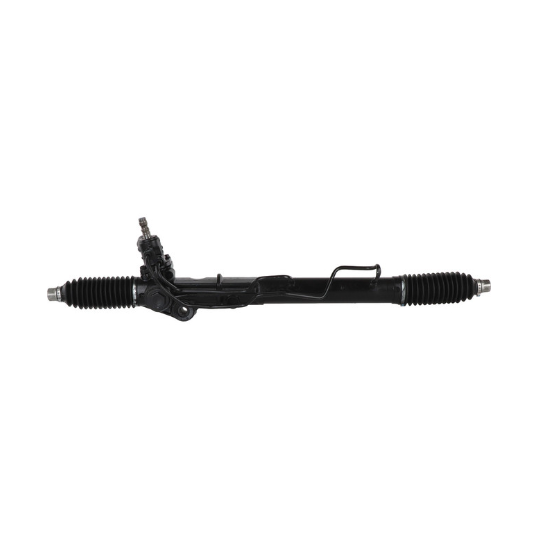

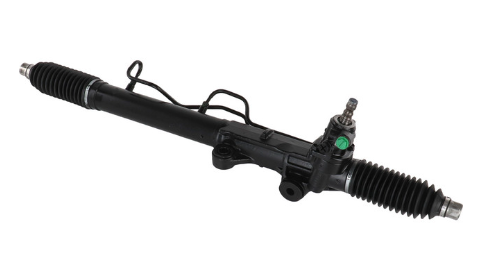

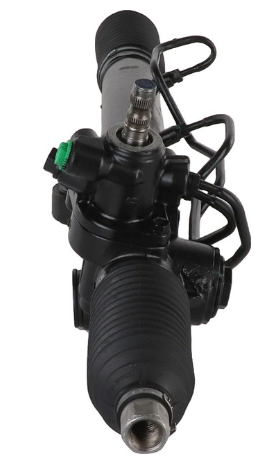

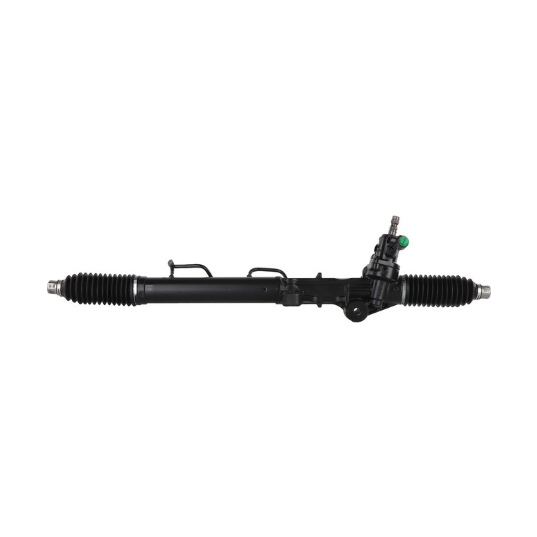

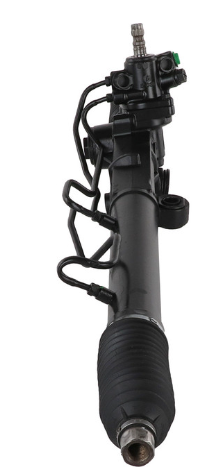

The CARDONE 26-2625 Remanufactured Rack and Pinion Assembly is engineered to restore OE steering performance and hydraulic assist reliability for Toyota 4Runner and Tacoma applications. Each rack is fully remanufactured, using brand-new OE-style seals, O-rings, spool valve seals, and rack donut seals to eliminate internal leaks and maintain consistent hydraulic pressure.
Precision surfacing of the rack prevents chamber cross-leakage, while polished micro-finish valve sleeves (where applicable) improve durability and reduce internal friction. Every unit undergoes complete hydraulic and performance validation to ensure proper flow, pressure, steering effort, and leak-free operation. A protective coating helps defend against corrosion for long-lasting performance in demanding environments.
As a remanufactured OE part, the 26-2625 ensures a direct-fit installation, proper steering geometry, and reliable operation. CARDONE’s environmentally conscious remanufacturing process reduces raw material and energy consumption by up to 80%, offering a sustainable alternative to new-production components.
Key Features
-
Protective corrosion-resistant coating applied to all exposed surfaces
-
100% performance tested for correct fit, function, and steering response
-
100% hydraulic testing validates flow, pressure, and leak-free performance
-
Precision-surfaced rack prevents internal hydraulic leakage and extends service life
-
New OE-style O-rings, lip seals, spool valve seals, and rack donut seals ensure leak-free operation
-
Polished micro-finish valve sleeves (where applicable) enhance durability
-
Direct-fit OE remanufactured unit ensures proper alignment and steering geometry
-
Eco-friendly remanufacturing reduces energy and raw material usage by up to 80%
Technical Specifications
| Specification |
Detail |
| Bellows Color |
Black |
| End to End Length |
952.5 mm / 37.5 in |
| Gasket or Seal Included |
Yes |
| Grade Type |
Regular |
| Inlet Line Fitting Diameter |
11.66 mm / 0.459 in |
| Inlet Line Fitting Gender |
Male |
| Inner Tie Rods Included |
Yes |
| Input Shaft Type |
Grooved |
| Mounting Brackets Included |
No |
| Mounting Hardware Included |
No |
| Mounting Hole Quantity |
2 |
| Outer Tie Rods Included |
No |
| Outlet Line Fitting Diameter |
16.84 mm / 0.663 in |
| Outlet Line Fitting Gender |
Male |
| Steering Input Shaft Diameter |
18.99 mm / 0.748 in |
| Steering Input Shaft Spline Quantity |
36 |
| Total Turns Lock to Lock |
3.5625 |
| Type |
Hydraulic |
OE Cross References
Toyota:
4420035013, 4425035040, 4425035041, 4425035042, 4550339075
Vehicle Compatibility
(All applications listed include Inner Tie Rods and feature Hydraulic Power Steering. For warranty compliance, always install an in-line filter, use OE-specified fluid, and perform a full system flush.)
Toyota – 4Runner
2.7L
3.4L
Toyota – Tacoma
2.4L
2.7L
3.4L
Installation & Warranty Notes
-
Always use OE-approved power steering fluid
-
Perform a complete steering system flush before installation
-
Install an in-line power steering filter to maintain warranty coverage
-
Inspect pump, reservoir, hoses, and lines for contamination or wear
-
Do not reuse old or contaminated fluid
-
Verify correct vehicle fitment, including drivetrain (RWD/4WD) and engine size
