Product Description

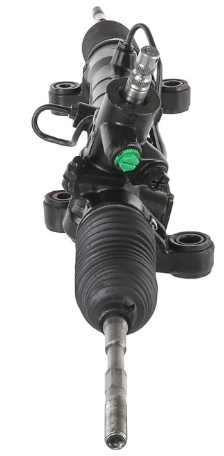

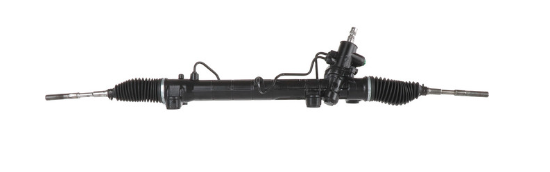

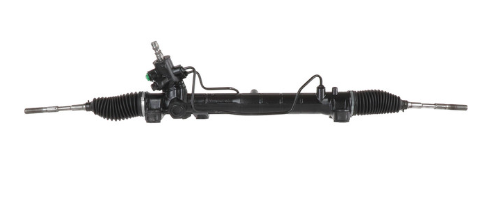

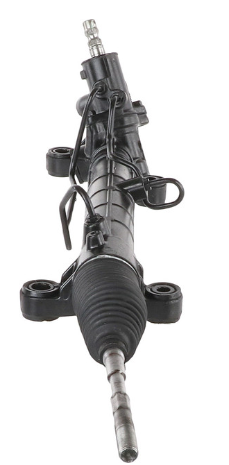

The CARDONE 26-2613 Remanufactured Rack & Pinion Assembly is precision-engineered and rigorously tested to deliver factory-grade steering response and durability. Every unit is completely re-engineered, remanufactured, and performance-tested to meet or exceed O.E. standards.
Each assembly includes 100% new O.E.-style seals, O-rings, and valve components, guaranteeing leak-free, long-lasting performance. The internal rack surfaces are precision-machined to ensure smooth operation and prevent cross-leaks between chambers. A protective anti-corrosion coating is applied for enhanced longevity, and each unit undergoes comprehensive hydraulic testing for flow, pressure, and performance validation.
CARDONE’s eco-friendly remanufacturing process reduces raw material and energy usage by up to 80%, providing a sustainable, high-quality steering solution you can trust.
Key Features and Benefits
-
100% new O.E.-style seals, O-rings, and valve components for leak-free reliability.
-
Precision-machined surfaces ensure consistent steering feel and prevent fluid cross-leaks.
-
Micro-finished valve housings enhance steering smoothness and component longevity.
-
Protective coating resists rust and corrosion for extended service life.
-
Fully tested for hydraulic flow, leakage, and performance before shipping.
-
Direct-fit O.E. replacement for easy installation and original ride quality.
-
Environmentally responsible remanufacturing saves up to 80% of material and energy.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.3125 |
| End-to-End Length |
42.938 in / 1090.62 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.686 in / 17.42 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Outlet Line Fitting |
0.663 in / 16.84 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
4 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Toyota: 4425002070, 4425002150, 4425002151, 4425012670, 4550302060, 4550309400, 4550309430
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For optimal performance and warranty protection, always install a power steering filter, flush the system thoroughly, and refill with OE-recommended hydraulic fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2003–2008 |
Toyota |
Corolla |
1.8L |
With Hydraulic Power Steering |
