Product Description

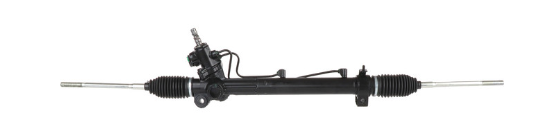

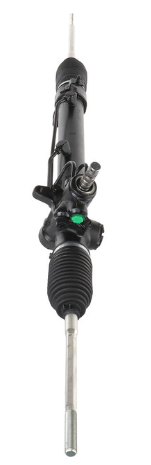

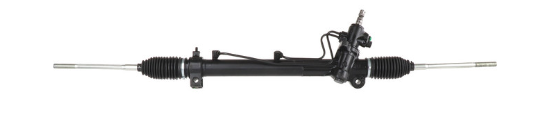

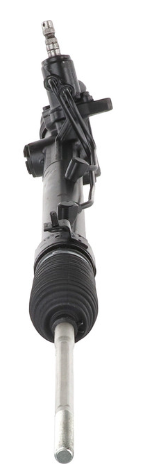

The CARDONE 26-2611 Remanufactured Rack & Pinion Assembly is precision-engineered and thoroughly tested to deliver the performance, reliability, and steering feel of a brand-new OEM unit. Each assembly is meticulously remanufactured using advanced processes that restore original function and fit while ensuring long-term durability.
All internal seals, O-rings, and valve components are 100% replaced with new O.E.-style materials to provide superior resistance to leaks and wear. Internal surfaces are precision-machined to factory specifications, ensuring consistent steering response and smooth hydraulic operation.
Every unit receives a protective anti-corrosion coating, and each assembly undergoes comprehensive hydraulic testing for pressure, flow, and leak-free performance. CARDONE’s environmentally responsible remanufacturing process also conserves up to 80% of the energy and raw materials required to produce new components.
Key Features and Benefits
-
100% new O.E.-style seals, O-rings, and valve components for leak-free performance.
-
Precision-machined and surfaced internal components ensure smooth hydraulic operation.
-
Micro-finished valve housings increase durability and steering precision.
-
Protective coating applied to resist corrosion and extend product lifespan.
-
100% performance-tested for hydraulic flow, pressure, and leakage before shipment.
-
Direct-fit O.E. replacement for simplified installation and factory-quality performance.
-
Sustainable remanufacturing process uses up to 80% less raw material and energy.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.625 |
| End-to-End Length |
50.375 in / 1279.52 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.748 in / 18.99 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.546 in / 13.87 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Lexus: 4425048021, 4425048040, 4425048041, 4550349095
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty validation and optimal performance, it is recommended to always install an inline power steering filter, flush the entire system, and refill with OE-specified hydraulic fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 1999–2003 |
Lexus |
RX300 |
3.0L |
With Hydraulic Power Steering |
