Product Description

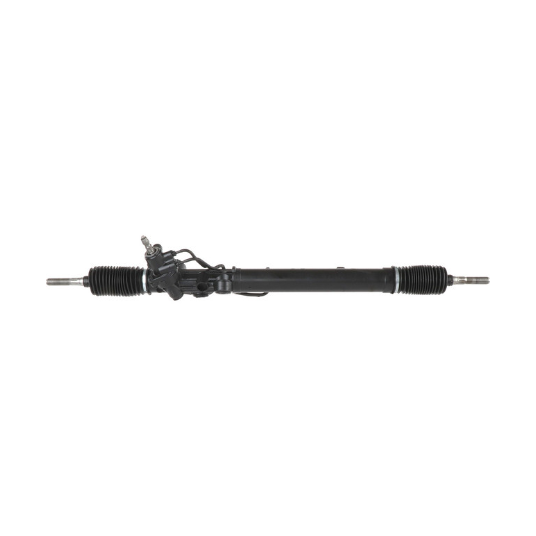

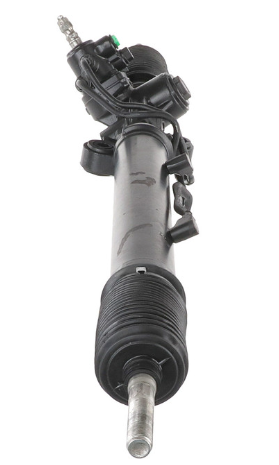

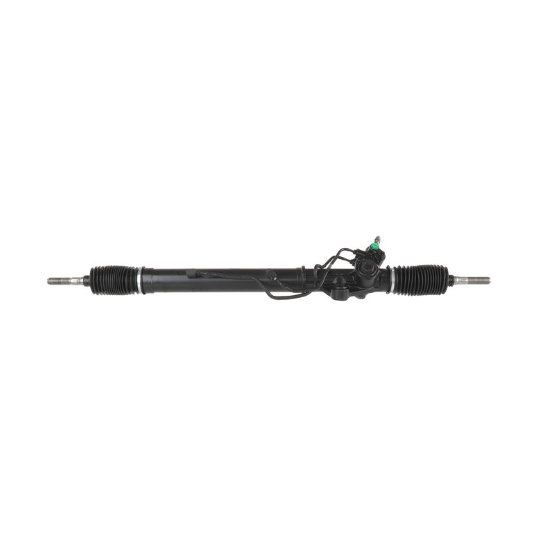

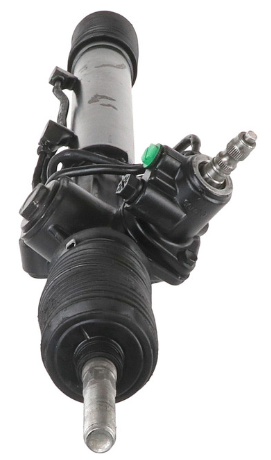

The CARDONE 26-2603 Remanufactured Rack & Pinion Assembly delivers the same fit, performance, and reliability as a brand-new OEM unit — at a fraction of the cost. Each assembly is completely re-engineered, built, and tested to meet or exceed original equipment (O.E.) specifications.
All internal seals, O-rings, and spool valve components are 100% replaced with new, O.E.-style materials to ensure long-lasting, leak-free operation. The rack housing and internal surfaces are precision-machined to prevent fluid bypass and ensure consistent steering response.
Each unit receives a protective anti-corrosion coating to extend its service life, while micro-finished valve housings and rigorous hydraulic flow testing ensure smooth, precise steering control under all conditions.
CARDONE’s remanufacturing process is also eco-conscious — reducing energy consumption and raw material use by up to 80%, helping protect both your vehicle and the environment.
Key Features and Benefits
-
100% new O.E.-style seals, O-rings, and valve components for superior leak prevention.
-
Fully tested hydraulically to ensure proper flow, pressure balance, and performance.
-
Protective coating applied to resist corrosion and extend service life.
-
Precision-machined internal surfaces prevent cross-leaks and ensure smooth steering.
-
Micro-finished valve housings enhance durability and responsiveness.
-
Direct O.E. fit for easy installation and factory-level performance.
-
Environmentally friendly remanufacturing saves up to 80% of energy and raw materials.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.8125 |
| End-to-End Length |
45.5 in / 1155.7 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.748 in / 18.99 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Outlet Line Fitting |
0.663 in / 16.84 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Toyota: 4425060050, 4450369015
Lexus: 4425060050, 4550369015, TR4450369015
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For optimal performance and warranty compliance, always install a power steering filter, flush the hydraulic system, and refill with OE-specified power steering fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 1998–2002 |
Lexus |
LX470 |
4.7L |
With Hydraulic Power Steering |
| 1998–2002 |
Toyota |
Land Cruiser |
4.7L |
With Hydraulic Power Steering |
