Product Description

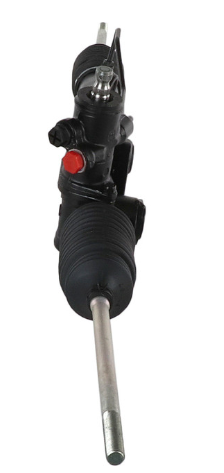

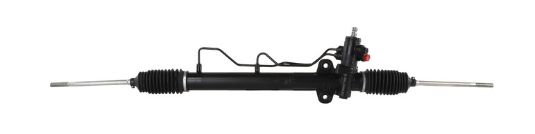

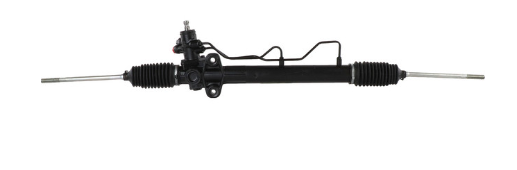

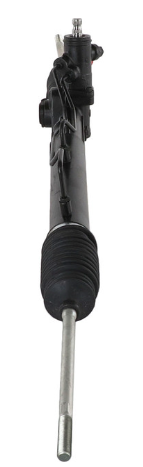

The CARDONE 26-2413 Remanufactured Rack & Pinion Assembly restores the original steering feel, precision, and performance of your vehicle’s hydraulic steering system. Every unit is individually re-engineered and rigorously tested to meet or exceed original equipment (O.E.) standards for fit, function, and reliability.
Each assembly includes 100% new O.E.-style O-rings, seals, and spool valve components to eliminate internal and external leaks. The rack housing and critical surfaces are precision-machined to factory specifications, preventing cross-leaks between hydraulic chambers and ensuring smooth steering response.
Every unit receives a durable protective coating to resist corrosion, while micro-finished valve housings deliver consistent steering performance and long service life. Before leaving the facility, each rack undergoes comprehensive hydraulic and performance testing to confirm proper pressure, flow, and steering response.
CARDONE’s remanufacturing process is also environmentally responsible, cutting energy use and raw material consumption by up to 80% compared to manufacturing new components — all while maintaining uncompromising O.E. quality.
Key Features and Benefits
-
100% new O.E.-style seals, O-rings, and valve components ensure leak-free, long-lasting performance.
-
Fully hydraulic-tested for accurate flow, pressure, and steering feel.
-
Precision-machined housing ensures perfect sealing between hydraulic chambers.
-
Protective anti-corrosion coating extends durability.
-
Micro-finished valve housings deliver smooth, responsive steering.
-
Direct O.E. fit ensures easy installation.
-
Eco-friendly remanufacturing reduces material waste and energy use by 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.9375 |
| End-to-End Length |
50.938 in / 1293.82 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.709 in / 18 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.546 in / 13.87 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Hyundai: 5771026200, 5771026500, 5778526200
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
To maintain warranty coverage and ensure optimal performance, always install a power steering filter, flush the hydraulic system, and refill with the manufacturer’s recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2001–2006 |
Hyundai |
Santa Fe |
2.4L |
With Hydraulic Power Steering |
| 2001–2006 |
Hyundai |
Santa Fe |
2.7L |
With Hydraulic Power Steering |
| 2003–2006 |
Hyundai |
Santa Fe |
3.5L |
With Hydraulic Power Steering |
