Product Description

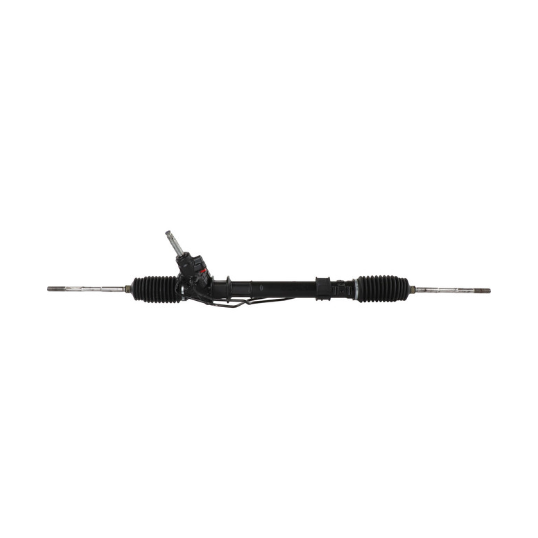

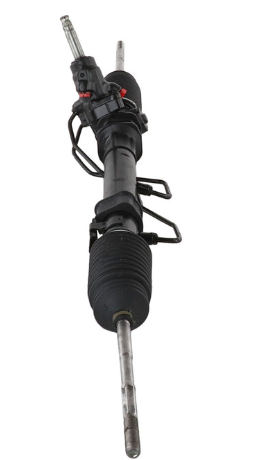

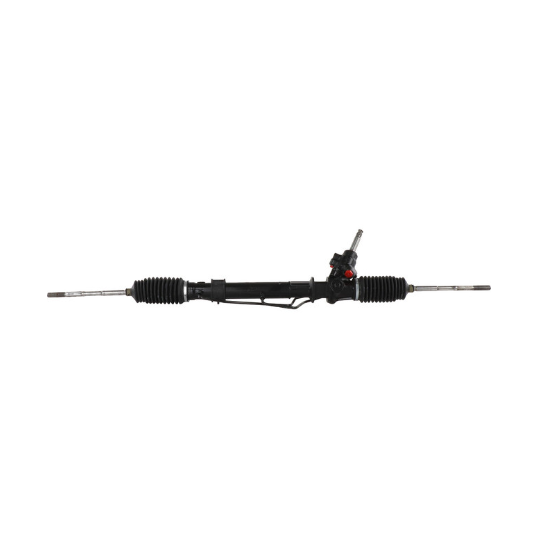

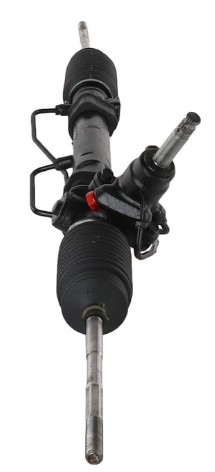

The CARDONE 26-2401 Remanufactured Rack & Pinion Assembly restores the precise steering feel, control, and reliability of your Subaru’s original steering system. Each unit is meticulously re-engineered, remanufactured, and tested to meet or exceed original equipment (O.E.) performance standards.
Every assembly receives 100% new O.E.-style O-rings, lip seals, and spool valve seals to prevent leaks and ensure long-term durability. All housings and internal components are precision-machined to exact tolerances, eliminating cross-leaks between chambers and guaranteeing smooth, responsive steering.
Each rack is finished with a protective corrosion-resistant coating, while micro-finished valve housings deliver long-lasting steering consistency. CARDONE also performs comprehensive hydraulic and performance testing on every unit to ensure perfect pressure, flow, and responsiveness before it leaves the facility.
The remanufacturing process is environmentally responsible, cutting energy use and raw material consumption by up to 80% compared to new parts—all while maintaining O.E. quality and fitment.
Key Features and Benefits
-
100% new O.E.-style O-rings, seals, and spool valve components ensure leak-free operation.
-
Fully hydraulic-tested for correct flow, pressure, and steering response.
-
Protective coating prevents rust and extends product life.
-
Micro-finished valve housings ensure smooth, consistent steering feel.
-
Direct O.E. fit for straightforward installation and reliable performance.
-
Eco-friendly remanufacturing saves up to 80% of energy and raw materials.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.375 |
| End-to-End Length |
46.188 in / 1173.17 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.709 in / 18 mm |
| Steering Input Shaft Splines |
20 |
| Inlet Line Fitting |
0.546 in / 13.87 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
1 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Subaru: 34110AE12A, 34110AE12B, 34110AE20A, 34140AA040, 34140AC000, TR34140AA040
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
Always install a power steering filter and flush the hydraulic system before refilling with the manufacturer’s recommended OE fluid to ensure warranty coverage and optimal system performance.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2003–2006 |
Subaru |
Baja |
2.5L |
With Hydraulic Power Steering |
| 2000–2004 |
Subaru |
Outback |
2.5L |
With Hydraulic Power Steering |
| 2001–2004 |
Subaru |
Outback |
3.0L |
With Hydraulic Power Steering |
