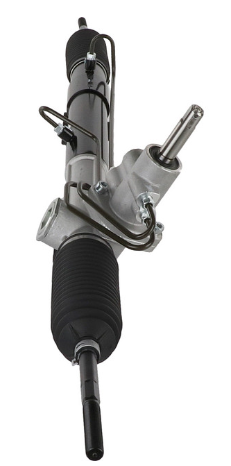

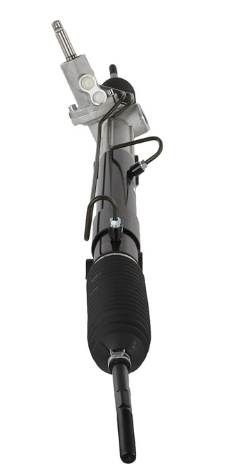

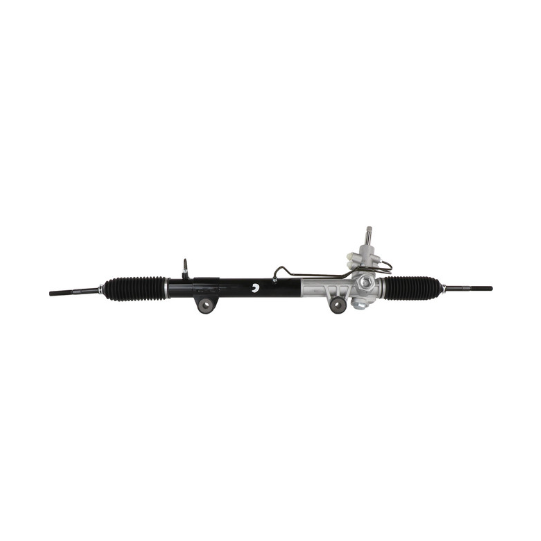

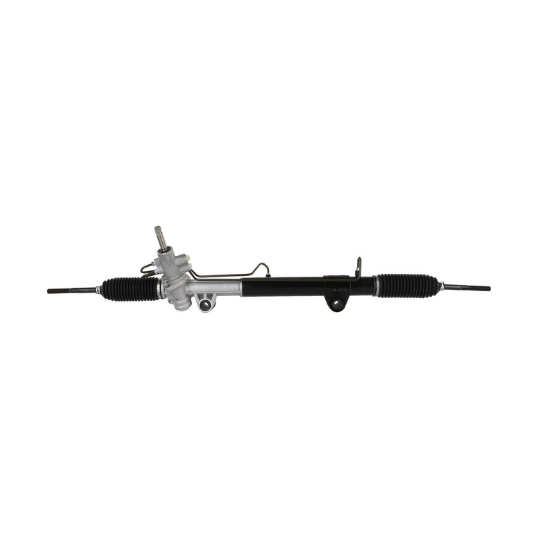

The CARDONE 26-2143 Remanufactured Rack & Pinion Assembly is designed to restore steering precision, reliability, and responsiveness to O.E. performance levels. Each unit is completely remanufactured, tested, and validated to meet or exceed original factory specifications.
All racks undergo extensive disassembly and inspection, followed by the installation of 100% new O.E.-style O-rings, lip seals, and spool valve seals to ensure leak-free operation and consistent performance. Each unit is hydraulically and performance tested for proper flow, pressure, and steering feel.
The housing and internal components are machined to exact tolerances to eliminate internal leaks, while a protective coating defends against corrosion. Precision-polished valve housings enhance steering smoothness and longevity.
As part of CARDONE’s environmentally friendly remanufacturing process, this unit conserves resources by using up to 80% less energy and raw materials than new part production—without sacrificing quality or durability.
100% O.E.-style O-rings, lip seals, and spool valve seals ensure leak-free operation.
Fully tested under hydraulic pressure to confirm flow and performance accuracy.
Protective coating prevents rust and extends component life.
Micro-finished valve housings provide smooth, consistent steering.
Precision-machined rack surfaces prevent cross-leaks for reliable operation.
Direct O.E. fit for easy installation and perfect alignment.
Eco-conscious remanufacturing process reduces environmental impact by 80%.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 3.1875 |
| End-to-End Length | 50.062 in / 1271.6 mm |
| Bellows Color | Black |
| Input Shaft Type | Double Flat |
| Steering Input Shaft Diameter | 0.709 in / 18 mm |
| Inlet Line Fitting | 0.702 in / 17.83 mm, Male |
| Outlet Line Fitting | 0.459 in / 11.66 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Included |
| Grade Type | Regular |
Dodge: 52013466AH, 52013466AI, 52013466AJ, 52013466AL, 68040277AB
Mitsubishi: 52013466AI, 52013466AJ, 52013466AK, 52013466AL
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
To ensure proper operation and warranty coverage, always install a power steering filter, flush the system, and refill using the manufacturer’s recommended OE fluid.
| Year | Make | Model | Engine | Qualifier / Notes |
|---|---|---|---|---|
| 2005–2010 | Dodge | Dakota | 3.7L | With Hydraulic Power Steering |
| 2005–2010 | Dodge | Dakota | 4.7L | With Hydraulic Power Steering |
| 2006–2009 | Mitsubishi | Raider | 3.7L | With Hydraulic Power Steering |
| 2006–2007 | Mitsubishi | Raider | 4.7L | With Hydraulic Power Steering |
