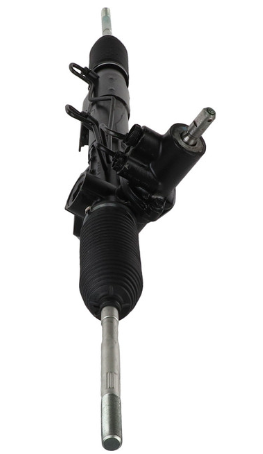

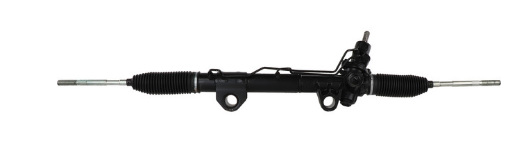

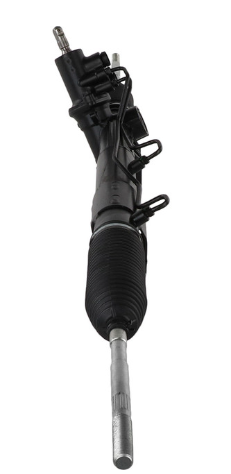

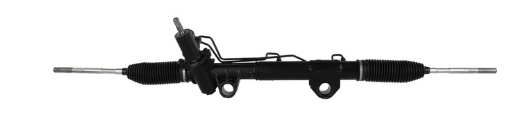

The CARDONE 26-2140 Remanufactured Rack & Pinion Assembly is built to restore original steering performance and precision. Each unit is meticulously re-engineered, tested, and validated to meet or exceed O.E. performance standards for fit, function, and durability.
All units are completely disassembled and cleaned, then rebuilt using 100% new O.E.-style O-rings, lip seals, and spool valve seals to eliminate leaks and ensure long-term reliability. The rack housings are precision-machined and surfaced to prevent cross-leaks and maintain consistent hydraulic performance.
A durable protective coating resists corrosion, while micro-polished valve sleeves enhance smooth steering feel and longevity. Every rack is fully hydraulic and performance tested to confirm proper flow, pressure, and sealing integrity.
The CARDONE remanufacturing process conserves resources and reduces environmental impact by using up to 80% less energy and raw material than manufacturing a new component.
100% new O.E.-style O-rings, lip seals, and spool valve seals ensure leak-free operation.
Fully tested under hydraulic pressure for consistent, smooth performance.
Protective coating guards against corrosion and extends service life.
Micro-finished valve housings provide optimal steering response and durability.
Direct O.E. fit for effortless installation and perfect alignment.
Environmentally responsible remanufacturing reduces waste and energy use by 80%.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 2.8125 |
| End-to-End Length | 54.812 in / 1392.25 mm |
| Bellows Color | Black |
| Input Shaft Type | Double Flat |
| Steering Input Shaft Diameter | 0.748 in / 18.99 mm |
| Inlet Line Fitting | 0.702 in / 17.83 mm, Male |
| Outlet Line Fitting | 0.771 in / 19.58 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Included |
| Grade Type | Regular |
Dodge:
52106521AG, 52106521AH, 52106521AI, 52106521AJ, 52106521AV,
52106522AG, 52106522AH, 52106522AI, 52106522AJ, 52106522AV,
52110334AC, 52110334AE, 52110334AF, 52110334AG, 52110334AH,
52110334AI, RL106521AZ
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
To maintain warranty coverage and ensure reliable operation, always install a power steering filter, flush the hydraulic system, and refill with OE-specified fluid.
| Year | Make | Model | Engine | Qualifier / Notes | Drive |
|---|---|---|---|---|---|
| 2002–2005 | Dodge | Ram 1500 | 3.7L | With Hydraulic Power Steering | 4WD |
| 2002 | Dodge | Ram 1500 | 3.9L | With Hydraulic Power Steering | 4WD |
| 2002–2005 | Dodge | Ram 1500 | 4.7L | With Hydraulic Power Steering | 4WD |
| 2003–2005 | Dodge | Ram 1500 | 5.7L | With Hydraulic Power Steering | 4WD |
| 2002–2003 | Dodge | Ram 1500 | 5.9L | With Hydraulic Power Steering | 4WD |
| 2004–2005 | Dodge | Ram 1500 | 8.3L | With Hydraulic Power Steering | 4WD |
