Product Description

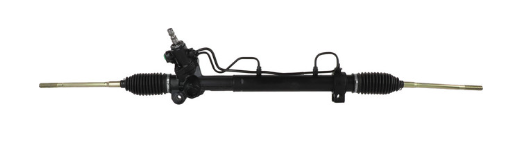

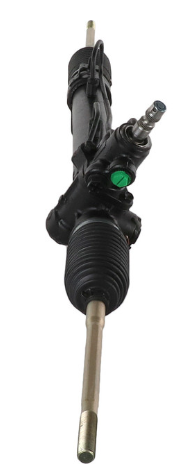

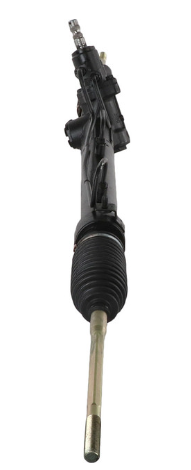

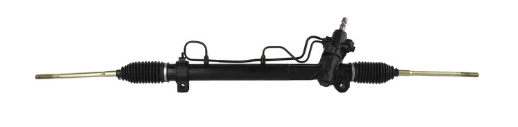

The CARDONE 26-1617 Remanufactured Rack & Pinion Assembly is engineered to restore original steering performance and reliability. Each unit is precision remanufactured and hydraulically tested to ensure it meets or exceeds O.E. standards for fit, function, and durability.
Every assembly is equipped with 100% new O.E.-style seals, lip seals, and O-rings for complete leak-free performance. CARDONE’s proprietary micro-finished valve housings and precision-surfaced rack components ensure smooth operation and eliminate internal leaks between pressure chambers.
Finished with a durable, corrosion-resistant coating, this rack and pinion offers long-term protection against rust and environmental damage. The environmentally friendly remanufacturing process saves up to 80% of the energy and raw materials required to make a new unit, reducing waste without compromising performance.
Key Features and Benefits
-
100% new O.E.-style O-rings, lip seals, and valve seals ensure long-lasting, leak-free steering performance.
-
Fully hydraulic and performance-tested for pressure, flow, and reliability.
-
Precision-surfaced rack and micro-finished valve housings ensure consistent steering feel.
-
Corrosion-resistant finish enhances durability and component longevity.
-
Direct-fit O.E. design guarantees perfect vehicle fit and effortless installation.
-
Eco-friendly remanufacturing reduces energy and material use by up to 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3 |
| End-to-End Length |
51.438 in / 1306.52 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.748 in / 18.99 mm |
| Steering Input Shaft Splines |
36 |
| Inlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Outlet Line Fitting |
0.663 in / 16.84 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
1 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Toyota: 4425006090, 4425007061, 4425007062, 4425033260, 4550339055, 4550339135
Lexus: 4425033260
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the system, and refill using the manufacturer’s recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 1999–2001 |
Lexus |
ES300 |
3.0L |
With Hydraulic Power |
| 2000–2004 |
Toyota |
Avalon |
3.0L |
With Hydraulic Power |
| 2000–2001 |
Toyota |
Camry |
2.2L |
With Hydraulic Power |
| 2000–2001 |
Toyota |
Camry |
3.0L |
With Hydraulic Power |
