Product Description

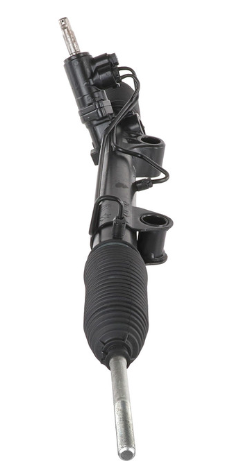

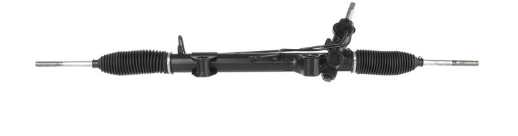

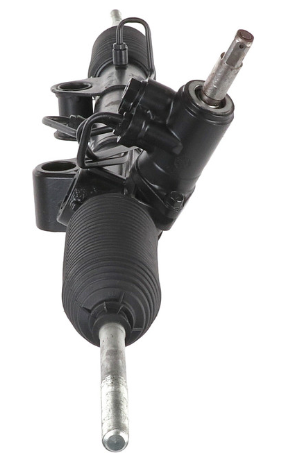

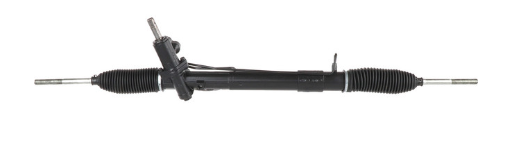

The CARDONE 22-389 Remanufactured Rack & Pinion Assembly restores steering precision, hydraulic performance, and original handling feel. Each unit is meticulously remanufactured to meet or exceed OEM quality, ensuring reliable operation and a perfect fit.
All units feature 100% new O.E.-style O-rings, lip seals, and spool valve seals for complete leak-free performance. Every assembly undergoes comprehensive hydraulic and flow testing to ensure proper pressure, steering response, and durability.
Precision-machined surfaces prevent cross-leakage between internal chambers, and a protective corrosion-resistant coating extends service life. CARDONE’s eco-conscious remanufacturing process saves up to 80% of the raw materials and energy required to produce new parts — delivering OEM quality while reducing environmental impact.
Key Features and Benefits
-
100% new O.E.-style seals and O-rings ensure long-term, leak-free performance.
-
Fully hydraulic tested for proper pressure, flow, and performance consistency.
-
Precision surfacing and micro-finished valve housings provide smooth steering operation.
-
Anti-corrosion coating extends durability and resists environmental wear.
-
Restores original steering feel and control with O.E.-level accuracy.
-
Direct-fit installation for exact vehicle application.
-
Sustainable remanufacturing saves up to 80% in energy and raw material use.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.437 |
| End-to-End Length |
49.062 in / 1246.2 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
0.734 in / 18.64 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Yes |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Jeep: 5189419AA, 52109970AA
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the hydraulic system, and refill with OE-specified fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2006 |
Jeep |
Liberty |
2.8L |
With Hydraulic Power |
| 2006–2007 |
Jeep |
Liberty |
3.7L |
With Hydraulic Power |
