Product Description

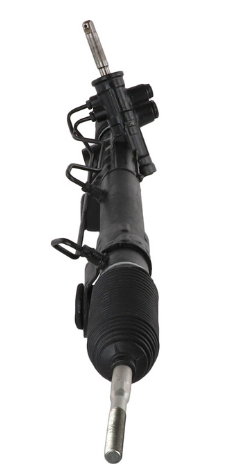

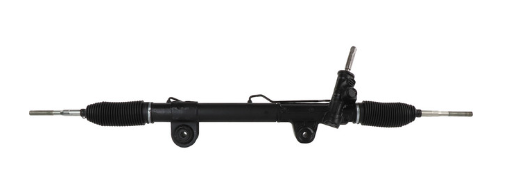

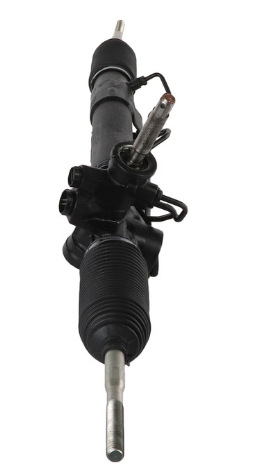

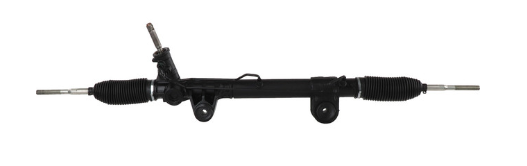

The CARDONE 22-386 Remanufactured Rack & Pinion Assembly delivers precise steering performance, O.E.-level quality, and long-lasting reliability. Each unit is completely disassembled, cleaned, and re-engineered to correct factory weaknesses and ensure consistent operation.
Equipped with 100% new O.E.-style seals, lip seals, and O-rings, it guarantees leak-free performance and extended service life. Every rack undergoes 100% hydraulic and performance testing to validate proper flow, pressure, and steering response. Precision machining ensures accurate chamber sealing and consistent performance, while a protective coating provides superior corrosion resistance.
As part of CARDONE’s sustainable production process, this remanufactured unit uses up to 80% less raw material and energy than manufacturing a new part — without compromising on quality or fit.
Key Features and Benefits
-
100% new O.E.-style O-rings, seals, and lip seals ensure long-term leak-free operation.
-
Fully flow, pressure, and performance tested for reliable, O.E.-level steering response.
-
Precision surfacing eliminates internal leaks between chambers.
-
Corrosion-resistant finish enhances durability and lifespan.
-
Micro-finished valve housings ensure smooth steering and precise control.
-
Environmentally conscious remanufacturing saves energy and materials by up to 80%.
-
Direct-fit O.E. design guarantees perfect installation and compatibility.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.437 |
| End-to-End Length |
50.125 in / 1273.17 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
0.709 in / 18 mm |
| Inlet Line Fitting |
0.774 in / 19.66 mm, Male |
| Outlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Chrysler: 52122302AB, 52855758AE, 52855758AF, 52855758AG, 68040226AA
Dodge: 52122302AB, 52855758AE, 52855758AF, 52855758AG, 68040226AA
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the system, and use OE-specified fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2007–2009 |
Chrysler |
Aspen |
4.7L |
With Hydraulic Power |
| 2007–2009 |
Chrysler |
Aspen |
5.7L |
With Hydraulic Power |
| 2004–2006 |
Dodge |
Durango |
3.7L |
ID #(s) 5285 5758, With Hydraulic Power |
| 2007–2009 |
Dodge |
Durango |
3.7L |
With Hydraulic Power |
| 2004–2006 |
Dodge |
Durango |
4.7L |
ID #(s) 5285 5758, With Hydraulic Power |
| 2007–2009 |
Dodge |
Durango |
4.7L |
With Hydraulic Power |
| 2004–2006 |
Dodge |
Durango |
5.7L |
ID #(s) 5285 5758, With Hydraulic Power |
| 2007–2009 |
Dodge |
Durango |
5.7L |
With Hydraulic Power |
