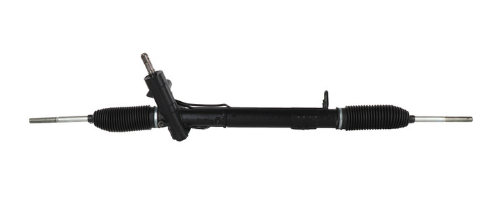

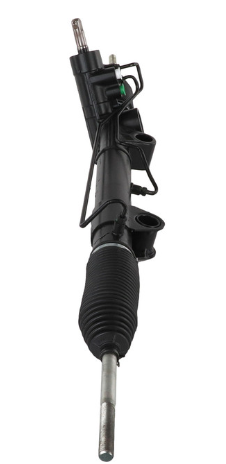

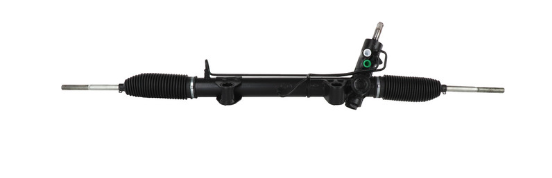

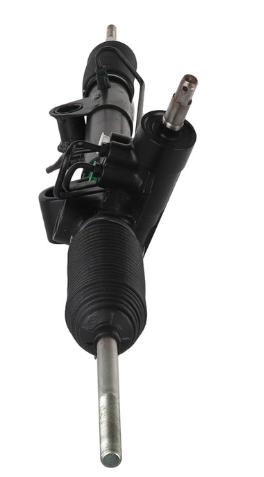

The CARDONE 22-362 Remanufactured Rack & Pinion Assembly is engineered and tested to restore precise steering control and performance that meets or exceeds original equipment standards. Each unit is completely disassembled, cleaned, and reassembled, using 100% new O.E.-style O-rings and seals to ensure leak-free and long-lasting performance.
Every rack undergoes 100% hydraulic testing to verify flow, pressure, and internal sealing integrity, ensuring smooth steering under all conditions. A protective coating is applied to resist corrosion and extend service life. CARDONE’s precision surfacing process eliminates chamber leakage, improving responsiveness and durability.
By remanufacturing original units, CARDONE reduces environmental impact — conserving up to 80% of the raw materials and energy required to produce new parts — without compromising reliability or performance.
Key Features and Benefits
-
100% new O.E.-style seals and O-rings deliver leak-free, long-lasting operation.
-
Fully pressure-tested to guarantee proper flow, pressure, and performance.
-
Precision surfacing prevents internal leaks and ensures long-term durability.
-
Corrosion-resistant coating protects against rust and wear.
-
Micro-finished valve housings enhance steering smoothness and feel.
-
Environmentally responsible remanufacturing saves up to 80% energy and material.
-
Direct-fit O.E. replacement simplifies installation and ensures perfect fit.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.437 |
| End-to-End Length |
49 in / 1244.6 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
0.786 in / 19.96 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Yes |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Jeep: 52128517AA, 52128517AB, 52128517AD, 52128517AE
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the hydraulic system, and refill with OE-specified fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2002–2005 |
Jeep |
Liberty |
2.4L |
With Hydraulic Power |
| 2005 |
Jeep |
Liberty |
2.8L |
With Hydraulic Power |
| 2002–2005 |
Jeep |
Liberty |
3.7L |
With Hydraulic Power |
