Product Description

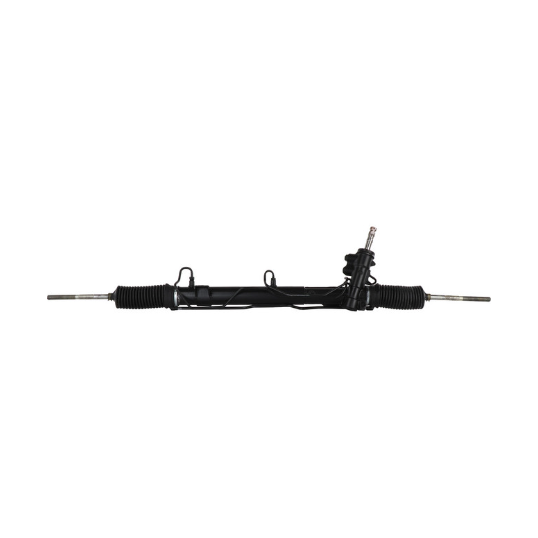

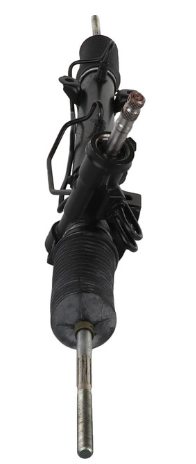

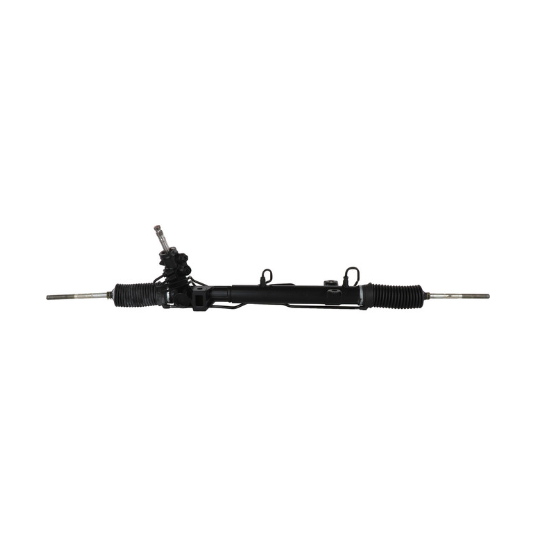

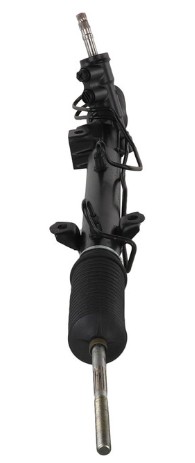

The CARDONE 22-348 Remanufactured Rack & Pinion Assembly delivers precise steering response and reliable performance equal to or better than original equipment. Each unit is completely disassembled, cleaned, and re-engineered, with all critical components inspected, restored, or replaced.
Equipped with 100% new O.E.-style seals, O-rings, and lip seals, this assembly ensures leak-free, long-lasting operation. All racks are 100% hydraulically tested for proper flow, pressure, and performance, while precision machining prevents internal leakage between chambers. A protective anti-corrosion coating adds durability and extends service life.
Environmentally friendly and performance-proven, CARDONE’s remanufacturing process uses up to 80% less raw material and energy than producing a new unit—without sacrificing quality or reliability.
Key Features and Benefits
-
100% new O.E.-style seals and O-rings ensure leak-free performance.
-
Fully tested for proper flow, pressure, and steering response.
-
Precision-machined components maintain internal tolerances and extend life.
-
Protective coating resists corrosion for long-lasting durability.
-
Polished valve housing surfaces provide smooth steering feel and consistent performance.
-
Direct-fit O.E. replacement simplifies installation.
-
Eco-conscious remanufacturing process reduces waste and energy use by 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.125 |
| End-to-End Length |
50.25 in / 1276.35 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.661 in / 16.78 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
3 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Chrysler: 4743142AD, 4743142AH, 4766321AD, 4797706, 5114163AA, 5114164AA, 68002222AC
Dodge: 4797706, 5114163AA, 5114164AA
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the hydraulic system, and use OE-specified steering fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2001–2002 |
Chrysler |
Grand Voyager |
3.8L |
With Hydraulic Power |
| 2001–2004 |
Chrysler |
Town & Country |
3.3L |
With Hydraulic Power |
| 2001–2004 |
Chrysler |
Town & Country |
3.8L |
With Hydraulic Power |
| 2001–2003 |
Chrysler |
Voyager |
2.4L |
With Hydraulic Power |
| 2001–2004 |
Chrysler |
Voyager |
3.3L |
With Hydraulic Power |
| 2001–2004 |
Dodge |
Caravan |
2.4L |
With Hydraulic Power |
| 2001–2004 |
Dodge |
Caravan |
3.3L |
With Hydraulic Power |
| 2001–2004 |
Dodge |
Grand Caravan |
3.3L |
With Hydraulic Power |
| 2001–2004 |
Dodge |
Grand Caravan |
3.8L |
With Hydraulic Power |
