Product Description

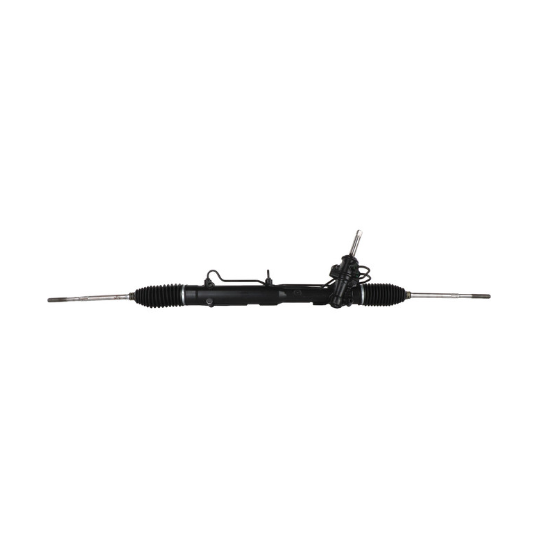

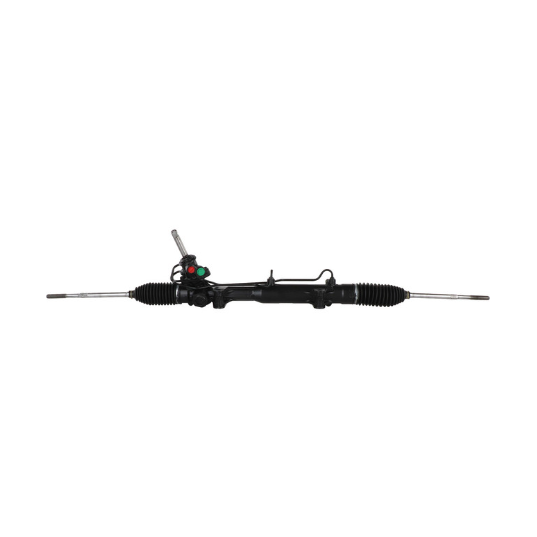

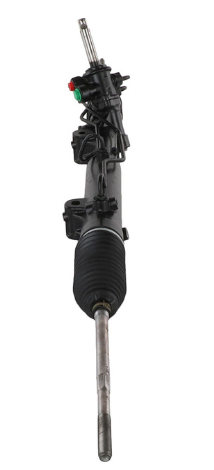

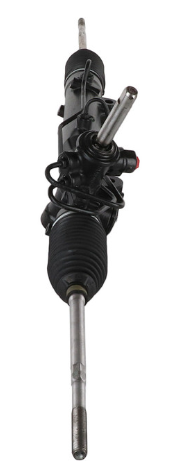

The CARDONE 22-3084 Remanufactured Rack & Pinion Assembly is built to restore original steering performance and reliability. Each unit is precision-engineered and fully tested to meet or exceed O.E. specifications. Every component is cleaned, inspected, and replaced as necessary, using 100% new O.E.-style seals and O-rings to ensure leak-free and long-lasting operation.
A protective anti-corrosion coating enhances durability and lifespan, while 100% hydraulic testing verifies flow, pressure, and performance before it leaves the factory. CARDONE’s remanufacturing process not only ensures like-new functionality but also reduces the energy and raw material requirements by up to 80% compared to new production — making it an eco-conscious, high-quality steering solution.
Key Features and Benefits
-
100% O.E.-style seals and O-rings provide leak-free, long-lasting performance.
-
Fully pressure, flow, and performance tested for consistent steering feel.
-
Precision-machined surfaces prevent internal fluid leaks and extend service life.
-
Protective coating resists corrosion and environmental wear.
-
Micro-polished valve housings deliver smooth steering response and durability.
-
Environmentally responsible remanufacturing process saves up to 80% energy and material.
-
Direct-fit design ensures perfect vehicle compatibility and easy installation.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.8125 |
| End-to-End Length |
52.25 in / 1327.15 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
0.744 in / 18.89 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Chrysler: 5151705AB, 5151705AC, 5151705AD, 5151705AE, 5151705AF, 5151790AB, 5151790AC, 5151790AD
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the hydraulic system, and refill using OE-specified fluid before installation.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2011–2016 |
Chrysler |
Town & Country |
3.6L |
With Hydraulic Power |
| 2020–2021 |
Chrysler |
Voyager |
3.6L |
With Hydraulic Power |
| 2011–2020 |
Dodge |
Grand Caravan |
3.6L |
With Hydraulic Power |
| 2012–2015 |
Ram |
C/V |
3.6L |
With Hydraulic Power |
