Product Description

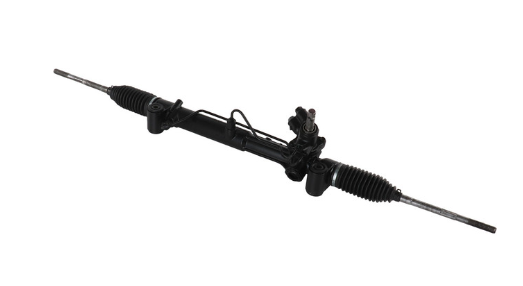

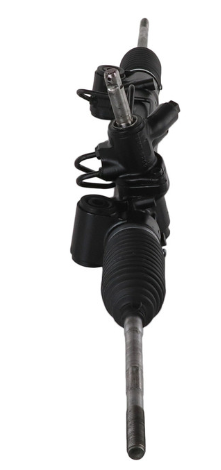

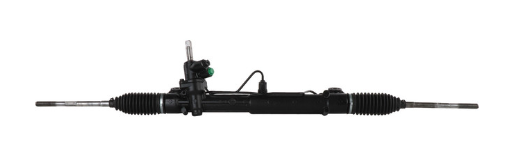

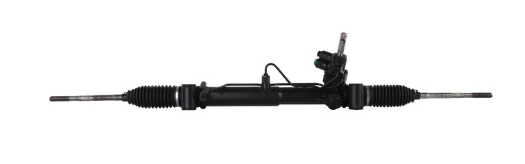

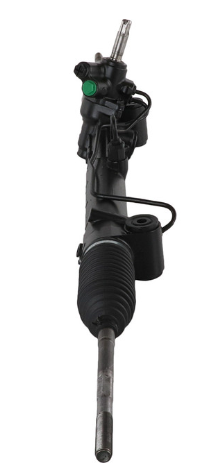

The CARDONE 22-3082 Remanufactured Rack and Pinion Assembly restores precise steering performance for Chrysler 300, Dodge Challenger, and Dodge Charger applications. Each unit is completely remanufactured to OE specifications, ensuring leak-free operation, proper hydraulic assist, and consistent steering feel.
All internal seals—including OE-style O-rings, lip seals, spool valve seals, and rack donut seals—are replaced with brand-new components to eliminate internal fluid leakage. Rack surfaces are precision-machined to maintain accurate chamber separation and prevent pressure loss. Every unit undergoes complete hydraulic and performance testing to confirm correct flow, steering effort, leak integrity, and overall functionality.
Polished micro-finish valve sleeves increase durability where applicable, and a protective external coating helps guard the assembly from corrosion. As a remanufactured OE unit, the 22-3082 offers a direct bolt-on fit and maintains proper steering geometry. CARDONE’s eco-conscious remanufacturing process also reduces raw material and energy usage by up to 80%.
Key Features
-
Protective corrosion-resistant coating applied to all exposed surfaces
-
100% performance tested for proper steering effort, flow, and fit
-
100% hydraulic testing ensures correct pressure and leak-free operation
-
Precision-machined rack surfaces prevent chamber cross-leakage
-

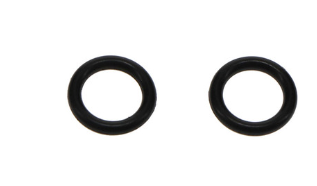

New OE-style O-rings, lip seals, spool valve seals, and rack donut seals
-
Polished micro-finish valve sleeves improve long-term durability (where applicable)
-
OE-remanufactured unit ensures exact fitment and restored steering performance
-
Eco-friendly reman process reduces energy and material use by up to 80%
Technical Specifications
| Specification |
Detail |
| Bellows Color |
Black |
| End to End Length |
1276.35 mm / 50.25 in |
| Gasket or Seal Included |
Yes |
| Grade Type |
Regular |
| Inlet Line Fitting Diameter |
17.83 mm / 0.702 in |
| Inlet Line Fitting Gender |
Male |
| Inner Tie Rods Included |
Yes |
| Input Shaft Type |
Double Flat |
| Mounting Brackets Included |
No |
| Mounting Hardware Included |
No |
| Mounting Hole Quantity |
2 |
| Outer Tie Rods Included |
No |
| Outlet Line Fitting Diameter |
11.66 mm / 0.459 in |
| Outlet Line Fitting Gender |
Male |
| Steering Input Shaft Diameter |
18.94 mm / 0.746 in |
| Total Turns Lock to Lock |
2.625 |
| Type |
Hydraulic |
OE Cross References
Chrysler:
4584568AF, 4584569AE, 4584571AD, 4584573AC, 4584573AD, 4584573AE, 4584573AF
Dodge:
4584571AB, 4584571AD, 4584573AB, 4584573AD, 4584573AE, 4584573AF
Vehicle Compatibility
(All applications listed include Inner Tie Rods and require Hydraulic Power Steering. For warranty protection, always install an in-line filter, perform a complete system flush, and use OE-specified fluid.)
Chrysler – 300 (RWD)
3.6L
5.7L
6.4L
Dodge – Challenger
3.6L
5.7L
6.4L
Dodge – Charger (RWD)
3.6L
5.7L
6.2L
6.4L
Installation & Warranty Notes
-
Always use OE-approved power steering fluid
-
Perform a complete power steering flush prior to installation
-
Install an in-line power steering filter to maintain warranty coverage
-
Inspect pump, hoses, reservoir, and lines for signs of contamination or wear
-
Do not reuse old or contaminated fluid
-
For Chrysler 300 applications, verify suspension sales codes (e.g., SDC) using the Body Code plate
