Product Description

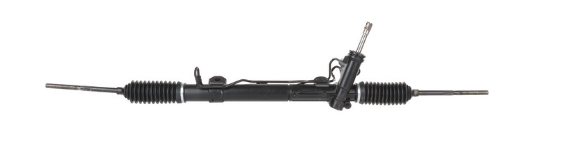

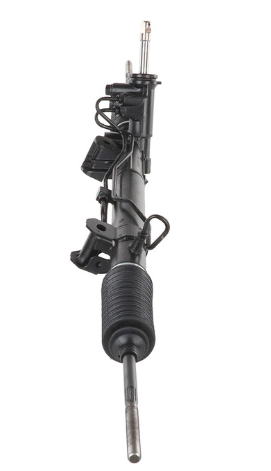

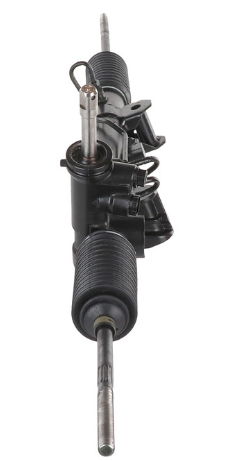

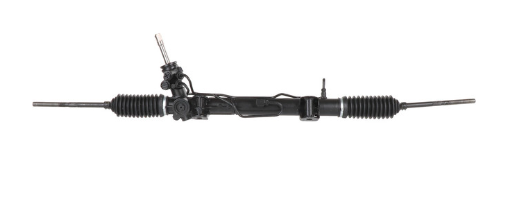

The CARDONE 22-3020 Remanufactured Rack & Pinion Assembly is engineered to restore the original performance, precision, and reliability of your vehicle’s steering system. Each unit is completely disassembled, cleaned, inspected, and rebuilt using premium-grade materials and advanced manufacturing processes.
Every rack undergoes 100% hydraulic testing for flow, pressure, and performance to ensure a perfect steering response. With new O.E.-style seals, O-rings, and lip seals, this assembly provides long-lasting, leak-free operation under all driving conditions. A protective corrosion-resistant coating adds durability, while precision machining prevents internal leaks and extends unit life.
The CARDONE remanufacturing process is eco-friendly, reducing raw material use and energy consumption by up to 80%, offering both superior performance and environmental responsibility.
Key Features and Benefits
-
100% O.E.-style O-rings, lip seals, and spool valve seals for leak-free performance.
-
Each unit is performance-tested to meet or exceed original factory standards.
-
Protective coating applied to prevent corrosion and extend product life.
-
Micro-finished valve housings ensure smooth and consistent steering response.
-
Precision-machined rack surfaces eliminate internal leaks and improve durability.
-
Environmentally responsible remanufacturing process reduces energy and material use by 80%.
-
Direct-fit design for easy installation and guaranteed compatibility.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.9375 |
| End-to-End Length |
47.625 in / 1209.67 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
0.625 in / 15.87 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Jeep: 5090004AC, 5090004AD, 5090004AF, 5105213AC, 5105213AD, 5105213AE, 5154517AB, 5154517AC, 6507629AA, 68059086AB, 68059086B
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a power steering filter, flush the hydraulic system, and refill using manufacturer-recommended OE fluid before installation.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
Drive |
| 2007–2010 |
Jeep |
Compass |
2.0L |
With 17" Wheels; Firm Feel Steering (SBB); With Hydraulic Power |
— |
| 2007–2010 |
Jeep |
Compass |
2.0L |
Standard Steering (SBA); With Hydraulic Power |
4WD |
| 2011–2016 |
Jeep |
Compass |
2.0L |
With Hydraulic Power; 15"–17" Wheels |
4WD |
| 2007–2010 |
Jeep |
Compass |
2.4L |
With 17" Wheels; Firm Feel Steering (SBB); With Hydraulic Power |
— |
| 2007–2010 |
Jeep |
Compass |
2.4L |
Standard Steering (SBA); With Hydraulic Power |
4WD |
| 2011–2016 |
Jeep |
Compass |
2.4L |
With Hydraulic Power; 15"–17" Wheels |
4WD |
| 2017 |
Jeep |
Compass |
2.4L |
With Hydraulic Power; Without 18" Wheels |
4WD |
| 2007–2010 |
Jeep |
Patriot |
2.0L |
With 17" Wheels; Firm Feel Steering (SBB); With Hydraulic Power |
— |
| 2007–2010 |
Jeep |
Patriot |
2.0L |
Standard Steering (SBA); With Hydraulic Power |
4WD |
| 2011–2017 |
Jeep |
Patriot |
2.0L |
With Hydraulic Power; 15"–17" Wheels |
4WD |
| 2007–2010 |
Jeep |
Patriot |
2.4L |
With 17" Wheels; Firm Feel Steering (SBB); With Hydraulic Power |
— |
| 2007–2010 |
Jeep |
Patriot |
2.4L |
Standard Steering (SBA); With Hydraulic Power |
4WD |
| 2011–2017 |
Jeep |
Patriot |
2.4L |
With Hydraulic Power; 15"–17" Wheels |
4WD |
