Product Description

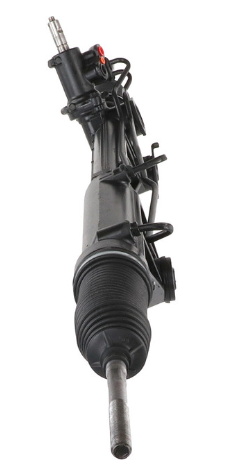

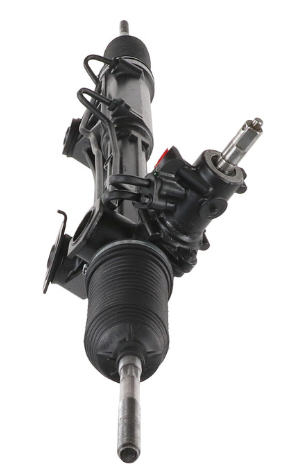

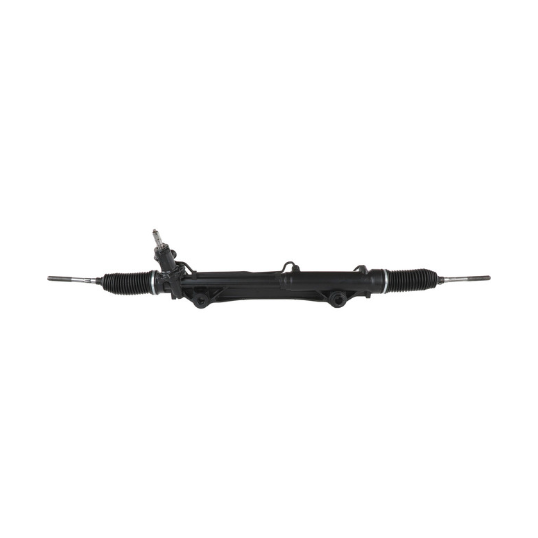

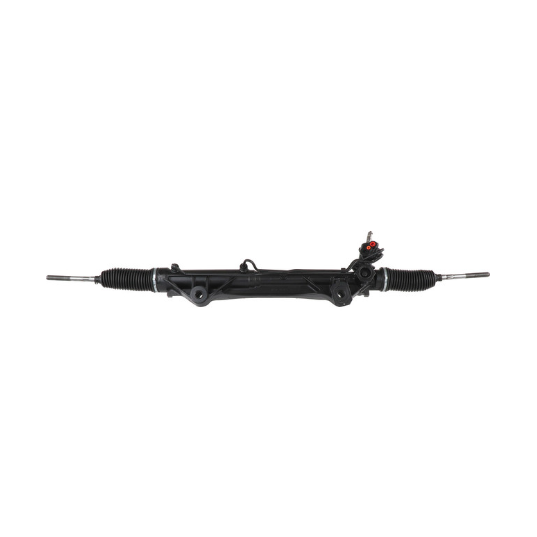

The CARDONE 22-297 Remanufactured Rack & Pinion Assembly delivers precise steering performance and long-lasting reliability by restoring your vehicle’s steering system to O.E. quality and specifications. Each unit is fully disassembled, cleaned, and rebuilt using top-grade materials and advanced processes to ensure a perfect fit and flawless function.
Every assembly undergoes 100% hydraulic testing to verify flow, pressure, and performance under real-world conditions. The use of new O.E.-style seals, O-rings, and lip seals guarantees leak-free operation and smooth steering response. Each unit receives a protective coating to guard against corrosion, while precision-machined components ensure long-term durability and performance.
CARDONE’s remanufacturing process not only ensures premium quality but also saves up to 80% in energy and raw materials compared to producing new parts — making it a smart, sustainable choice for both your vehicle and the environment.
Key Features and Benefits
-
100% O.E.-style O-rings and seals for long-lasting, leak-free operation.
-
Fully tested hydraulically to ensure proper flow, pressure, and steering performance.
-
Precision-surfaced racks prevent internal leakage and enhance service life.
-
Micro-finished valve housings ensure smooth steering control and reliability.
-
Protective anti-corrosion coating applied to extend lifespan.
-
Eco-friendly remanufacturing process reduces environmental impact by up to 80%.
-
Direct-fit design ensures perfect compatibility and easy installation.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.75 |
| End-to-End Length |
55.625 in / 1412.87 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.82 in / 20.82 mm |
| Inlet Line Fitting |
0.434 in / 11.02 mm, Male |
| Outlet Line Fitting |
0.352 in / 8.94 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: 7L1Z3280A, 7L1Z3504A, 8L1Z3504A
Lincoln: 7L1Z3280A, 7L1Z3504A, 8L1Z3504A
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty purposes, always install a steering filter, flush the hydraulic system, and refill with OE-specified fluid before installation.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2007–2008 |
Ford |
Expedition |
5.4L |
With Hydraulic Power |
| 2007–2008 |
Lincoln |
Navigator |
5.4L |
With Hydraulic Power |
