Product Description

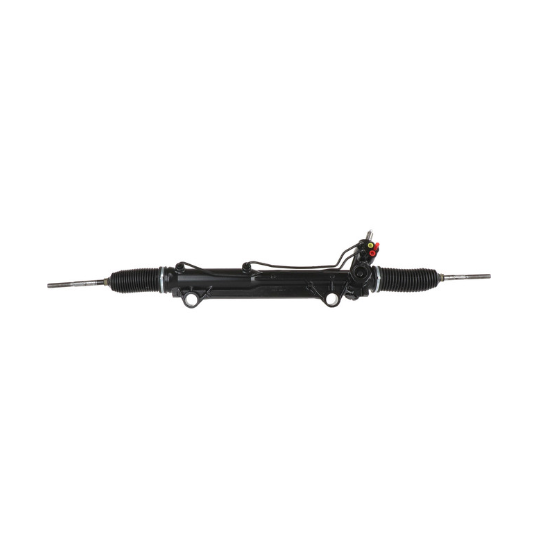

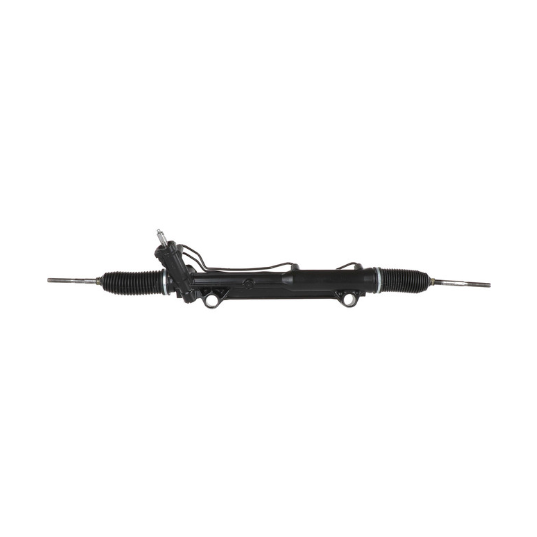

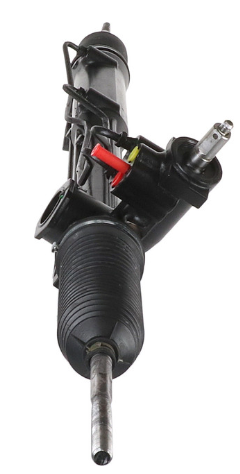

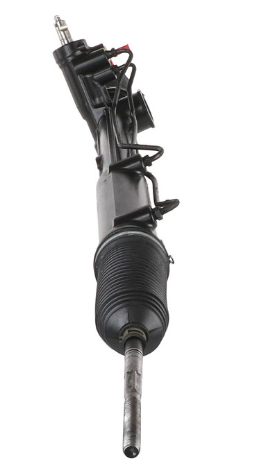

The CARDONE 22-292 Remanufactured Rack & Pinion Assembly provides the performance and precision of an original steering system at a fraction of the cost of a new part. Each unit is meticulously re-engineered, remanufactured, and 100% tested to ensure O.E.-level quality and reliability.
Featuring 100% new O.E.-style seals, O-rings, and lip seals, every rack is built for a leak-free, long-lasting steering experience. Each housing and rack surface is machined to exact specifications to prevent internal leakage, while a protective anti-corrosion coating extends product life.
Every assembly is hydraulically tested for proper flow, pressure, and steering response to guarantee perfect fit and function. CARDONE’s eco-conscious remanufacturing process reduces energy and raw material use by up to 80%, maintaining superior performance with a smaller environmental footprint.
Key Features and Benefits
-
100% O.E.-style seals and O-rings installed for leak-free, long-term reliability.
-
Each unit is hydraulically and performance tested for proper function and steering feel.
-
Precision-surfaced components prevent internal leakage and extend service life.
-
Protective coating resists corrosion and enhances durability.
-
Environmentally friendly remanufacturing process saves up to 80% in energy and raw materials.
-
Direct O.E. fit ensures quick and easy installation.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.437 |
| End-to-End Length |
50.25 in / 1276.35 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.725 in / 18.41 mm |
| Inlet Line Fitting |
0.434 in / 11.02 mm, Male |
| Outlet Line Fitting |
0.352 in / 8.94 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Yes |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: 6L2Z3504AA, 7A2Z3504A, 7A2Z3504B, 7L2Z3280A, 7L2Z3504A, 7L2Z3504B, 8A2Z3504A, 8A2Z3504B, 8L2Z3504A, 8L2Z3504B
Mercury: 6L2Z3504AA, 7A2Z3504B, 7L2Z3280A, 7L2Z3504A, 7L2Z3504B, 8L2Z3504A, 8L2Z3504B
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a steering filter, flush the power steering system, and refill with manufacturer-recommended OE fluid prior to installation.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2006–2010 |
Ford |
Explorer |
4.0L |
With Hydraulic Power |
| 2006–2010 |
Ford |
Explorer |
4.6L |
With Hydraulic Power |
| 2007–2010 |
Ford |
Explorer Sport Trac |
4.0L |
With Hydraulic Power |
| 2007–2010 |
Ford |
Explorer Sport Trac |
4.6L |
With Hydraulic Power |
| 2006–2010 |
Mercury |
Mountaineer |
4.0L |
With Hydraulic Power |
| 2006–2010 |
Mercury |
Mountaineer |
4.6L |
With Hydraulic Power |
