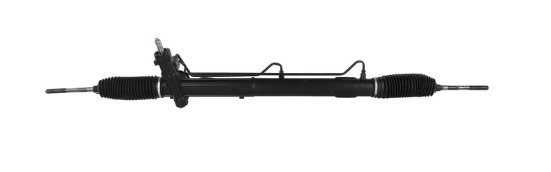

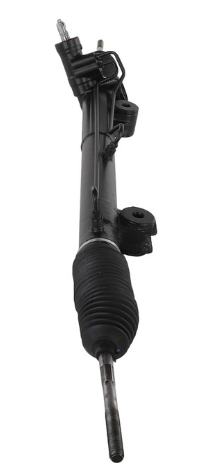

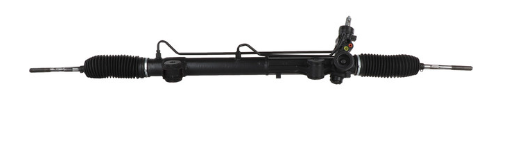

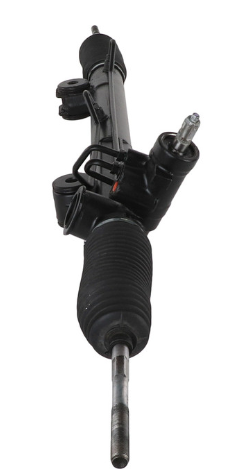

The CARDONE 22-279 Remanufactured Rack & Pinion Assembly delivers factory-quality steering performance through precision engineering and extensive testing. Each unit is completely remanufactured using new O.E.-style seals, O-rings, and bushings, ensuring long-lasting reliability and leak-free operation.
Every rack is hydraulically tested to confirm proper flow, pressure, and performance. Racks and housings are surfaced to prevent internal leakage and maintain smooth, consistent steering feel. A protective corrosion-resistant coating further enhances durability, while each valve housing is micro-polished for optimal longevity.
CARDONE’s environmentally responsible remanufacturing process reduces energy and raw material consumption by up to 80% compared to new production—all while maintaining original equipment quality, fit, and performance.
100% new O.E.-style seals and O-rings for leak-free, long-lasting performance.
Each rack undergoes full hydraulic and performance testing for proper function.
Precision-machined surfaces prevent internal leaks and ensure smooth operation.
Protective coating applied to resist corrosion and extend product life.
Direct-fit O.E. replacement for quick, trouble-free installation.
Eco-conscious remanufacturing reduces waste and resource use by up to 80%.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 3.875 |
| End-to-End Length | 57.75 in / 1466.85 mm |
| Bellows Color | Black |
| Input Shaft Type | Grooved |
| Steering Input Shaft Diameter | 0.812 in / 20.62 mm |
| Inlet Line Fitting | 0.434 in / 11.02 mm, Male |
| Outlet Line Fitting | 0.352 in / 8.94 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Not Included |
| Grade Type | Regular |
Ford: 4L3Z3280DA, 4L3Z3504BB, 4L3Z3504DB, 5L3Z3504FA, 5L3Z3504HA, 6L3Z3280B, 6L3Z3504BA, 6L3Z3504DA, 7L3Z3504B, 7L3Z3504D, 8L3Z3504B, 8L3Z3504D
Lincoln: 4L3Z3280DA, 5L3Z3504FA, 5L3Z3504HA, 6L3Z3280B, 6L3Z3504BA, 6L3Z3504DA, 7L3Z3504B, 8L3Z3504B
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty purposes, always install a steering filter, flush the hydraulic system, and use manufacturer-recommended OE fluid during installation.
| Year | Make | Model | Engine | Qualifier / Notes | Drive |
|---|---|---|---|---|---|
| 2004–2005, 2007–2008 | Ford | F-150 | 4.2L | With Hydraulic Power | 4WD |
| 2004–2008 | Ford | F-150 | 4.6L | With Hydraulic Power | 4WD |
| 2004–2008 | Ford | F-150 | 5.4L | With Hydraulic Power | 4WD |
| 2004–2008 | Ford | Lobo | 4.6L | With Hydraulic Power | 4WD |
| 2004–2008 | Ford | Lobo | 5.4L | With Hydraulic Power | 4WD |
| 2006–2008 | Lincoln | Mark LT | 5.4L | With Hydraulic Power | 4WD |
