Product Description

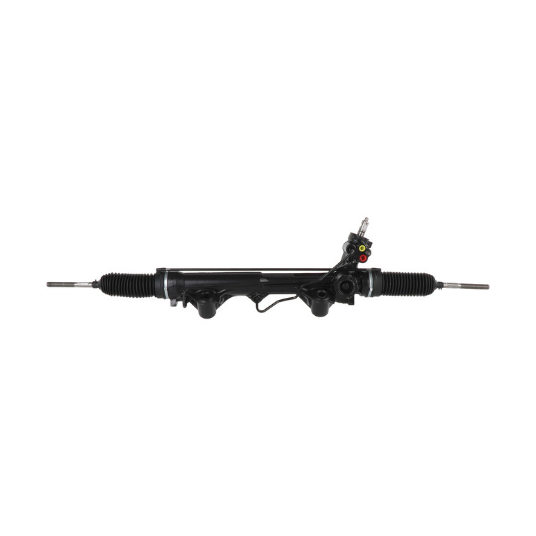

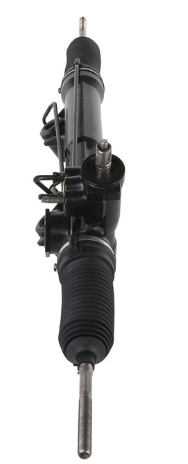

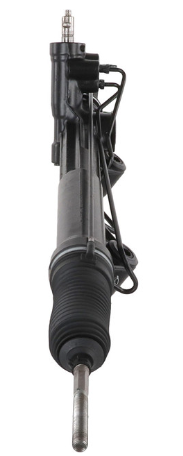

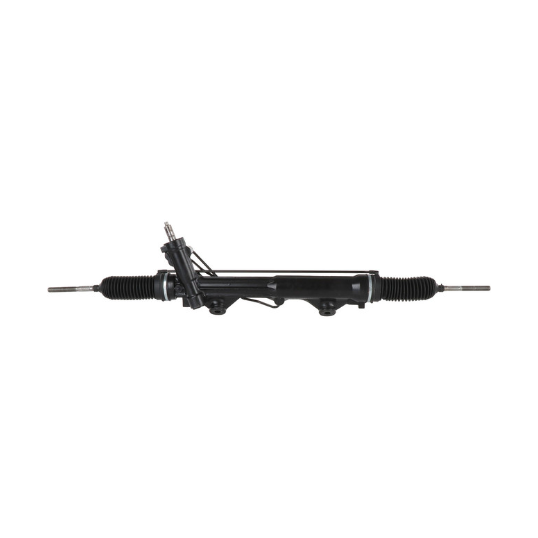

The CARDONE 22-257 Remanufactured Rack & Pinion Assembly is precision-engineered and fully tested to deliver O.E. steering performance and reliability. Each unit is completely disassembled, cleaned, and re-engineered using 100% new, O.E.-style seals, O-rings, and bushings to eliminate leaks and restore like-new operation.
Every rack is surfaced to tight tolerances to prevent internal leakage, finished with a durable anti-corrosion coating, and subjected to comprehensive hydraulic testing to ensure proper flow, pressure, and steering response. CARDONE’s process is also environmentally responsible—reducing energy and raw material use by up to 80% compared to new parts manufacturing.
Key Features and Benefits
-
Protective coating enhances corrosion resistance and extends service life.
-
100% new O.E.-style seals and O-rings for lasting, leak-free operation.
-
Precision-machined surfaces ensure consistent hydraulic performance.
-
Every unit fully tested for flow, pressure, and steering response.
-
Environmentally friendly remanufacturing reduces waste and material use.
-
Guaranteed direct-fit design for simple installation and factory-level performance.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.5 |
| End-to-End Length |
44.937 in / 1141.41 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.725 in / 18.41 mm |
| Inlet Line Fitting |
0.434 in / 11.02 mm, Male |
| Outlet Line Fitting |
0.352 in / 8.94 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: 1FAB32110B, 1L5Z3504EARM, 4L5Z3280AA, 4L5Z3504CA, 5L5Z3504CA, 6L5Z3504BA, 6L5Z3504CA, 7L5Z3504B, 7L5Z3504BB, 7L5Z3504BC, 7L5Z350AC, 8L5Z3504B, 9L5Z3280A, 9L5Z3504E, F57Z3280AA
Mazda: 1F2232110A, 1F8132110A, 1F8132110B, 1F8132110E, 1FAB32110R00, 4L5Z3504CA, 7L5Z3504B, 7L5Z350AC
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty compliance, always install a steering filter, flush the hydraulic system, and refill with manufacturer-recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
Body Type |
| 2001 |
Ford |
F-100 Ranger |
2.3L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001 |
Ford |
F-100 Ranger |
3.0L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2002 |
Ford |
Ranger |
— |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2011 |
Ford |
Ranger |
2.3L |
With Hydraulic Power |
Extended Cab Pickup |
| 2012 |
Ford |
Ranger |
2.3L |
With Hydraulic Power |
— |
| 2001 |
Ford |
Ranger |
2.5L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2008 |
Ford |
Ranger |
3.0L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2011 |
Ford |
Ranger |
4.0L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2007 |
Mazda |
B3000 |
3.0L |
With Hydraulic Power |
Extended Cab Pickup |
| 2001–2007, 2009 |
Mazda |
B4000 |
4.0L |
With Hydraulic Power |
Extended Cab Pickup |
