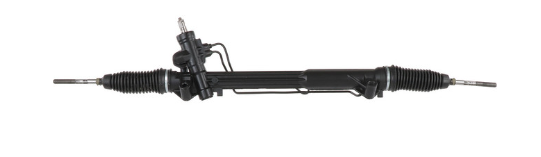

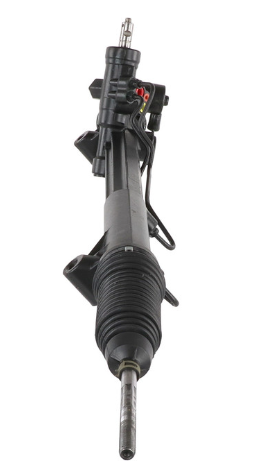

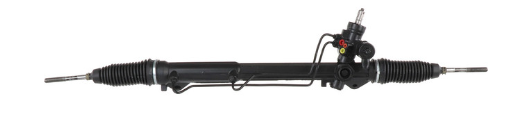

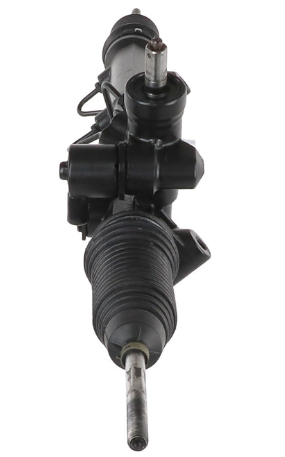

The CARDONE 22-249E Remanufactured Rack & Pinion Assembly is engineered and rigorously tested to restore factory steering precision and performance. Each unit is completely disassembled, cleaned, and rebuilt using 100% new, O.E.-style seals, O-rings, and bushings to ensure smooth, leak-free operation and long-term reliability.
Each housing receives a durable anti-corrosion coating for extended life and is hydraulically tested to confirm proper flow, pressure, and steering assist. CARDONE’s environmentally responsible remanufacturing process saves up to 80% in raw material and energy usage compared to new production—delivering premium performance while supporting sustainability.
100% new O.E.-style seals and O-rings ensure leak-free, long-lasting performance.
Protective coating extends the lifespan of the housing and internal components.
Fully tested for hydraulic flow, pressure, and steering response to guarantee O.E. performance.
Precision surfacing prevents internal leakage and ensures consistent steering assist.
Direct-fit design guarantees easy installation and perfect vehicle compatibility.
Environmentally friendly remanufacturing process conserves energy and resources.
| Specification | Detail |
|---|---|
| Type | Hydraulic |
| Total Turns (Lock-to-Lock) | 2.875 |
| End-to-End Length | 50 in / 1270 mm |
| Bellows Color | Black |
| Input Shaft Type | Grooved |
| Steering Input Shaft Diameter | 0.725 in / 18.41 mm |
| Inlet Line Fitting | 0.434 in / 11.02 mm, Male |
| Outlet Line Fitting | 0.352 in / 8.94 mm, Male |
| Gasket / Seal Included | Yes |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Mounting Brackets | Not Included |
| Mounting Hardware | Not Included |
| Grade Type | Regular |
Ford: 3W1Z3280BA, 3W1Z3504FARM, 5W1Z3504B, 6W1Z3504B, 7W1Z3504B
Mercury: 3W1Z3280BA, 3W1Z3504FARM, 5W1Z3504B, 6W1Z3504B, 7W1Z3504B
Lincoln: 3W1Z3280BA, 3W1Z3504FARM, 5W1Z3504B, 6W1Z3504B, 7W1Z3504B
Includes Inner Tie Rods | Hydraulic Power Steering | Supplied with Electronic Variable Orifice (EVO) Component
Installation Note:
For warranty compliance, always install a steering filter, flush the hydraulic system, and refill using the manufacturer-recommended OE fluid.
| Year | Make | Model | Engine | Qualifier / Notes | Body Type |
|---|---|---|---|---|---|
| 2003–2007 | Ford | Crown Victoria | 4.6L | With Hydraulic Power; Supplied with Electronic Variable Orifice (EVO) | — |
| 2003–2007 | Lincoln | Town Car | 4.6L | With Hydraulic Power; Supplied with Electronic Variable Orifice (EVO) | Limousine |
| 2003–2007 | Mercury | Grand Marquis | 4.6L | With Hydraulic Power; Supplied with Electronic Variable Orifice (EVO) | — |
| 2008 | Mercury | Grand Marquis | 4.6L | Before 01/01/2008; With Hydraulic Power; Supplied with EVO Component | — |
