Product Description

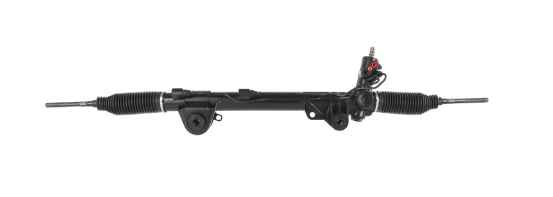

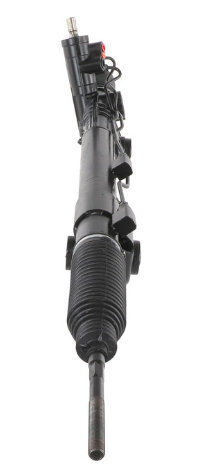

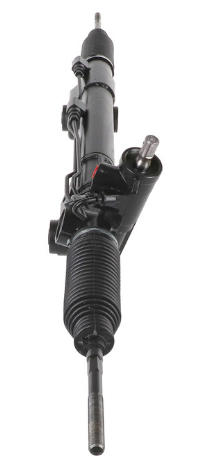

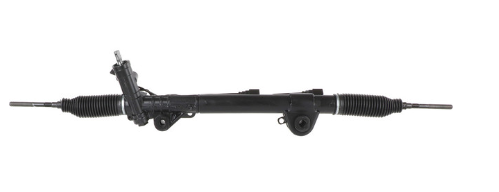

The CARDONE 22-2121 Remanufactured Rack & Pinion Assembly delivers O.E.-level performance and reliability through precision engineering and thorough quality control. Each unit is completely disassembled, cleaned, and reassembled using 100% new O.E.-style seals and O-rings for guaranteed leak-free performance.
A protective coating provides lasting corrosion resistance, while every rack undergoes 100% hydraulic and performance testing to ensure proper flow, pressure, and operation. This remanufactured unit matches O.E. specifications for fit, function, and durability—helping restore factory steering feel and response.
The eco-friendly remanufacturing process reduces energy and raw material consumption by up to 80% compared to new production.
Key Features and Benefits
-
Protective coating enhances corrosion resistance and durability.
-
100% performance and hydraulic testing guarantee consistent function and quality.
-
Precision-machined components eliminate internal fluid leaks.
-
New O.E.-style seals and O-rings ensure long-lasting, leak-free operation.
-
Environmentally conscious remanufacturing saves up to 80% in energy and material use.
-
Guaranteed direct-fit replacement with O.E.-equivalent performance.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.75 |
| End-to-End Length |
55.375 in / 1406.52 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.786 in / 19.96 mm |
| Inlet Line Fitting |
0.554 in / 14.07 mm, Male |
| Outlet Line Fitting |
0.435 in / 11.05 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets / Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: BL1Z3504A, CL3Z3504B
Lincoln: BL1Z3504A
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty coverage, always install a steering filter, flush the system, and use manufacturer-recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
Wheelbase (in) |
| 2011–2014 |
Ford |
Expedition |
5.4L |
With Hydraulic Power |
— |
| 2011 |
Ford |
F-150 |
3.5L |
With Hydraulic Power |
145.0 |
| 2011–2014 |
Ford |
F-150 |
3.5L |
With Hydraulic Power / Without Trailer Towing Package |
— |
| 2011 |
Ford |
F-150 |
3.7L |
With Hydraulic Power |
145.0 |
| 2011–2014 |
Ford |
F-150 |
3.7L |
With Hydraulic Power / Without Trailer Towing Package |
— |
| 2011 |
Ford |
F-150 |
5.0L |
With Hydraulic Power |
145.0 |
| 2011–2014 |
Ford |
F-150 |
5.0L |
With Hydraulic Power / Without Trailer Towing Package |
— |
| 2011–2012 |
Ford |
F-150 |
6.2L |
With Hydraulic Power |
— |
| 2011–2014 |
Ford |
F-150 |
6.2L |
With Hydraulic Power |
145.0 |
| 2011–2014 |
Ford |
F-150 |
6.2L |
With Hydraulic Power / Without Trailer Towing Package |
— |
| 2013–2014 |
Ford |
F-150 |
6.2L |
Without Heavy Duty Trailer Tow Package |
— |
| 2011–2014 |
Lincoln |
Navigator |
5.4L |
With Hydraulic Power |
— |
