Product Description

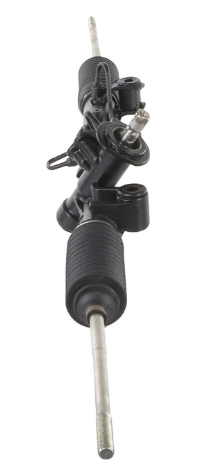

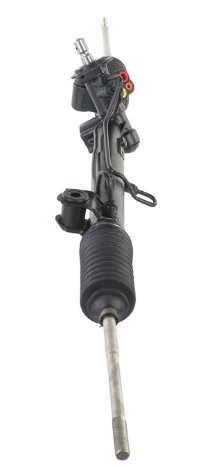

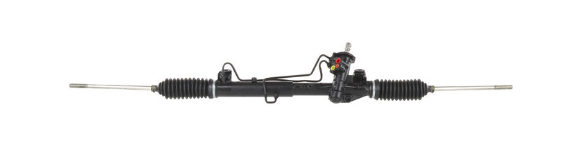

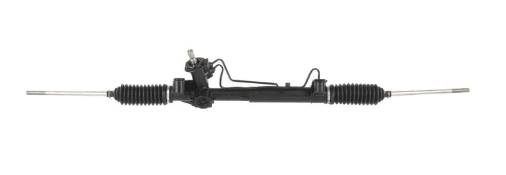

The CARDONE 22-2108 Remanufactured Rack & Pinion Assembly is designed and tested to deliver original equipment performance, fit, and reliability. Each unit is completely re-engineered, with all critical wear components replaced using 100% new O.E.-style O-rings and seals to ensure a leak-free and long-lasting steering system.
A corrosion-resistant protective coating extends the lifespan of the unit, while every assembly is hydraulically and performance tested to guarantee consistent flow, pressure, and operation.
As part of CARDONE’s eco-friendly remanufacturing process, this product reduces raw material and energy use by up to 80% compared to new production—without sacrificing performance or quality.
Key Features and Benefits
-
100% performance and hydraulic testing ensure perfect fit and function.
-
O.E.-style seals and O-rings guarantee leak-free, long-lasting reliability.
-
Precision surfacing prevents internal leakage and extends service life.
-
Protective coating resists corrosion and environmental wear.
-
All critical components inspected and replaced to meet or exceed O.E. specifications.
-
Environmentally responsible remanufacturing process saves energy and materials.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
2.75 |
| End-to-End Length |
50.938 in / 1293.82 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.745 in / 18.92 mm |
| Inlet Line Fitting |
0.702 in / 17.83 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
2 |
| Mounting Brackets / Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: 7T1Z3A500A
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note:
For warranty coverage, always install a steering filter, flush the hydraulic system, and use the recommended OE fluid.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2011–2012 |
Ford |
Transit Connect |
— |
With Hydraulic Power |
| 2010–2013 |
Ford |
Transit Connect |
2.0L |
With Hydraulic Power |
