Product Description

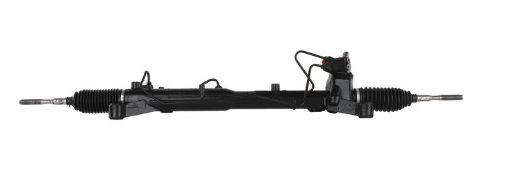

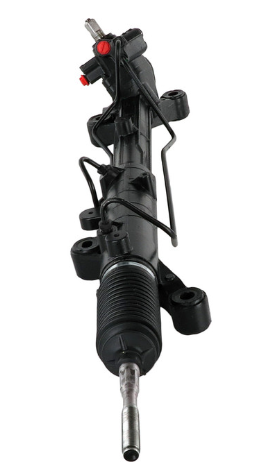

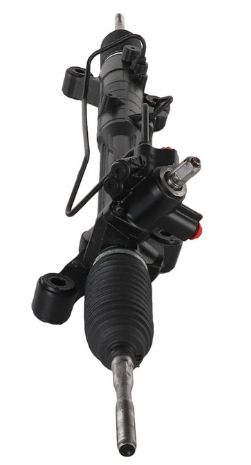

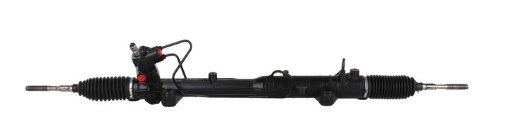

The CARDONE 22-2014 Remanufactured Rack & Pinion Assembly is precision-engineered to restore original steering performance and feel. Each unit undergoes complete disassembly, cleaning, inspection, and reassembly using 100% new O.E.-style seals, O-rings, and bushings to ensure leak-free, long-lasting hydraulic operation.
Every rack is subjected to comprehensive hydraulic and performance testing, verifying proper flow, pressure, and internal sealing. Finished with a durable anti-corrosion coating, this unit delivers dependable performance and long service life.
CARDONE’s remanufacturing process is also environmentally responsible, reducing energy and material usage by up to 80% compared to new part production.
Key Features and Benefits
-
100% tested for flow, leakage, and performance to ensure reliability.
-
Direct-fit replacement that restores original steering feel.
-
New O-rings and seals guarantee leak-free, long-term performance.
-
Protective coating prevents corrosion and extends product life.
-
Environmentally friendly remanufacturing process saves energy and resources.
-
Includes inner tie rods for a complete installation.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns (Lock-to-Lock) |
3.0625 |
| End-to-End Length |
47.125 in / 1196.97 mm |
| Bellows Color |
Black |
| Input Shaft Type |
Grooved |
| Steering Input Shaft Diameter |
0.75 in / 19.05 mm |
| Inlet Line Fitting |
0.546 in / 13.87 mm, Male |
| Outlet Line Fitting |
0.459 in / 11.66 mm, Male |
| Gasket / Seal Included |
Yes |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Hole Quantity |
4 |
| Mounting Brackets / Hardware |
Not Included |
| Grade Type |
Regular |
OE Cross-Reference Numbers
Ford: 7A1Z3504A, 7T4Z3280A, 7T4Z3504A, 8A1Z3504A, 9A1Z3504A, 9T4Z3504B, 9T4Z3504E, BT4Z3504A
Lincoln: 7A1Z3504A, 7T4Z3280A, 9A1Z3504A, 9T4Z3504B, BT4Z3504A
Vehicle Fitment
Includes Inner Tie Rods | Hydraulic Power Steering
Installation Note: For warranty purposes, always install a steering filter, use OE-specified fluid, and flush the system before installation.
| Year |
Make |
Model |
Engine |
Qualifier / Notes |
| 2012–2014 |
Ford |
Edge |
2.0L |
With Hydraulic Power; with 17", 18", or 20" Wheels |
| 2009–2010 |
Ford |
Edge |
3.5L |
With 20" Wheels; with Hydraulic Power |
| 2007–2008 |
Ford |
Edge |
3.5L |
With Hydraulic Power |
| 2011–2014 |
Ford |
Edge |
3.5L |
With Hydraulic Power; with 17", 18", or 20" Wheels |
| 2011–2014 |
Ford |
Edge |
3.7L |
With Hydraulic Power; with 17", 18", or 20" Wheels |
| 2009 |
Lincoln |
MKX |
3.5L |
With 20" Wheels; with Hydraulic Power |
| 2007–2008, 2010 |
Lincoln |
MKX |
3.5L |
With Hydraulic Power |
| 2011–2015 |
Lincoln |
MKX |
3.7L |
With Hydraulic Power; with 17", 18", or 20" Wheels |
