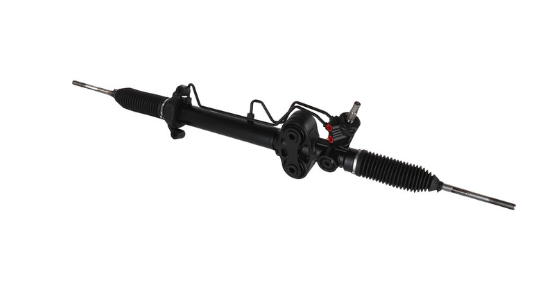

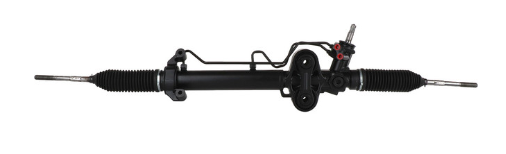

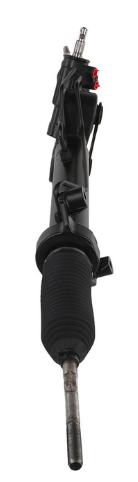

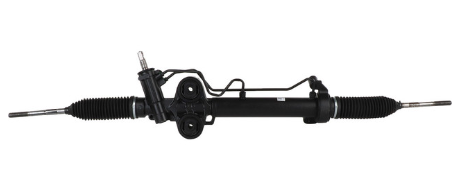

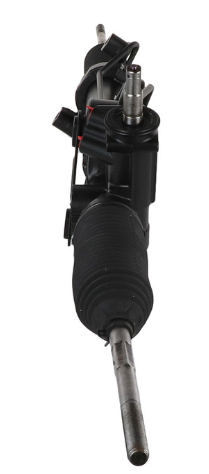

The CARDONE 22-1145 Remanufactured Rack and Pinion Assembly is engineered to deliver OE-level steering precision and long-term durability for full-size GM SUVs and trucks. Each unit is fully re-engineered and validated to meet or exceed original performance specifications, ensuring consistent hydraulic assist, precise steering feel, and dependable operation under heavy vehicle loads.
Every rack undergoes 100% hydraulic and performance testing to confirm correct flow, pressure, steering effort, and leak-free functionality. Critical sealing components—including OE-style O-rings, lip seals, spool valve seals, and rack donut seals—are replaced with brand-new components to eliminate internal leaks and prevent premature wear. Rack surfaces are precision-machined to maintain proper separation between hydraulic chambers, extending service life and maintaining consistent steering response.
Where applicable, valve housings feature polished micro-finish sleeves to enhance durability, and all units receive a protective external coating to guard against corrosion. As an OE-remanufactured part, the 22-1145 ensures a direct-fit installation and maintains factory steering geometry. CARDONE’s remanufacturing process also reduces environmental impact by using up to 80% less raw material and energy than producing a new rack.
Protective coating applied for extended corrosion resistance
100% performance tested for proper fit, function, and reliability
100% hydraulic testing validates flow, pressure, and leak integrity
Precision-surfaced racks prevent internal fluid bypass and extend service life
New OE-style O-rings, lip seals, spool valve seals, and rack donut seals eliminate internal leakage
Polished micro-finish valve sleeves (where applicable) enhance durability
OE-remanufactured unit ensures perfect fit and proper steering geometry
Eco-friendly manufacturing reduces material and energy usage by up to 80%
| Specification | Detail |
|---|---|
| Bellows Color | Black |
| End to End Length | 1393.82 mm / 54.875 in |
| Gasket or Seal Included | Yes |
| Grade Type | Regular |
| Inlet Line Fitting Diameter | 11.58 mm / 0.456 in |
| Inlet Line Fitting Gender | Male |
| Inner Tie Rods Included | Yes |
| Input Shaft Type | Double Flat |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outer Tie Rods Included | No |
| Outlet Line Fitting Diameter | 11.98 mm / 0.47 in |
| Outlet Line Fitting Gender | Male |
| Steering Input Shaft Diameter | 19.93 mm / 0.785 in |
| Total Turns Lock to Lock | 3.25 |
| Type | Hydraulic |
Chevrolet:
15254062, 19153072, 19207492
GMC:
15254062, 19153072, 19207492
Cadillac:
15254062, 19207492
(All applications listed include Inner Tie Rods and require Hydraulic Power Steering. For warranty protection, always install an in-line filter, flush the power steering system thoroughly, and use OE-specified fluid.)
Escalade – 6.0L
2009–2013
Escalade – 6.2L
2007–2014
Escalade ESV – 6.2L
2007–2014
Escalade EXT – 6.2L
2007–2013
Avalanche – 5.3L
2007–2013
Avalanche – 6.0L
2007–2009
Suburban – 5.3L
2014
Suburban 1500 – 5.3L
2007–2014
Suburban 1500 – 6.0L
2007–2009, 2011–2013
Tahoe – 4.8L
2007–2008
Tahoe – 5.3L
2007–2008, 2010–2014
Tahoe – 6.0L
2010–2013
Yukon – 4.8L
2007–2009
Yukon – 5.3L
2007–2014
Yukon – 6.0L
2008–2013
Yukon – 6.2L
2007–2014
Yukon XL 1500 – 5.3L
2007–2014
Yukon XL 1500 – 6.0L
2007–2009
Yukon XL 1500 – 6.2L
2007–2014
Always use OE-approved power steering fluid
Perform a complete system flush before installation
Install an in-line power steering filter to maintain warranty coverage
Inspect hoses, reservoir, and pump for contamination or deterioration
Do not reuse old or dirty fluid
Verify correct torque specifications for all fasteners
