Product Description

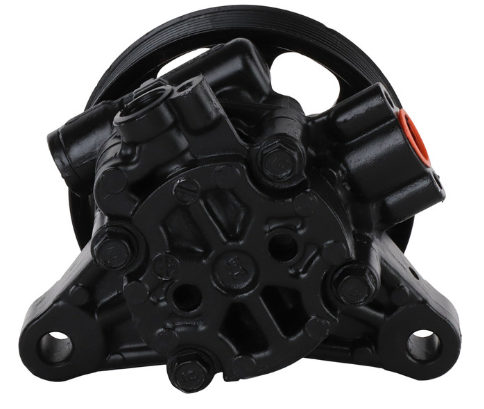

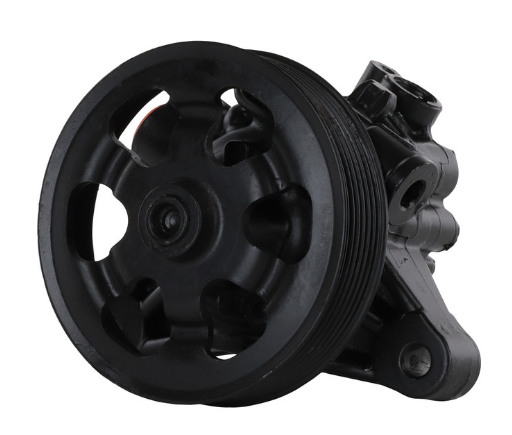

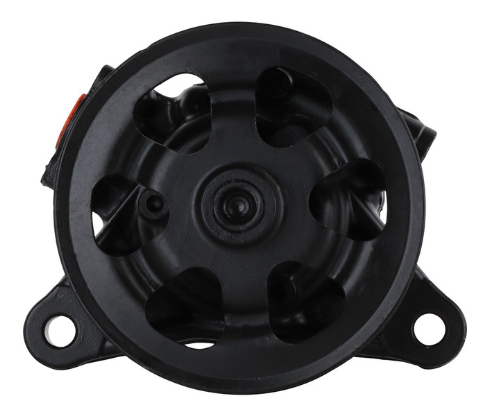

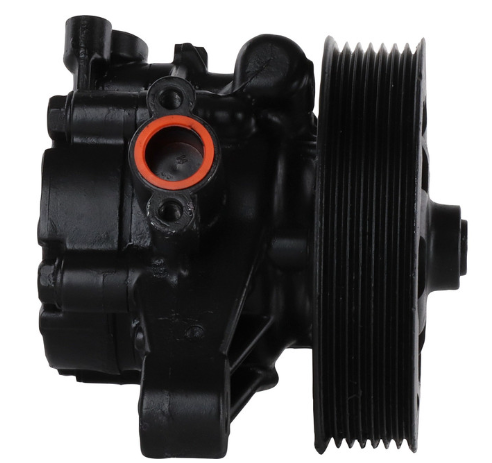

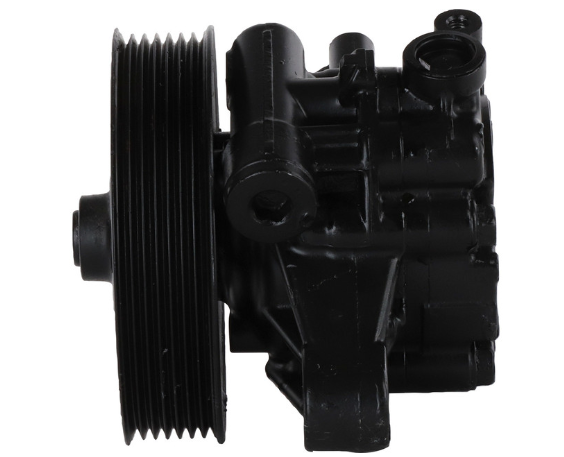

The CARDONE 21-5495 Remanufactured Power Steering Pump is meticulously re-engineered to meet or exceed O.E. performance standards. Every pump is completely disassembled, cleaned, and inspected, with any wear-prone components replaced or upgraded for enhanced durability.
Critical internal parts, such as cam packs and spool valves, are triple-tested for functionality, while each finished assembly undergoes a hydraulic efficiency test to ensure proper pressure, flow rate, and steering feel. Every pump is also computer-tested for noise, fluid bypass, and operating pressure to guarantee smooth, reliable performance.
Built with premium-grade HNBR seals, this pump delivers superior heat resistance and leak prevention under demanding conditions. CARDONE’s remanufacturing process not only restores OE-level performance but also conserves up to 80% of the energy and raw materials compared to new production.
Key Features & Benefits
-
OE Fit and Function: Direct replacement for factory steering pump.
-
Triple-Tested for Reliability: Ensures consistent pressure and leak-free performance.
-
Enhanced Durability: HNBR seals resist high heat and fluid degradation.
-
Precision-Machined Shafts: Prevent premature wear and ensure long service life.
-
Fully Calibrated Relief Valves: Consistent hydraulic performance and steering response.
-
Eco-Friendly Process: Uses up to 80% less energy and material than new part manufacturing.
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.707 in (17.96 mm) |
| Inlet Quantity |
1 |
| Outlet Attachment Type |
Bolt-On |
| Outlet Quantity |
1 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
Yes |
| Remote Reservoir |
Yes |
| Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
Original Equipment (OE) Numbers
Honda: 56100-R40-305, 56100-R40-325, 56100-R40-A02, 56100-R40-A03
Vehicle Compatibility
| Year Range |
Make |
Model |
Engine |
Qualifier |
| 2008–2012 |
Honda |
Accord |
2.4L |
Reservoir Not Included |
Important Note:
-
For warranty purposes, it is critical to always install a power steering filter, flush the system, and use only Honda/Acura Power Steering Fluid.
-
Failure to use OE-specified fluid may result in noise, poor performance, or pump failure.
-
In-line filter available separately.
Environmental Advantage
Remanufacturing this CARDONE unit reduces environmental impact by saving up to 80% of energy and materials compared to the production of a new power steering pump.
