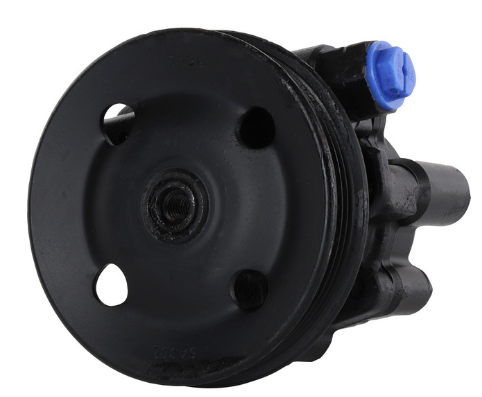

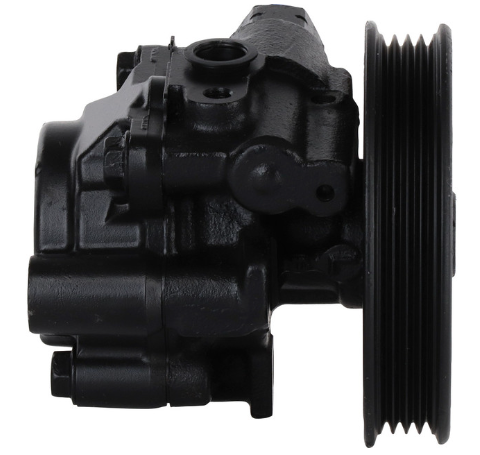

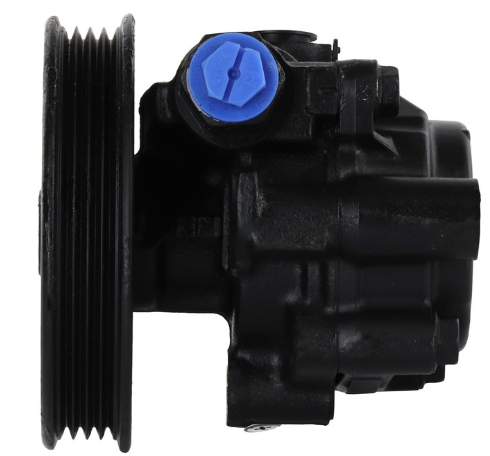

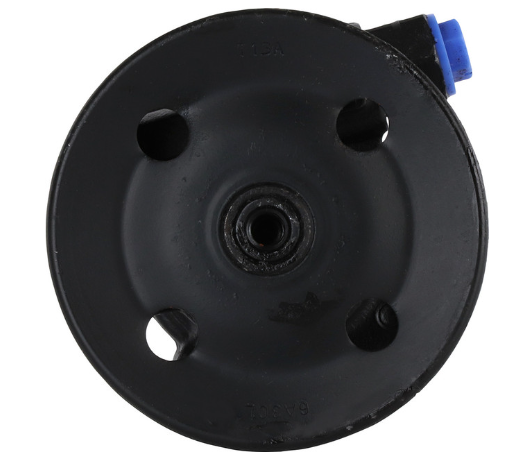

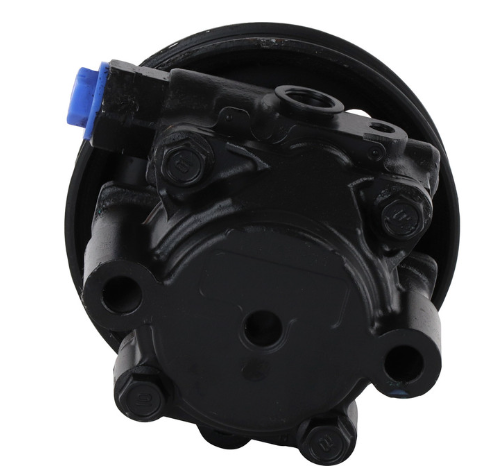

Product Description
The CARDONE 21-5287 Remanufactured Power Steering Pump is designed to restore factory steering performance while providing improved durability over the original equipment design. Each pump is meticulously inspected, upgraded where beneficial, and subjected to rigorous testing to ensure long-term reliability.

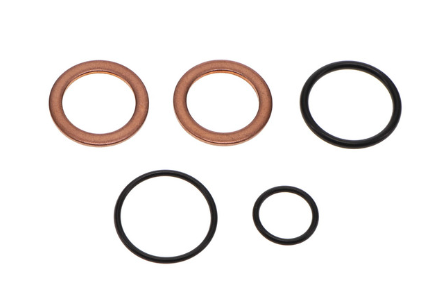

All internal components—such as campacs and spool valves—are triple-tested for precision and consistency. The pump features 100% new HNBR seals and O-rings, which deliver superior temperature resistance and leak protection compared to conventional sealing materials. A precisely machined shaft reduces friction and premature wear, enhancing pump longevity.
Every unit undergoes a complete hydraulic efficiency test, including flow, pressure, noise level, and steering effort evaluations. The remanufacturing process is environmentally responsible, reducing raw material consumption and energy usage by up to 80%.
Key Features
-
Triple-tested internal components to ensure dependable, OE-grade performance.
-
Premium HNBR seals prevent leaks and withstand high operating temperatures.
-
Precision-machined shaft minimizes wear and extends lifespan.
-
100% calibrated pressure relief valve ensures proper steering assist.
-
Comprehensive computer-based testing verifies pressure, flow, bypass function, and noise levels.
-
Direct-fit OE replacement designed for perfect vehicle fitment.
-
Eco-conscious remanufacturing significantly reduces environmental impact.
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
Seat |
| Housing Material |
Cast Iron/Aluminum |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.573 IN (14.5542 MM) |
| Inlet Quantity |
1 |
| Mounting Hardware Included |
No |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
Yes |
| Remote Reservoir |
Yes |
| Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Toyota: 4431006080
Lexus: 4431006080
Vehicle Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 2002–2003 |
Lexus |
ES300 |
3.0L |
Reservoir Not Included; Press-On Pulley; Install Filter & Use OE Fluid |
| 2004–2006 |
Lexus |
ES330 |
3.3L |
Reservoir Not Included; Press-On Pulley; Flush System Recommended |
| 2002–2006 |
Toyota |
Camry |
3.0L |
Reservoir Not Included; Press-On Pulley; Pump Stamped U13; Install Filter & Use OE Fluid |
Installation & Warranty Notes
-
Always flush the entire power steering system before installing the new pump.
-
Use the manufacturer-recommended power steering fluid only.
-
Installing an in-line filter is strongly recommended for pump longevity and warranty coverage.
-
Inspect hoses, clamps, and the reservoir for contamination or wear.
