Product Description

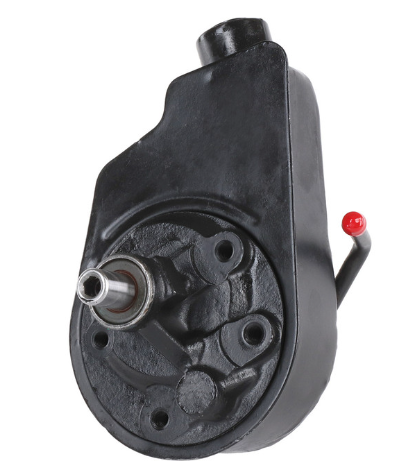

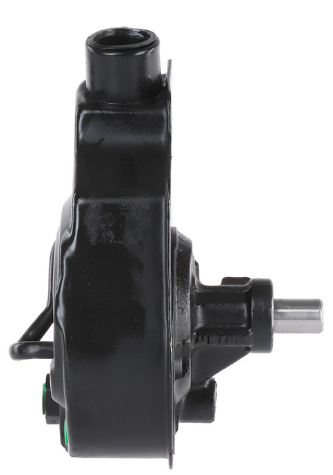

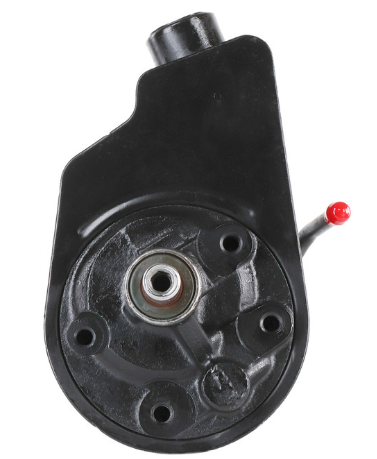

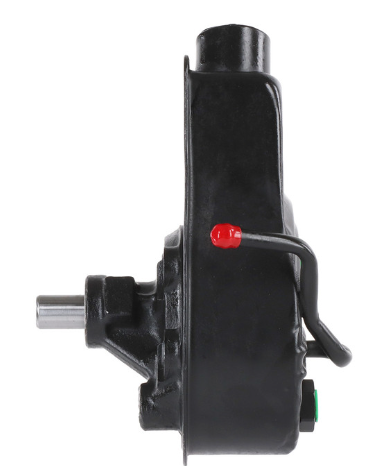

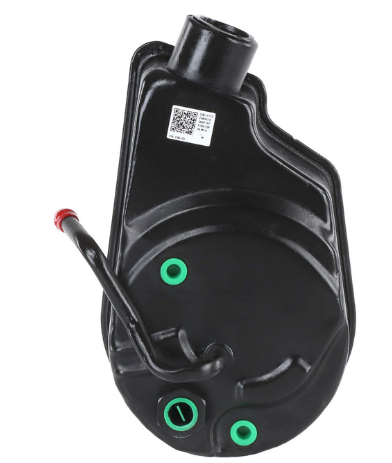

The CARDONE 20-8763 Remanufactured Power Steering Pump is engineered to restore original steering performance while improving durability beyond OE design. Each pump is fully disassembled, cleaned, inspected, and re-machined to eliminate common failure points. Critical internal components—including cam packs and spool valves—are triple-tested to ensure precise hydraulic output and consistent steering assist.
Premium-grade HNBR seals and 100% new O-rings prevent leaks while resisting high-temperature degradation. Shafts are precision-surfaced for extended seal life and smooth operation. Before shipment, each pump undergoes a complete hydraulic efficiency test to verify pressure, flow, bypass function, steering effort, and noise levels.
Environmentally responsible remanufacturing reduces energy and material usage by up to 80% compared to producing a new pump—delivering OE-quality performance with a reduced environmental footprint.
Key Features
-
Triple-tested cam packs and spool valves ensure consistent hydraulic performance.
-
100% new HNBR seals resist heat and fluid breakdown to prevent leaks.
-
Precision-machined pump shafts reduce friction and extend service life.
-
Calibrated pressure relief valves deliver correct steering assist in all driving conditions.
-
Computer-tested assemblies verify pressure, flow, noise, and steering effort.
-
Cast iron housing provides long-term durability in demanding truck applications.
-
Eco-friendly remanufacturing reduces waste and conserves up to 80% of raw materials.
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.423 IN (10.74 MM) |
| Inlet Quantity |
2 |
| Mounting Hardware Included |
No |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included |
Yes |
| Reservoir Cap Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Chevrolet: 15234823, 15909822, 20756712
GMC: 15909822, 20756712
Vehicle Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 2007–2013 |
Chevrolet |
Silverado 1500 |
4.3L |
Reservoir Included; Install Filter & Use OE Fluid; System Flush Required |
| 2007–2013 |
GMC |
Sierra 1500 |
4.3L |
Reservoir Included; Install Filter & Use OE Fluid; System Flush Required |
Installation & Warranty Notes
-
Always flush the steering system thoroughly before pump installation.
-
Use only manufacturer-recommended power steering fluid.
-
Installing an in-line filter is recommended to protect the pump and maintain warranty coverage.
-
Inspect hoses, clamps, brackets, and belt condition before installation.
-
Ensure the pulley is properly pressed on and aligned to avoid premature failure.
